What is the ABB 3GET162731-HDB?

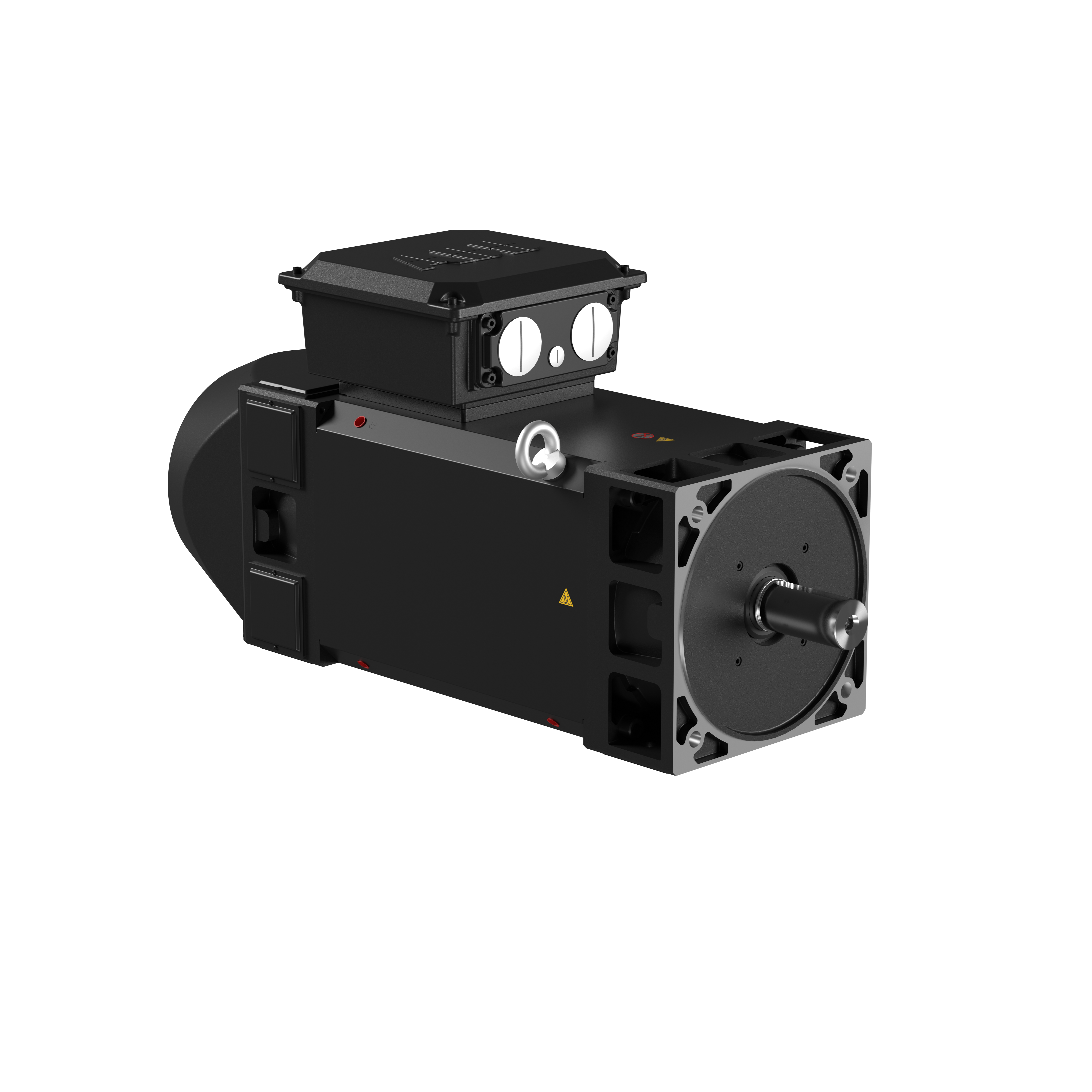

HDP Induction Motors, 30 kW, 400 V (3GET162731-HDB)

Specifications

Ordering

ABB Type Designation	M3ET 160C 4
Invoice Description	M3ET 160C 4
Product Name	High dynamic performance motors
Product Type	3ETB__M3ET__HDP__IP55_
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	30kW, 4P, Frame Size 160, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GET162731-HDB)
Short Description	30kW, 4P, Frame Size 160, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	330 V V
Operating Frequency (fsw)	34.200 Hz Hz
Output Power	30 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC416
IE Class Data (50 Hz)	IE Class IE1, Full Load (100%) 90.3 %, Partial Load (75%) 90.7 %, Partial Load (50%) 90.2 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 91.2 %, Partial Load (75%) 91.4 %, Partial Load (50%) 90.5 %
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	160
Bearing	6312-2Z
Bearing NDE	6312-2Z
IM Class	IMB35 IM2001
Terminator Box Location	N-End top

Dimensions

Product Net Depth / Length	939 mm mm
Product Net Height	483 mm mm
Product Net Width	316 mm mm
Product Net Weight	259 kg kg
Gross Weight	269 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
