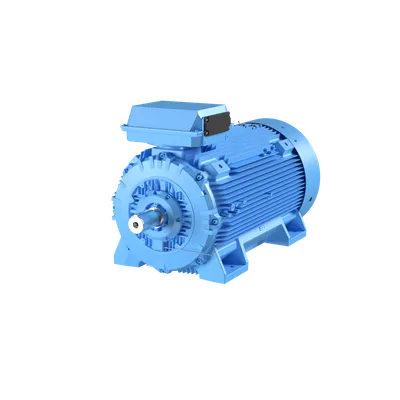

ABB 3GBP504530-AEM

MPN: 3GBP504530-AEM
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP504530-AEM?

IE4 Super Premium Efficiency Cast Iron Motors, 750 kW, 500 V (3GBP504530-AEM)

Specifications

Ordering

ABB Type Designation	M3BP 500LC 8
Invoice Description	M3BP 500LB 8
Product Name	3-Phase squirrel cage motor
Product Type	3BP4__M3BP_IE4_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015394
Medium Description	750kW, 8P, Frame Size 500, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP504530-AEM)
Short Description	750kW, 8P, Frame Size 500, 3PH, 500V, 50Hz, IP56, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	750 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE4, Full Load (100%) 95.4 %, Partial Load (75%) 95.4 %, Partial Load (50%) 94.6 %
IE Class Data (60 Hz)	IE Class IE4, Full Load (100%) 95.8 %, Partial Load (75%) 95.3 %, Partial Load (50%) 94.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	500
Bearing	6330M/C3
Bearing NDE	6326M/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	2426 mm mm
Product Net Height	1333 mm mm
Product Net Width	900 mm mm
Product Net Weight	6600 kg kg
Gross Weight	6640 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
