What is the ABB 3GBP406520-BUG?

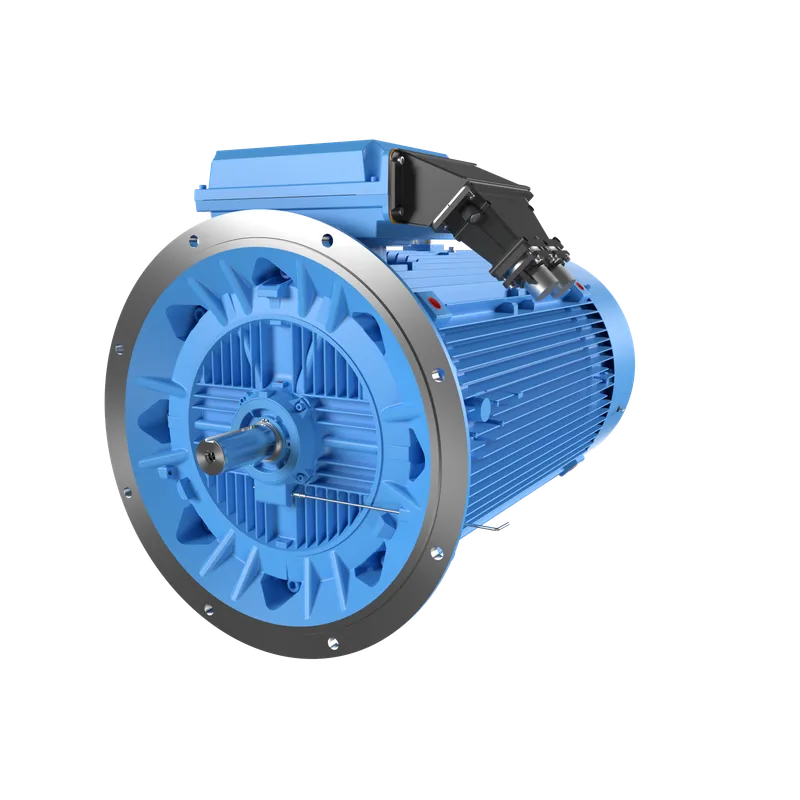

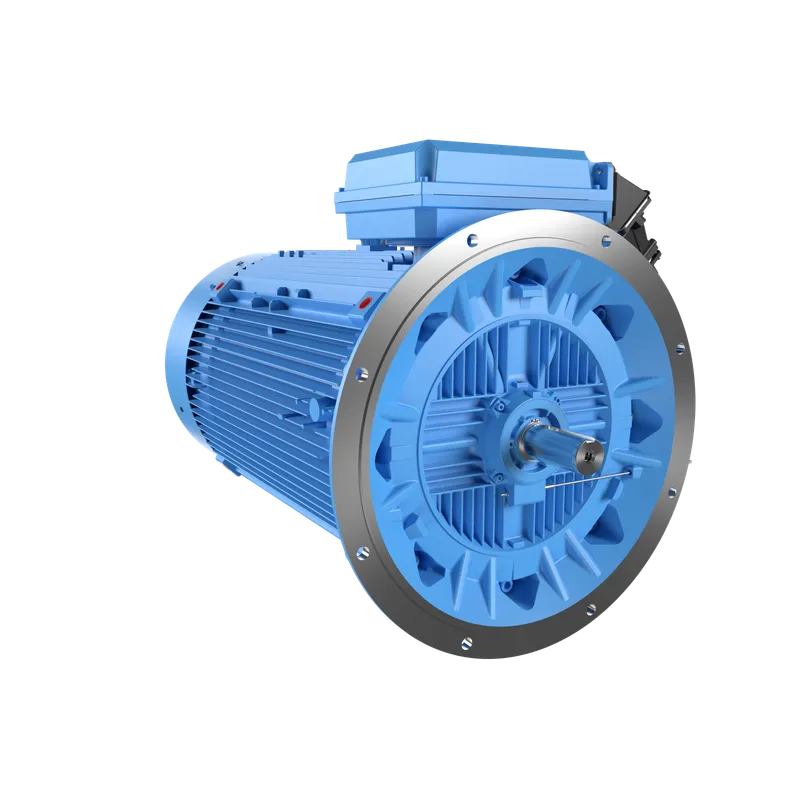

IE2 High Efficiency Cast Iron Motors, 200 kW, 690 V (3GBP406520-BUG)

Specifications

Ordering

ABB Type Designation	M3BP 400LB 12
Invoice Description	M3BP 400LB 12
Product Name	3-Phase squirrel cage motor
Product Type	3BP2__M3BP_IE2_CI
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015381
Medium Description	200kW, 12 Poles, Frame Size 400, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBP406520-BUG)
Short Description	200kW, 12P, Frame Size 400, 3PH, 690V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	690 V V
Frequency (f)	50 Hz Hz
Output Power	200 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	12
Two Speed Motor	No
Type of Duty	S1
Voltage Code	U

Mechanical

Frame Material	Cast Iron
Frame Size	400
Bearing	6324/C3
Bearing NDE	6319/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1891 mm mm
Product Net Height	1045 mm mm
Product Net Width	840 mm mm
Product Net Weight	3100 kg kg
Gross Weight	3140 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland

External Classifications and Standards

UNSPSC

26101100
