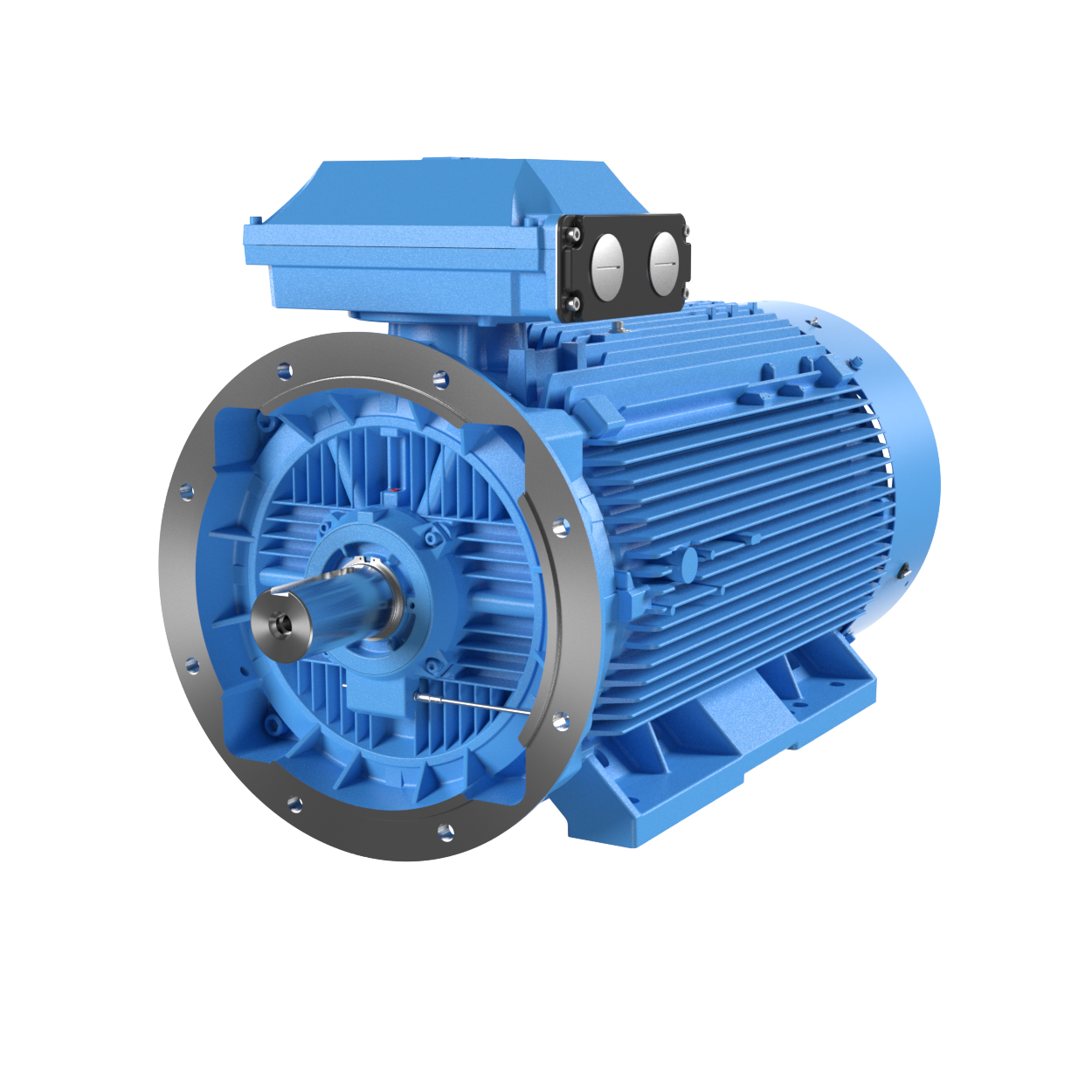

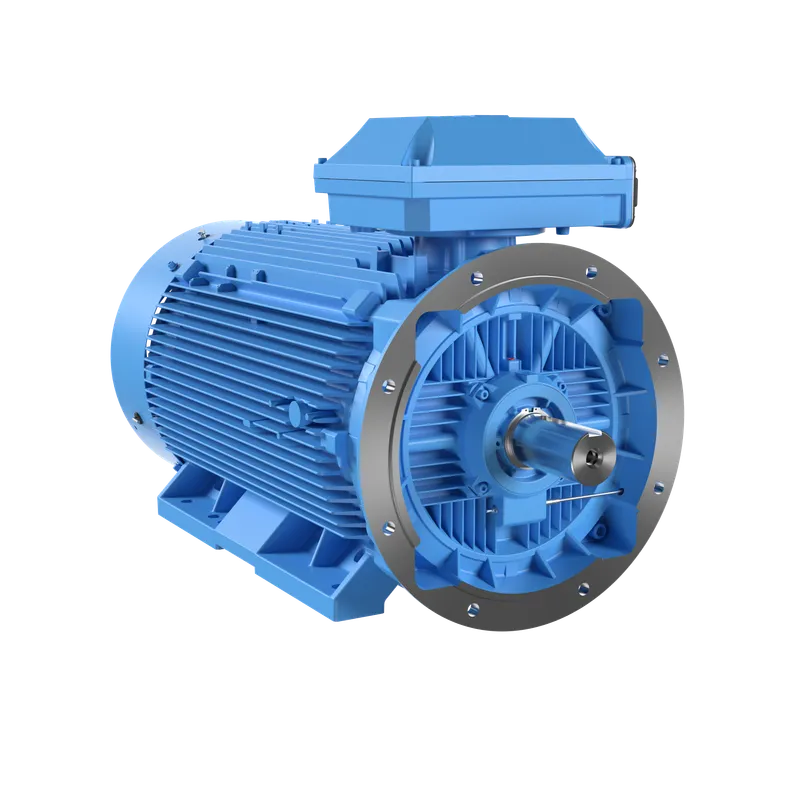

ABB 3GBP353230-HDK

M3BP 355SMC 6

MPN: 3GBP353230-HDK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP353230-HDK?

IE3 Premium Efficiency Cast Iron Motors, 200 kW, 400 V (3GBP353230-HDK)

Specifications

Ordering

ABB Type Designation	M3BP 355SMC 6
Invoice Description	M3BP 355SMC 6
Product Name	3-Phase squirrel cage motor
Product Type	3BP3__M3BP_IE3_CI
Country or Territory of Origin	Finland, India
Customs Tariff Number	85015381
Medium Description	200kW, 6 Poles, Frame Size 355, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBP353230-HDK)
Short Description	200kW, 6P, Frame Size 355, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	200 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.8 %, Partial Load (75%) 96.2 %, Partial Load (50%) 95.9 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 95.8 %, Partial Load (75%) 95.8 %, Partial Load (50%) 95.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	355
Bearing	6322/C3
Bearing NDE	6316/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1479 mm mm
Product Net Height	958 mm mm
Product Net Width	700 mm mm
Product Net Weight	1735.5 kg kg
Gross Weight	1765.5 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland

External Classifications and Standards

UNSPSC

26101100
