ABB 3GBP352220-AUG

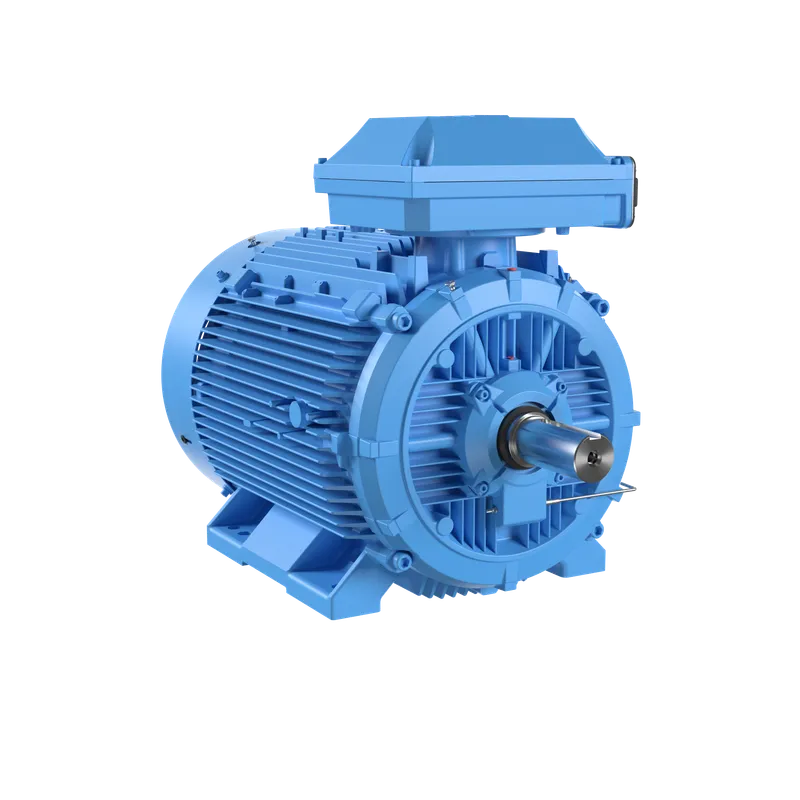

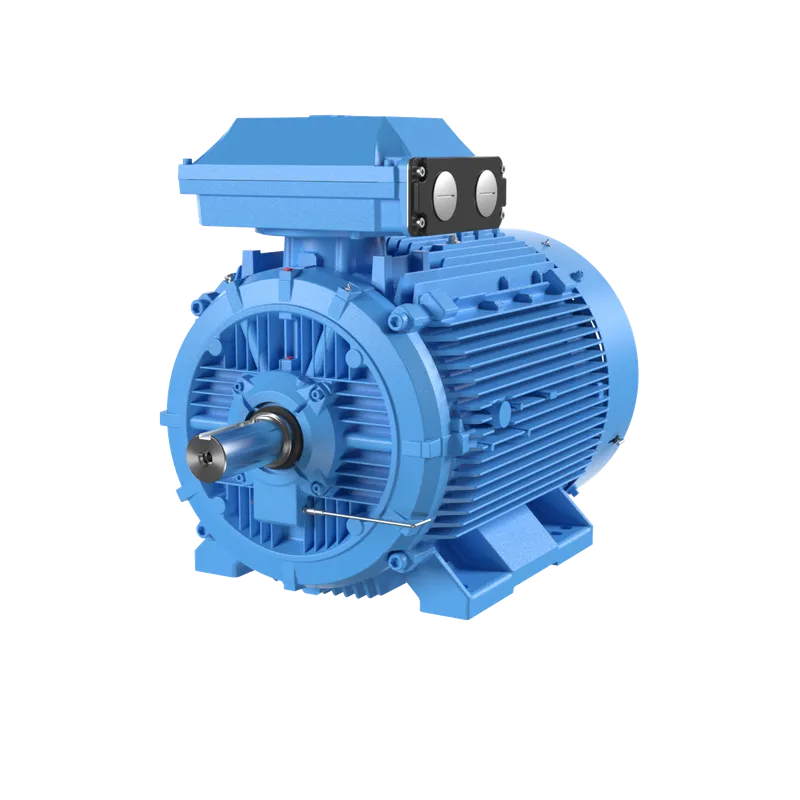

M3BP 355SMB 4

MPN: 3GBP352220-AUG
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP352220-AUG?

IE2 High Efficiency Cast Iron Motors, 315 kW, 690 V (3GBP352220-AUG)

Specifications

Ordering

ABB Type Designation	M3BP 355SMB 4
Invoice Description	M3BP 355SMB 4
Product Name	3-Phase squirrel cage motor
Product Type	3BP2__M3BP_IE2_CI
Country or Territory of Origin	Finland, China, Poland
Customs Tariff Number	85015381
Medium Description	315kW, 4 Poles, Frame Size 355, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP352220-AUG)
Short Description	315kW, 4P, Frame Size 355, 3PH, 690V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	690 V V
Frequency (f)	50 Hz Hz
Output Power	315 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 95.0 %, Partial Load (75%) 95.0 %, Partial Load (50%) 95.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	U

Mechanical

Frame Material	Cast Iron
Frame Size	355
Bearing	6322/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	1479 mm mm
Product Net Height	958 mm mm
Product Net Width	746 mm mm
Product Net Weight	1780 kg kg
Gross Weight	1810 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland

External Classifications and Standards

UNSPSC

26101100
