Home / ABB / ABB 3GBP222052-BDK

ABB

ABB 3GBP222052-BDK

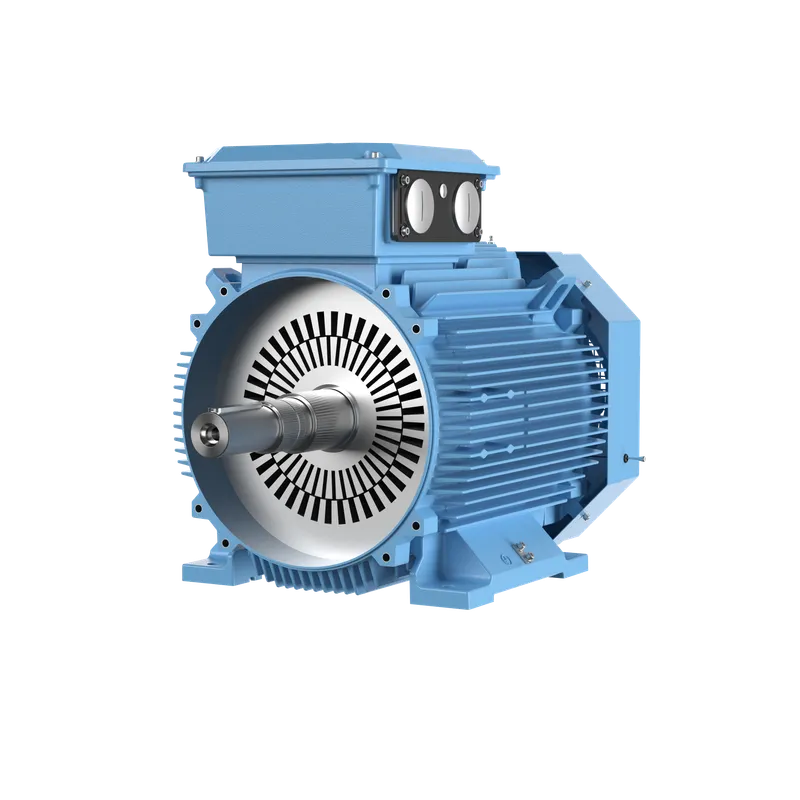

M3BP 225SMB 4

MPN: 3GBP222052-BDK

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP222052-BDK?

(3GBP222052-BDK)

Specifications

Ordering

ABB Type Designation	M3BP 225SMB 4
Product Name	3-Phase squirrel cage motor
Product Type	3BP3__M3BP_IE3_CI
Country or Territory of Origin	Finland, China, Sweden, Poland
Customs Tariff Number	85015290
Replaced Product ID (OLD)	3GBP222052-BDG

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.2 %, Partial Load (75%) 95.6 %, Partial Load (50%) 95.5 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 95.3 %, Partial Load (75%) 95.4 %, Partial Load (50%) 94.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	225
Bearing	6313/C3
Bearing NDE	6212/C3
IM Class	IMB5 IM3001

Dimensions

Product Net Weight	407 kg kg
Gross Weight	417 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
