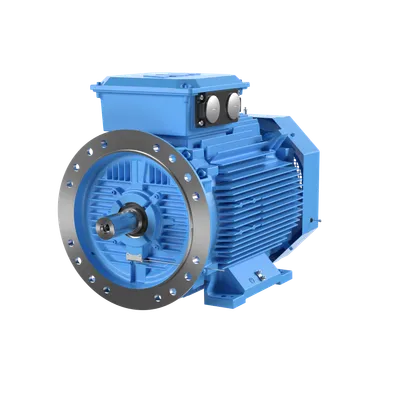

ABB 3GBP203420-BEM

M3BP 200MLB 6

MPN: 3GBP203420-BEM

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP203420-BEM?

22kW, 6 Poles, Frame Size 200, 3 Phases, 500V, 60Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBP203420-BEM)

Specifications

Ordering

ABB Type Designation	M3BP 200MLB 6
Invoice Description	M3BP 200MLB 6
Product Name	3-Phase squirrel cage motor
Product Type	3BP4__M3BP_IE4_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Short Description	22kW, 6P, Frame Size 200, 3PH, 500V, 60Hz, IP55, IMB5/IM3001

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE4, Full Load (100%) 93.7 %, Partial Load (75%) 94.1 %, Partial Load (50%) 93.9 %
IE Class Data (60 Hz)	IE Class IE4, Full Load (100%) 94.1 %, Partial Load (75%) 93.8 %, Partial Load (50%) 93.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	200
Bearing	6312/C3
Bearing NDE	6210/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	822 mm mm
Product Net Height	528 mm mm
Product Net Width	378 mm mm
Product Net Weight	306 kg kg
Gross Weight	316 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
