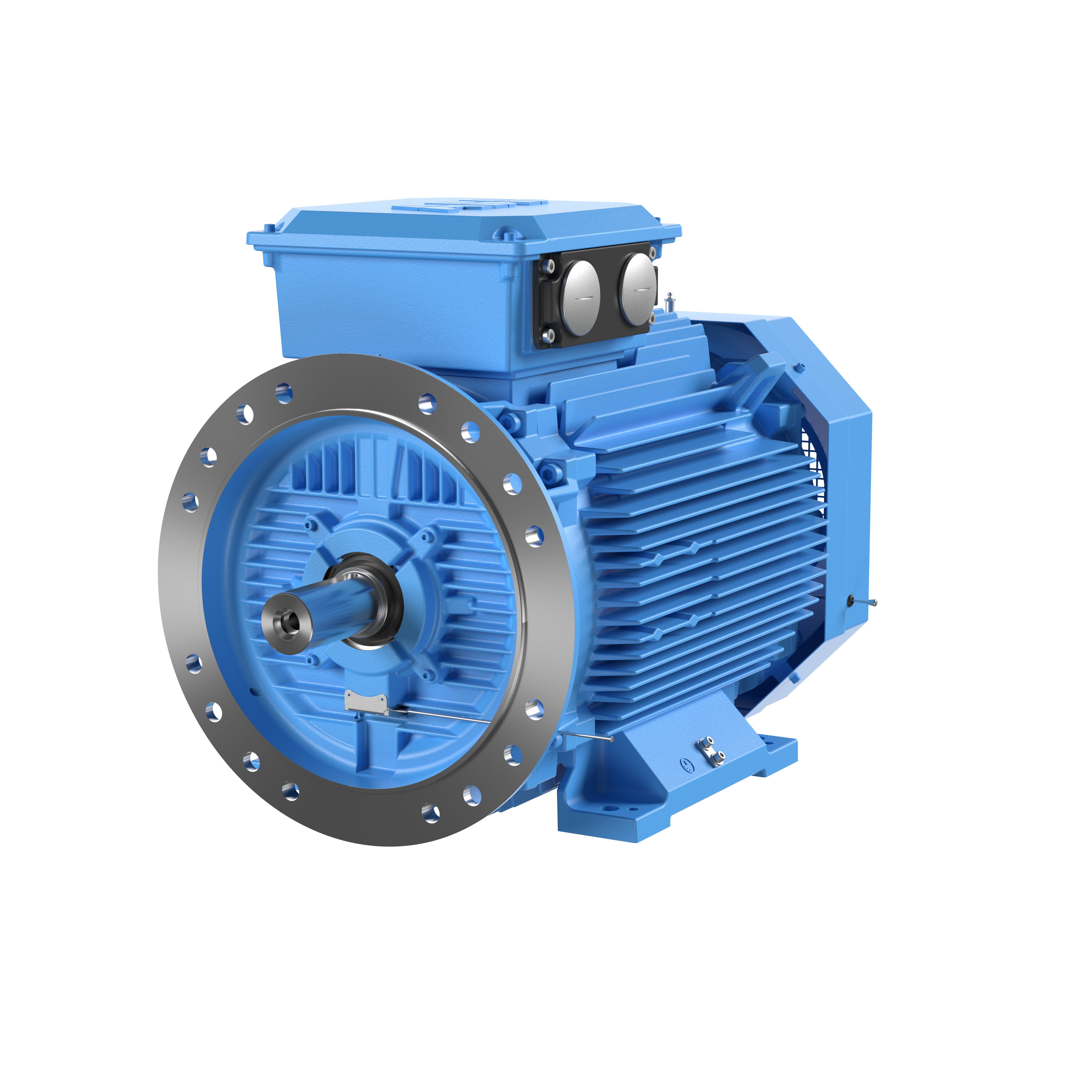

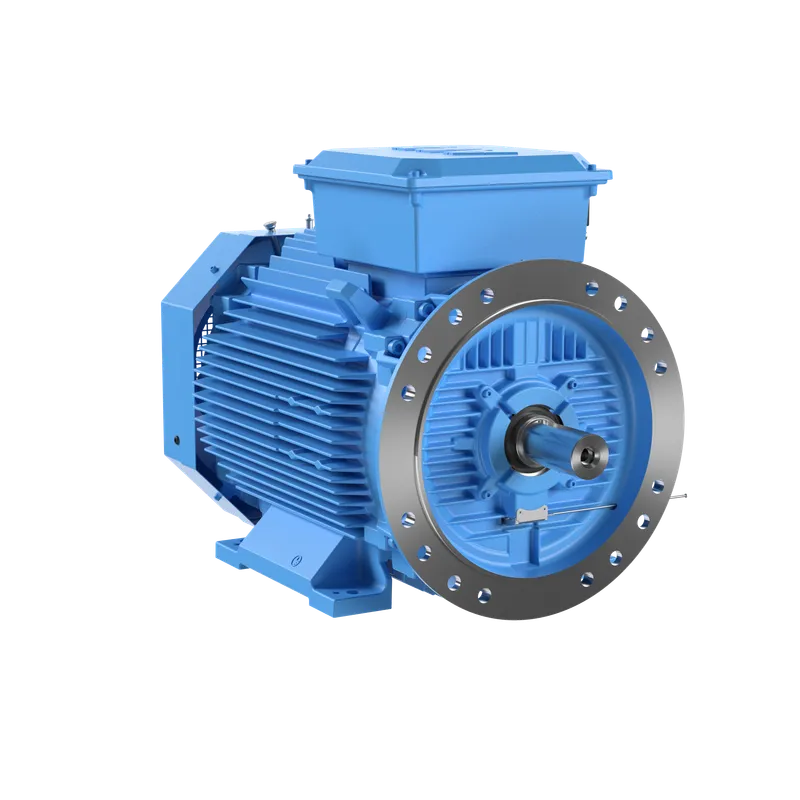

ABB 3GBP201410-HDK

M3BP 200MLA 2

MPN: 3GBP201410-HDK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP201410-HDK?

IE3 Premium Efficiency Cast Iron Motors, 30 kW, 400 V (3GBP201410-HDK)

Specifications

Ordering

ABB Type Designation	M3BP 200MLA 2
Invoice Description	M3BP 200MLA 2
Product Name	3-Phase squirrel cage motor
Product Type	3BP3__M3BP_IE3_CI
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015230
Medium Description	30kW, 2 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBP201410-HDK)
Short Description	30kW, 2P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	30 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 93.3 %, Partial Load (75%) 93.4 %, Partial Load (50%) 92.5 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 92.4 %, Partial Load (75%) 92.2 %, Partial Load (50%) 91.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	200
Bearing	6312/C3
Bearing NDE	6210/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	821 mm mm
Product Net Height	528 mm mm
Product Net Width	378 mm mm
Product Net Weight	289 kg kg
Gross Weight	299 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
