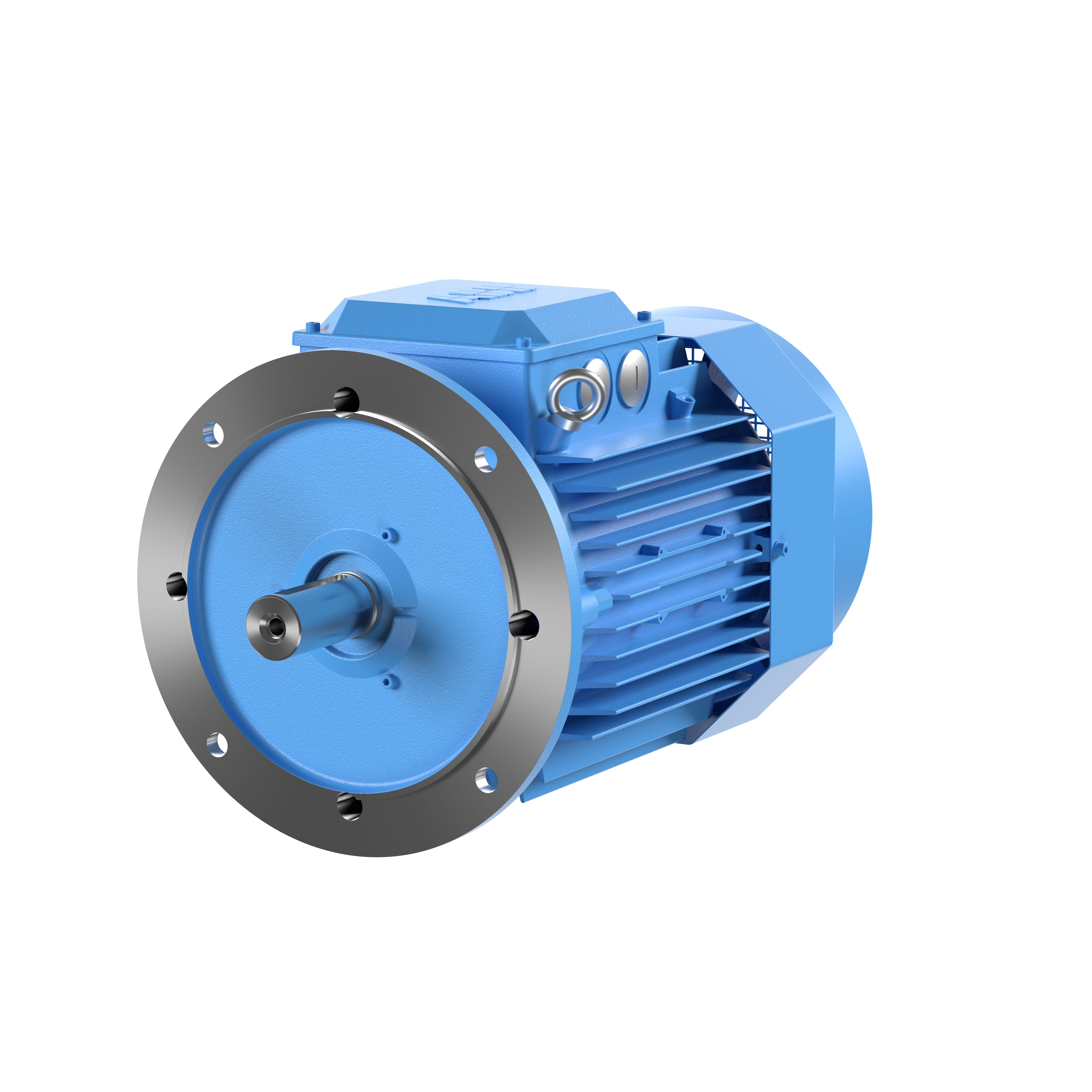

ABB 3GBP132323-BSB
M3BP 132SMC 4
- MPN
- 3GBP132323-BSB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GBP132323-BSB?
IE2 High Efficiency Cast Iron Motors, 7.5 kW, 400 V (3GBP132323-BSB)
Specifications
Ordering
| ABB Type Designation | M3BP 132SMC 4 |
| Invoice Description | M3BP 132SMC 4 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3BP2__M3BP_IE2_CI |
| Country or Territory of Origin | Spain, Finland, China, Poland |
| Customs Tariff Number | 85015220 |
| Medium Description | 7.5kW, 4 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBP132323-BSB) |
| Short Description | 7.5kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB5/IM3001 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 400 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 7.5 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2, Full Load (100%) 89.3 %, Partial Load (75%) 90.1 %, Partial Load (50%) 90.0 % |
| IE Class Data (60 Hz) | IE Class IE2, Full Load (100%) 89.5 %, Partial Load (75%) 90.1 %, Partial Load (50%) 88.5 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 132 |
| Bearing | 6208-2Z/C3 |
| Bearing NDE | 6208-2Z/C3 |
| Lubrication | For life |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | Top |
Dimensions
| Product Net Depth / Length | 533 mm mm |
| Product Net Height | 300 mm mm |
| Product Net Width | 271 mm mm |
| Product Net Weight | 73 kg kg |
| Gross Weight | 78 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | 54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland |
External Classifications and Standards
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
3GBP132323-BSB: frequently asked questions
When can 3GBP132323-BSB be shipped?
3GBP132323-BSB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GBP132323-BSB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GBP132323-BSB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBP132323-BSB, subject to availability and destination.
