ABB 3GBP114442-CHB
- MPN
- 3GBP114442-CHB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GBP114442-CHB?
(3GBP114442-CHB)
Specifications
Ordering

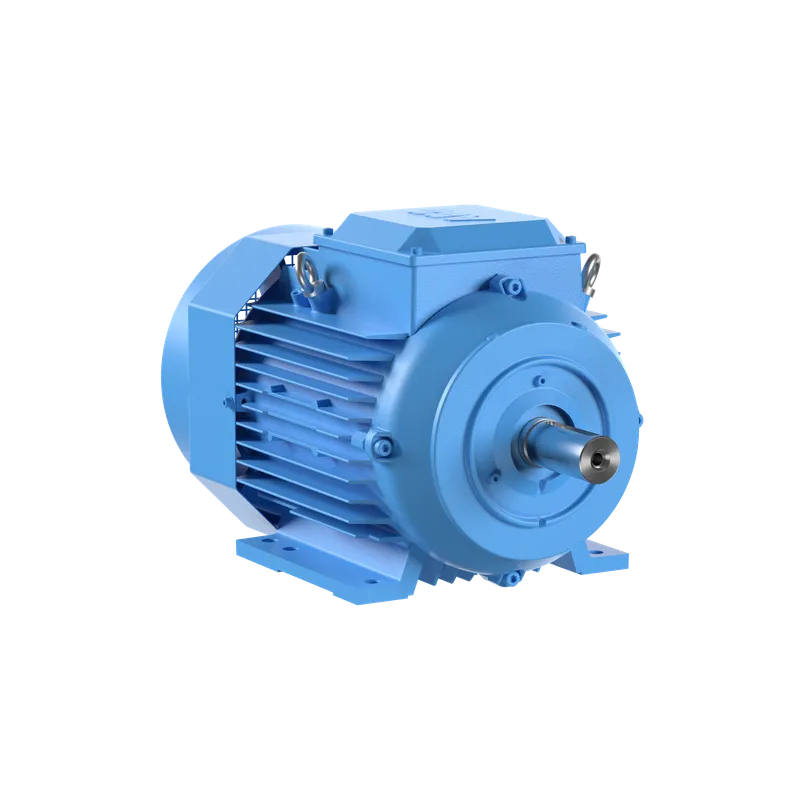

| ABB Type Designation | M3BP 112MB 8 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3BP2__M3BP_IE2_CI |
| Country or Territory of Origin | Spain, Finland, China |
| Customs Tariff Number | 85015220 |
Electrical
| Temperature Class Default | -- |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 8 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | H |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 112 |
| Bearing | 6206-2Z/C3 |
| Bearing NDE | 6205-2Z/C3 |
| Lubrication | For life |
| IM Class | IMB14 IM3601 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Weight | 42 kg kg |
| Gross Weight | 43 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | 54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland |
External Classifications and Standards
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
| EAN | 3GBP114442-CHB |
