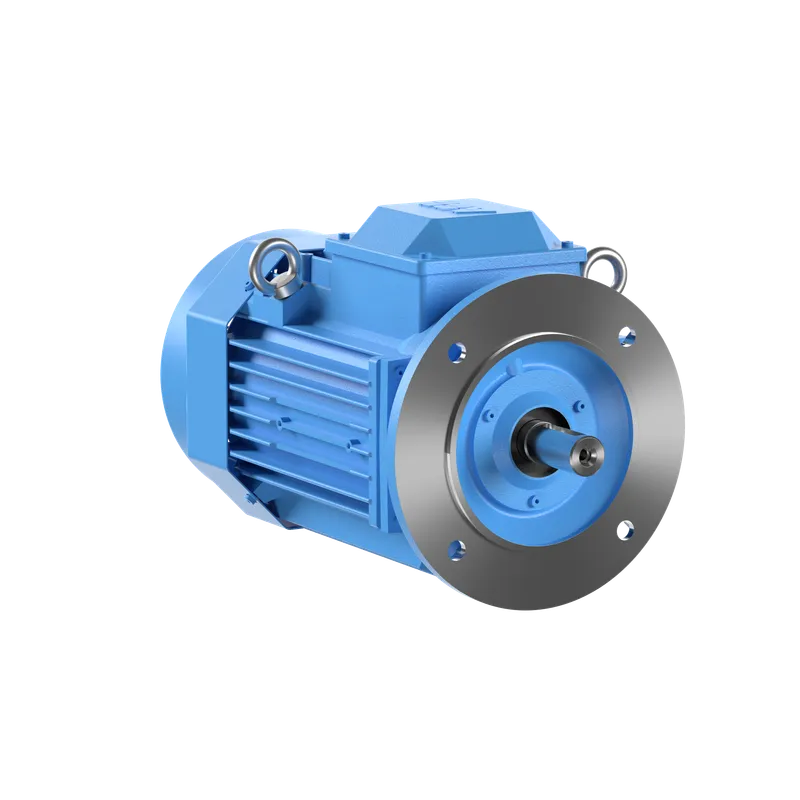

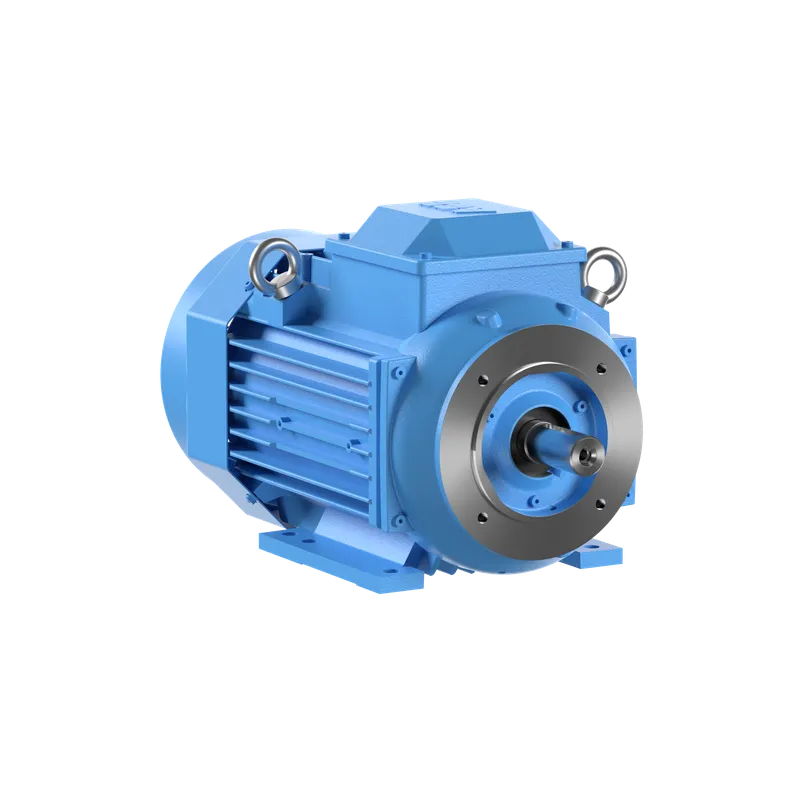

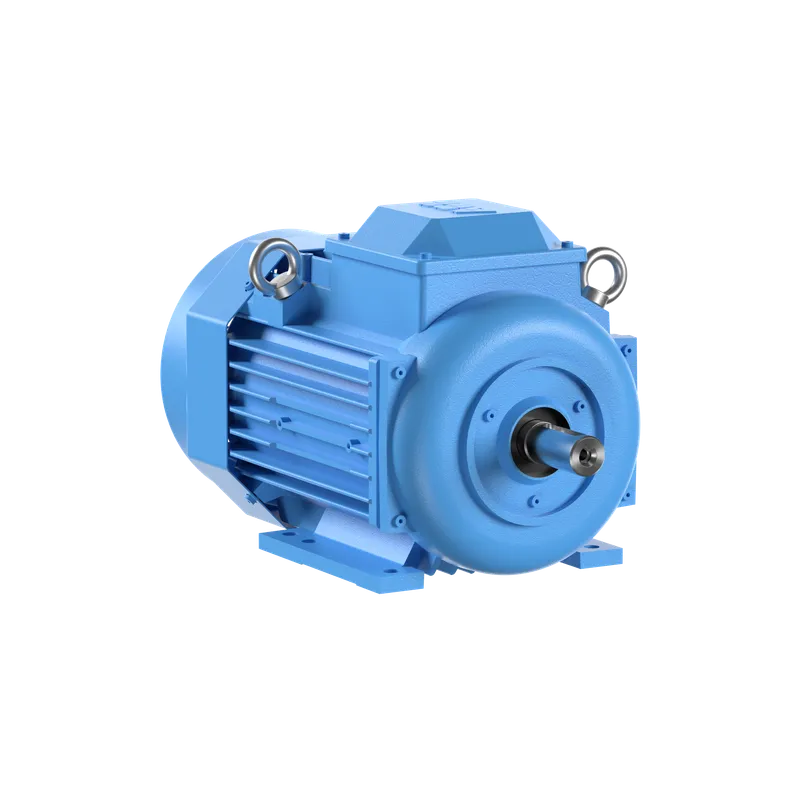

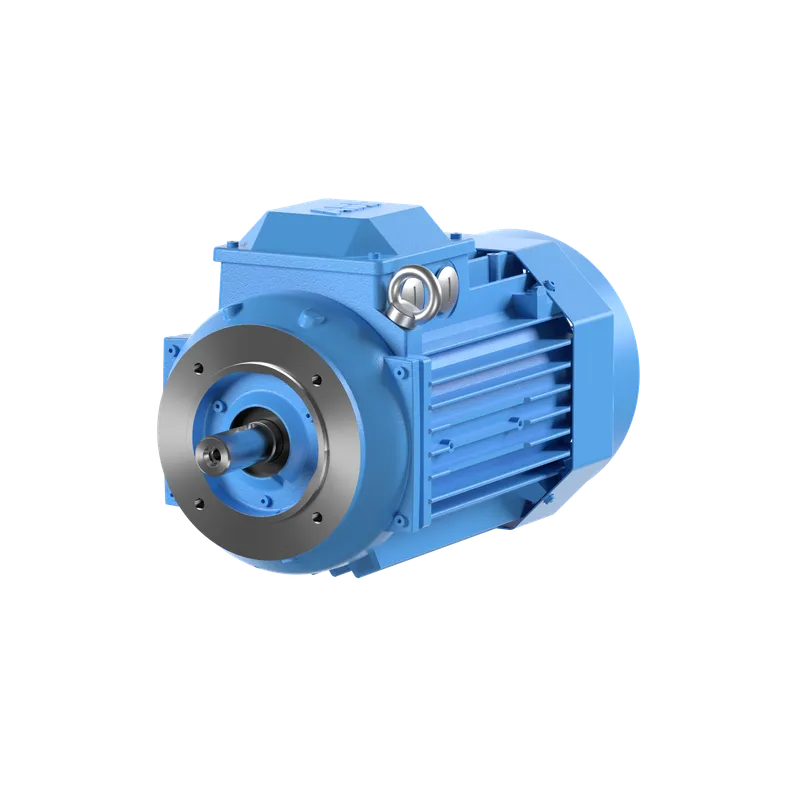

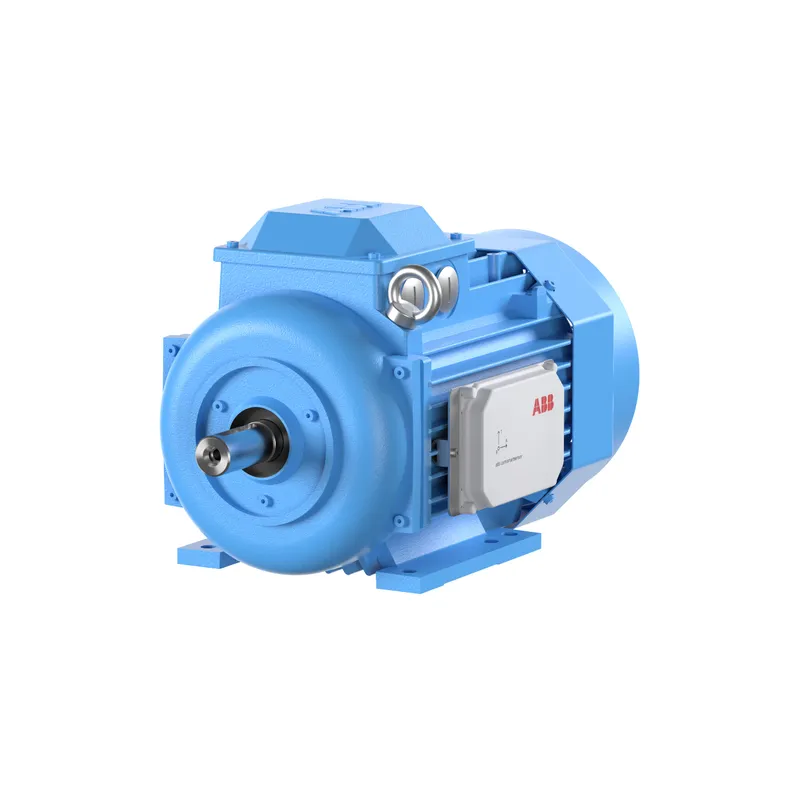

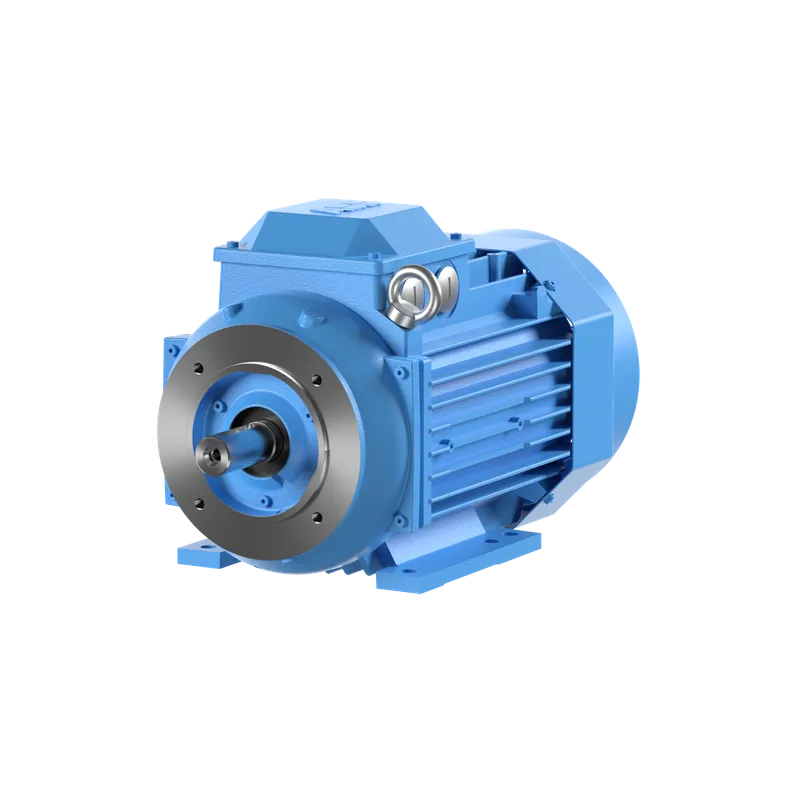

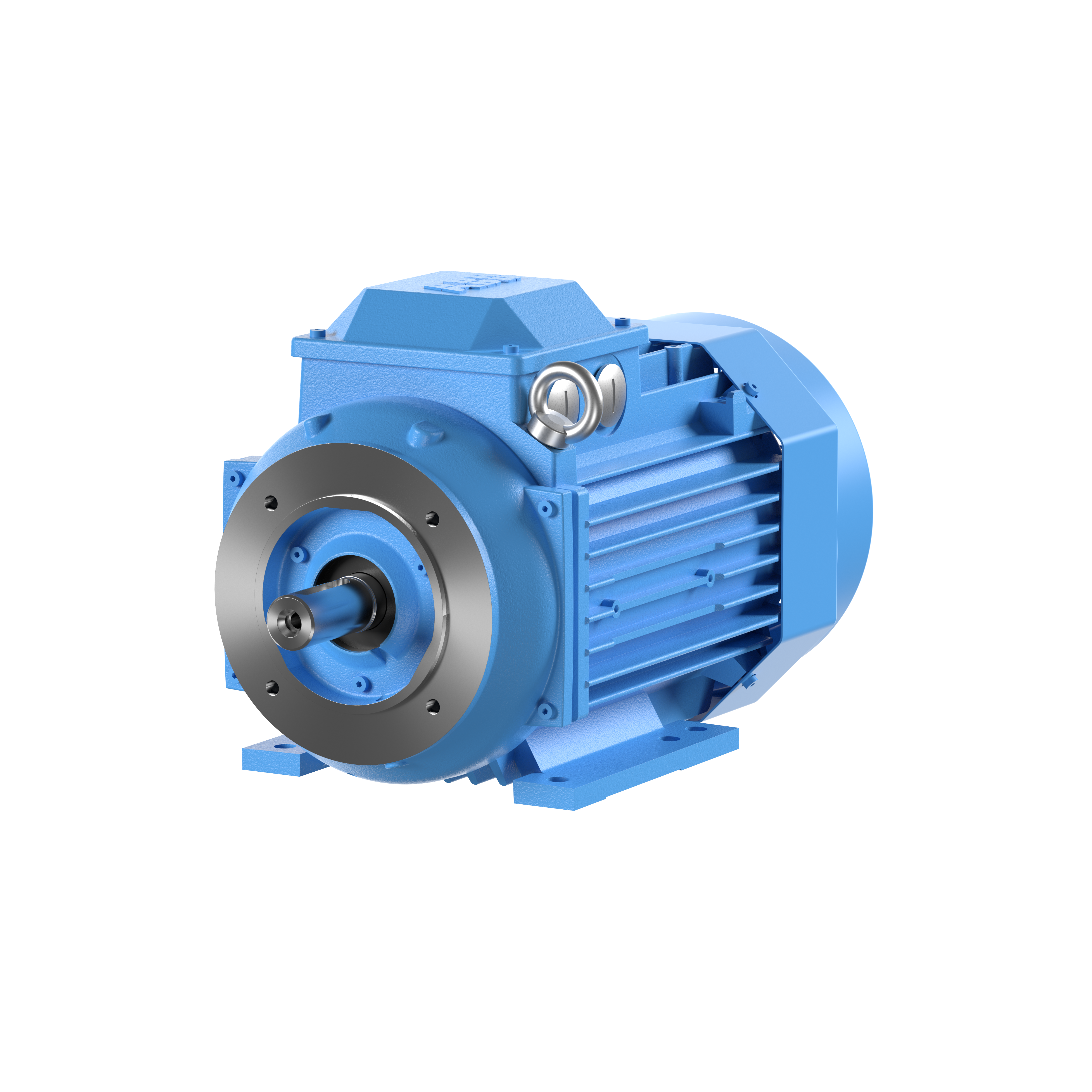

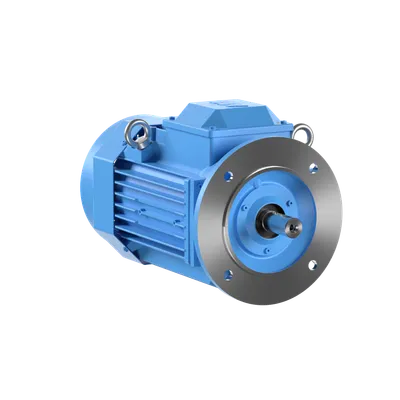

ABB 3GBP102444-JGB
- MPN
- 3GBP102444-JGB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB 3GBP102444-JGB?
(3GBP102444-JGB)
Specifications
Ordering
| ABB Type Designation | M3BP 100LD 4 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3BP2__M3BP_IE2_CI |
| Country or Territory of Origin | Spain, Finland, China |
| Customs Tariff Number | 85015220 |
Electrical
| Temperature Class Default | -- |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2, Full Load (100%) 86.2 %, Partial Load (75%) 86.0 %, Partial Load (50%) 83.7 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | G G |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 100 |
| Bearing | 6206-2Z/C3 |
| Bearing NDE | 6205-2Z/C3 |
| Lubrication | For life |
| IM Class | IMB34 IM2101 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Weight | 38 kg kg |
| Gross Weight | 39 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | 54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland |
External Classifications and Standards
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
| EAN | 3GBP102444-JGB |
3GBP102444-JGB: frequently asked questions
When can 3GBP102444-JGB be shipped?
3GBP102444-JGB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GBP102444-JGB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GBP102444-JGB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBP102444-JGB, subject to availability and destination.
