ABB 3GBP102323-JEB

MPN: 3GBP102323-JEB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP102323-JEB?

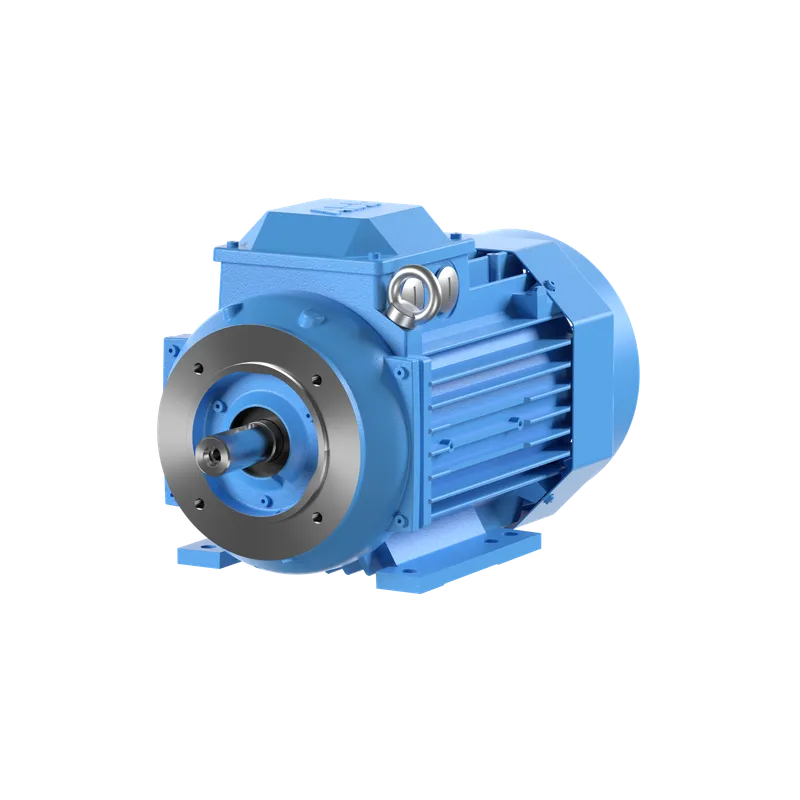

IE2 High Efficiency Cast Iron Motors, 2.2 kW, 500 V (3GBP102323-JEB)

Specifications

Ordering

ABB Type Designation	M3BP 100LC 4
Invoice Description	M3BP 100LC 4
Product Name	3-Phase squirrel cage motor
Product Type	3BP2__M3BP_IE2_CI
Country or Territory of Origin	Spain, Finland, China
Customs Tariff Number	85015220
Medium Description	2.2kW, 4 Poles, Frame Size 100, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB34/IM2101 Mounting (3GBP102323-JEB)
Short Description	2.2kW, 4P, Frame Size 100, 3PH, 500V, 50Hz, IP55, IMB34/IM2101

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	2.2 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 85.9 %, Partial Load (75%) 85.9 %, Partial Load (50%) 84.2 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 87.5 %, Partial Load (75%) 86.7 %, Partial Load (50%) 84.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	100
Bearing	6206-2Z/C3
Bearing NDE	6205-2Z/C3
Lubrication	For life
IM Class	IMB34 IM2101
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	381 mm mm
Product Net Height	247 mm mm
Product Net Width	200 mm mm
Product Net Weight	36 kg kg
Gross Weight	41 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
