ABB 3GBP081350-AEL

MPN: 3GBP081350-AEL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP081350-AEL?

Specifications

Ordering

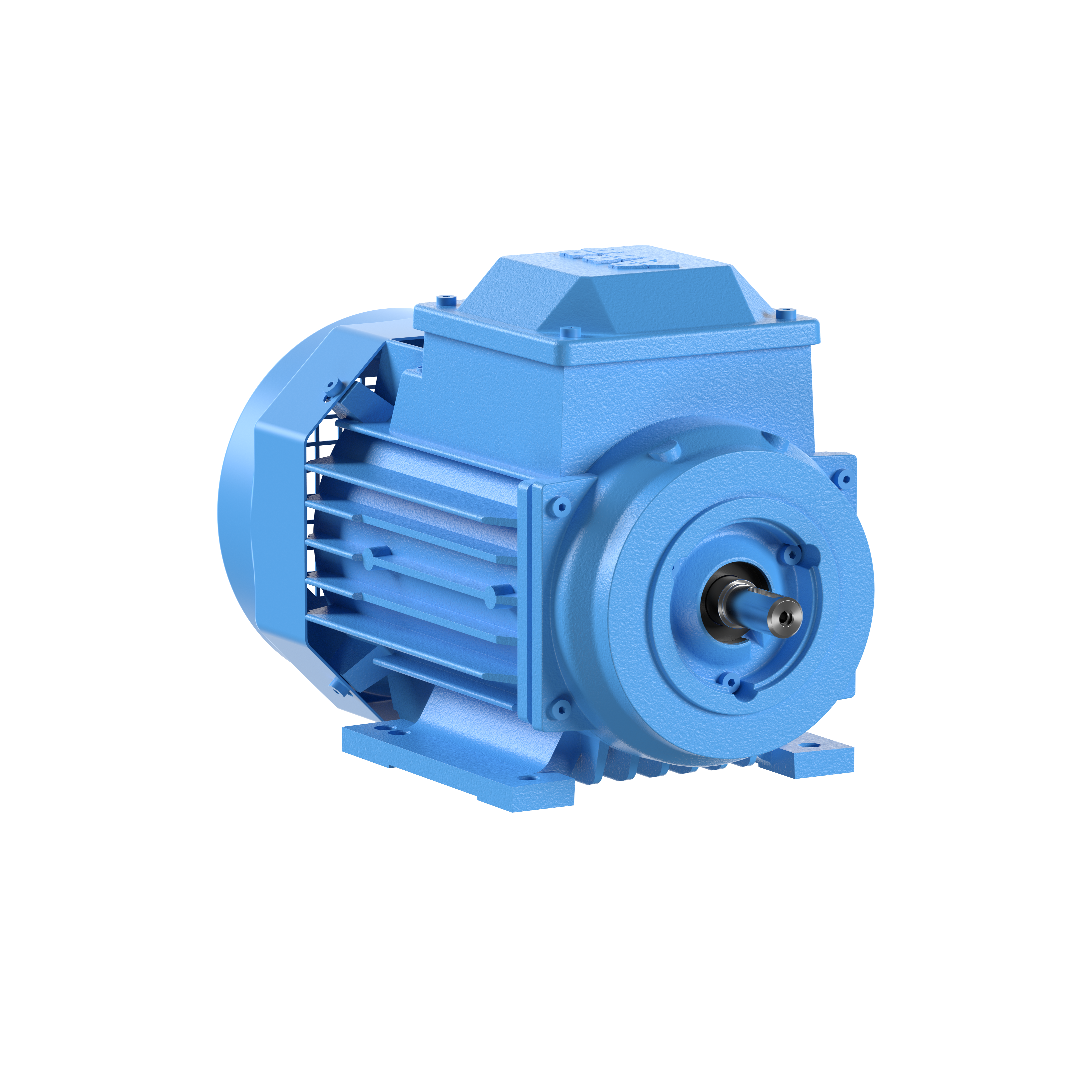

ABB Type Designation	M3BP 80ME 2
Invoice Description	M3BP 80ME 2
Product Name	3-Phase squirrel cage motor
Product Type	5BP3 M3BP CI
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015220
Medium Description	1.1kW, 2 Poles, Frame Size 80, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBP081350-AEL)
Short Description	1.1kW, 2P, Frame Size 80, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	1.1 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 82.7 %, Partial Load (75%) 82.4 %, Partial Load (50%) 80.7 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 84.0 %, Partial Load (75%) 83.0 %, Partial Load (50%) 80.2 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	80
Bearing	6204-2Z/C3
Bearing NDE	6203-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	363 mm mm
Product Net Height	194 mm mm
Product Net Width	154 mm mm
Product Net Weight	18 kg kg
Gross Weight	21 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland

External Classifications and Standards

UNSPSC

26101100, 39120000
