ABB 3GBP072450-BSK

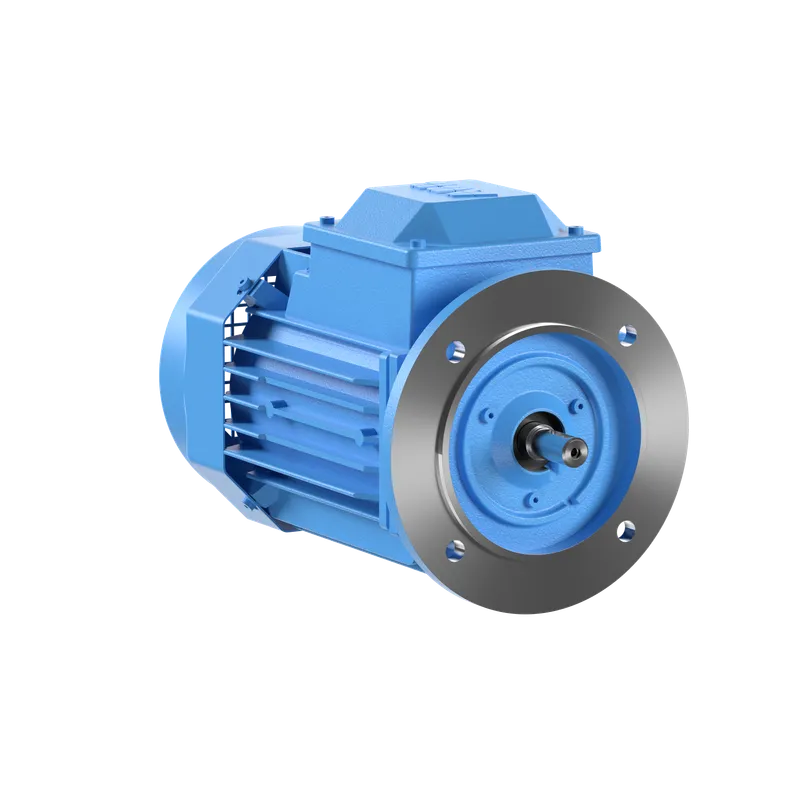

M3BP 71MLE 4

MPN: 3GBP072450-BSK
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBP072450-BSK?

IE3 Premium Efficiency Cast Iron Motors, 0.37 kW, 400 V (3GBP072450-BSK)

Specifications

Ordering

ABB Type Designation	M3BP 71MLE 4
Invoice Description	M3BP 71MLE 4
Product Name	3-Phase squirrel cage motor
Product Type	3BP3__M3BP_IE3_CI
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015100
Stocked At (Warehouses)	Menden, Germany
Medium Description	0.37kW, 4 Poles, Frame Size 71, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBP072450-BSK)
Short Description	0.37kW, 4P, Frame Size 71, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	0.37 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 77.3 %, Partial Load (75%) 77.3 %, Partial Load (50%) 74.6 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 78.2 %, Partial Load (75%) 76.3 %, Partial Load (50%) 71.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	71
Bearing	6203-2Z/C3
Bearing NDE	6202-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	294 mm mm
Product Net Height	178 mm mm
Product Net Width	136 mm mm
Product Net Weight	15 kg kg
Gross Weight	18 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland

External Classifications and Standards

UNSPSC

26101100
