ABB 3GBN953530-ADK
- MPN
- 3GBN953530-ADK
- Category
- NEMA AC Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GBN953530-ADK?

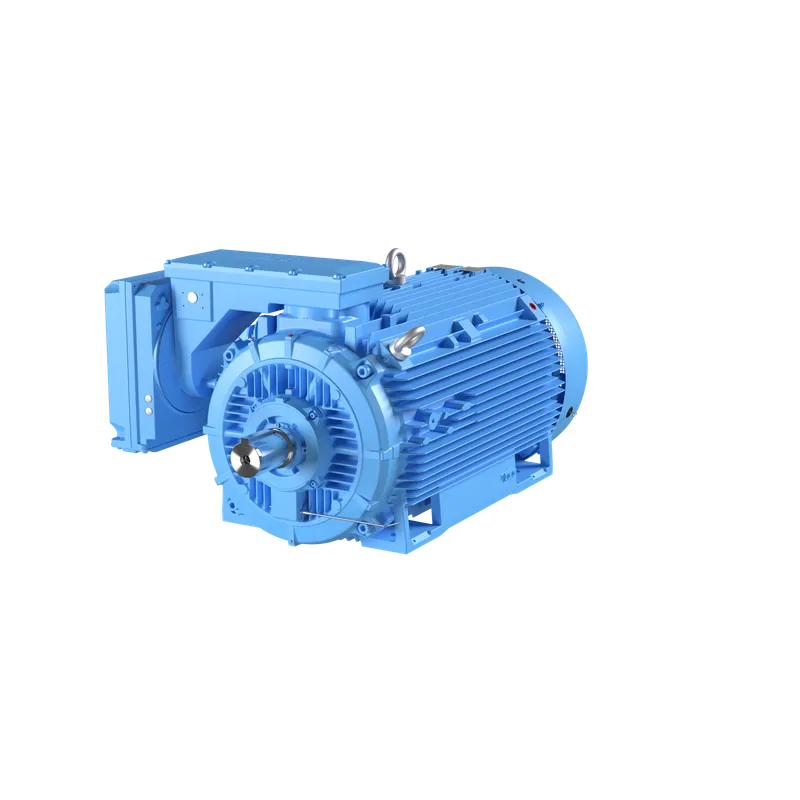

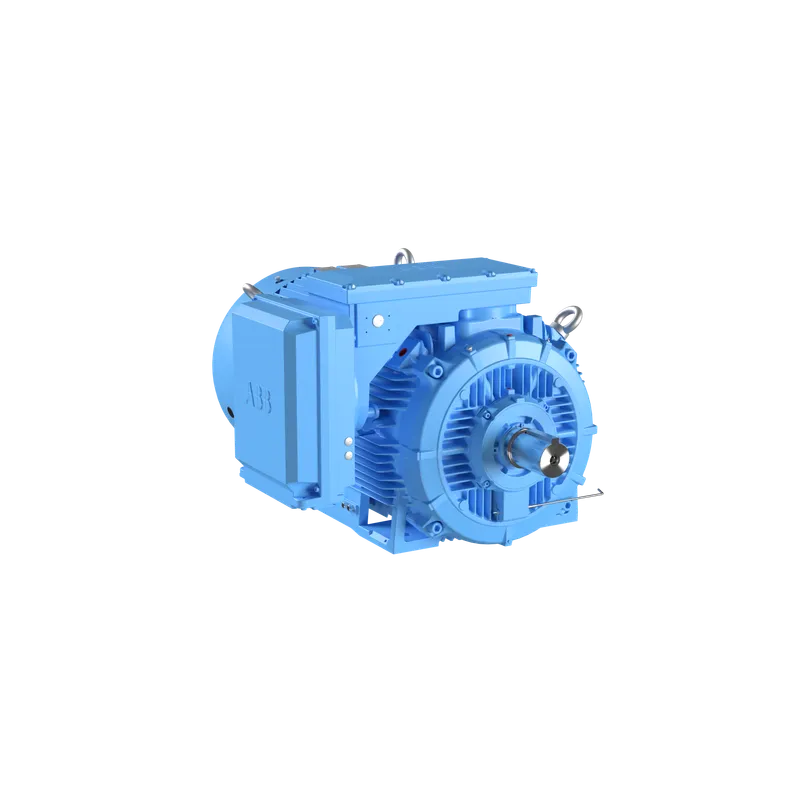

Premium Efficiency Motors, 373 kW, 460 V (3GBN953530-ADK)
Specifications
Ordering
| ABB Type Designation | M3BN 5012LC 6 |
| Invoice Description | M3BN 5012LC 6 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3BN3__M3BN_IE3 |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015381 |
| Medium Description | 373kW, 6 Poles, Frame Size 5000, 3 Phases, 460V, 60Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBN953530-ADK) |
| Short Description | 373kW, 6P, Frame Size 5000, 3PH, 460V, 60Hz, IP55, IMB3/IM1001 |
Electrical
| Connection Configuration | D |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 460 V V |
| Frequency (f) | 60 Hz Hz |
| Output Power | 373 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (60 Hz) | IE Class IE4, Full Load (100%) 96.5 %, Partial Load (75%) 96.4 %, Partial Load (50%) 95.8 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 6 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | D |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 5000 |
| Bearing | 6324/C3 |
| Bearing NDE | 6319/C3VL0241 |
| IM Class | IMB3 IM1001 |
| Terminator Box Location | D-End left side |
Dimensions
| Product Net Depth / Length | 2007 mm mm |
| Product Net Height | 821 mm mm |
| Product Net Width | 759 mm mm |
| Product Net Weight | 2610 kg kg |
| Gross Weight | 2650 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
| SCIP | a68594ba-db5c-4ba6-aabc-a40fc86bf202 Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
3GBN953530-ADK: frequently asked questions
When can 3GBN953530-ADK be shipped?
3GBN953530-ADK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GBN953530-ADK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GBN953530-ADK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBN953530-ADK, subject to availability and destination.
