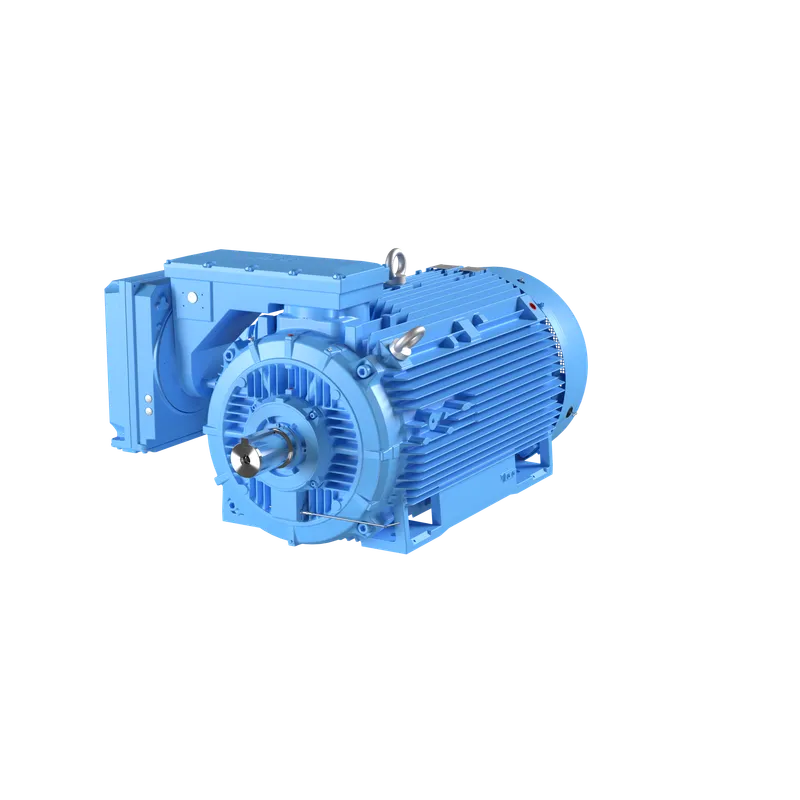

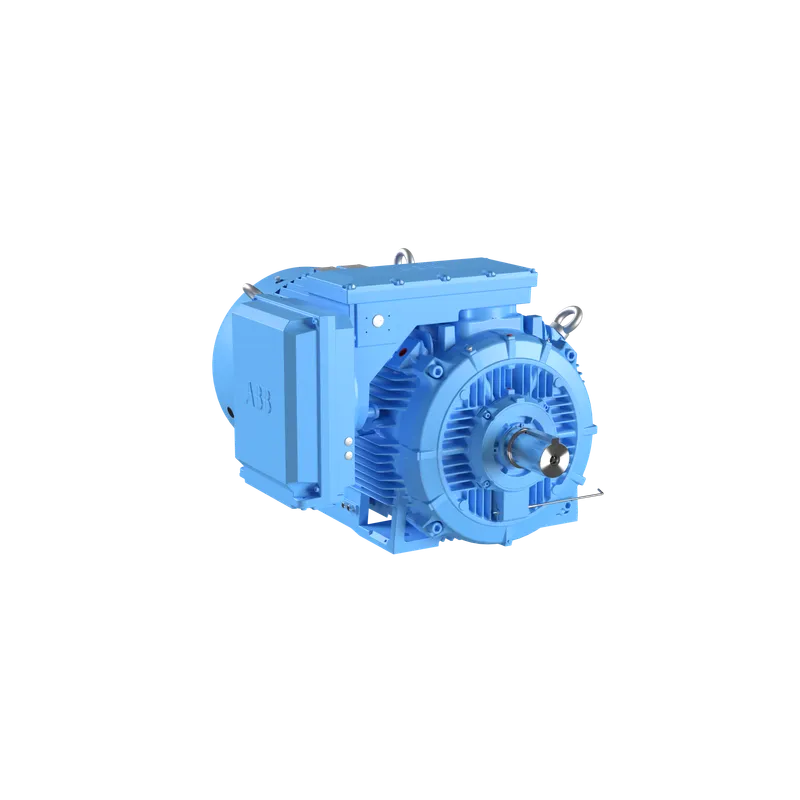

ABB 3GBN951510-AEK
- MPN
- 3GBN951510-AEK
- Category
- NEMA AC Motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GBN951510-AEK?
Premium Efficiency Motors, 597 kW, 575 V (3GBN951510-AEK)
Specifications
Ordering
| ABB Type Designation | M3BN 5012LA 2 |
| Invoice Description | M3BN 5012LA 2 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3BN3__M3BN_IE3 |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015394 |
| Medium Description | 597kW, 2 Poles, Frame Size 5000, 3 Phases, 575V, 60Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBN951510-AEK) |
| Short Description | 597kW, 2P, Frame Size 5000, 3PH, 575V, 60Hz, IP55, IMB3/IM1001 |
Electrical
| Connection Configuration | D |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 575 V V |
| Frequency (f) | 60 Hz Hz |
| Output Power | 597 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (60 Hz) | IE Class IE4, Full Load (100%) 97.6 %, Partial Load (75%) 97.6 %, Partial Load (50%) 97.2 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 2 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | E |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 5000 |
| Bearing | 6317M/C3 |
| Bearing NDE | 6317M/C3VL0241 |
| IM Class | IMB3 IM1001 |
| Terminator Box Location | D-End left side |
Dimensions
| Product Net Depth / Length | 1905 mm mm |
| Product Net Height | 821 mm mm |
| Product Net Width | 759 mm mm |
| Product Net Weight | 2770 kg kg |
| Gross Weight | 2810 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
| SCIP | 306b967b-49e0-48ea-9161-72d34487775f Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
