ABB 3GBL252273-BUC

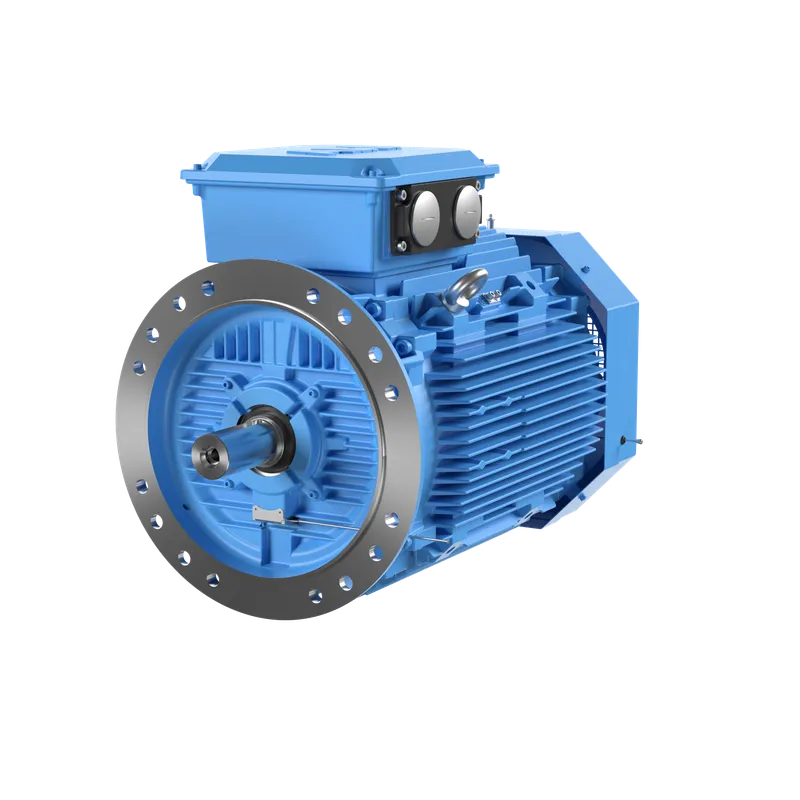

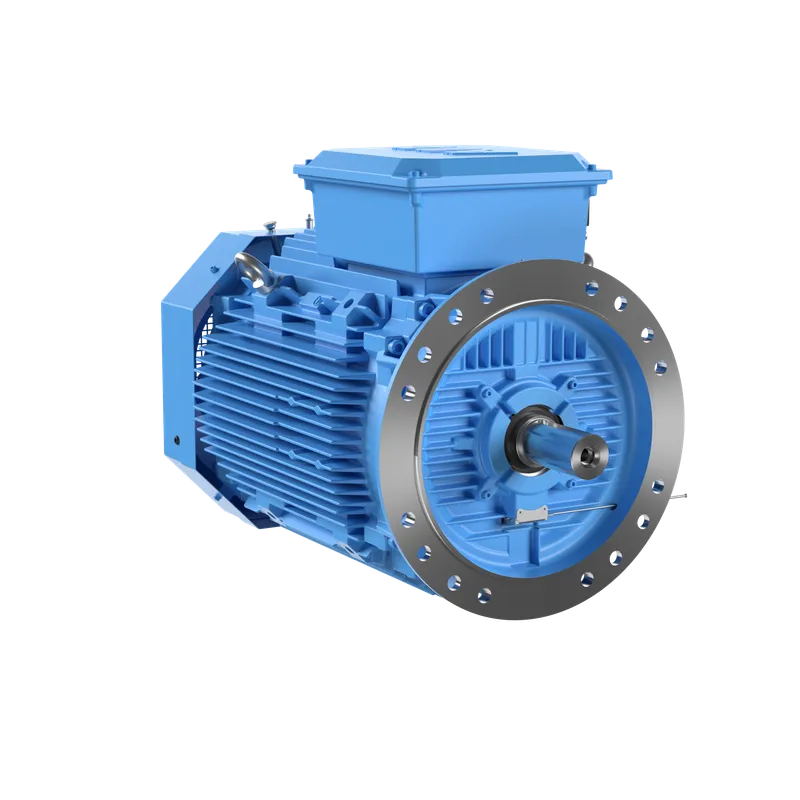

M3BL 250SMG 4

MPN: 3GBL252273-BUC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBL252273-BUC?

IE5 SynRM Motors, 45 kW, 690 V (3GBL252273-BUC)

Specifications

Ordering

ABB Type Designation	M3BL 250SMG 4
Invoice Description	M3BL 250SMG 4
Product Name	3-Phase synchronous motor
Product Type	3BL4__M3BL_IE5_SynRM_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015290
Medium Description	45kW, 4 Poles, Frame Size 250, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBL252273-BUC)
Short Description	45kW, 4P, Frame Size 250, 3PH, 690V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	690 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	650 V V
Output Power	45 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE4, Full Load (100%) 95.6 %, Partial Load (75%) 95.4 %, Partial Load (50%) 94.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	U

Mechanical

Frame Material	Cast Iron
Frame Size	250
Bearing	6315/C3
Bearing NDE	6213/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	884 mm mm
Product Net Height	626 mm mm
Product Net Width	508 mm mm
Product Net Weight	428 kg kg
Gross Weight	438 kg kg

Circular Value

ABB EcoSolutions

Yes

Eco Transparency

Environmental Product Declaration - EPD

9AAU00000000027

External Classifications and Standards

UNSPSC

26101100
