ABB 3GBL222217-HSC

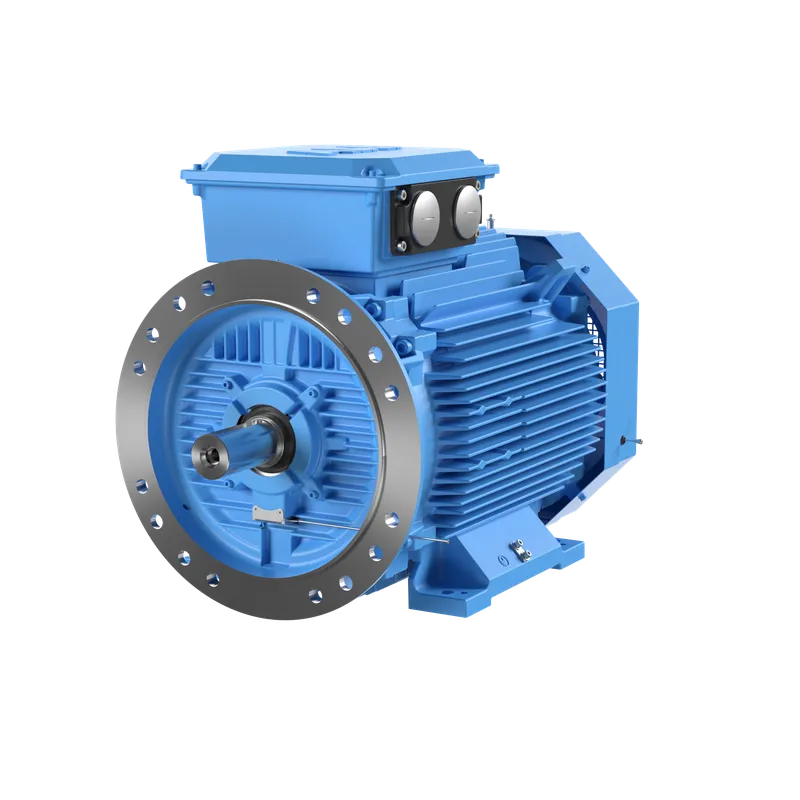

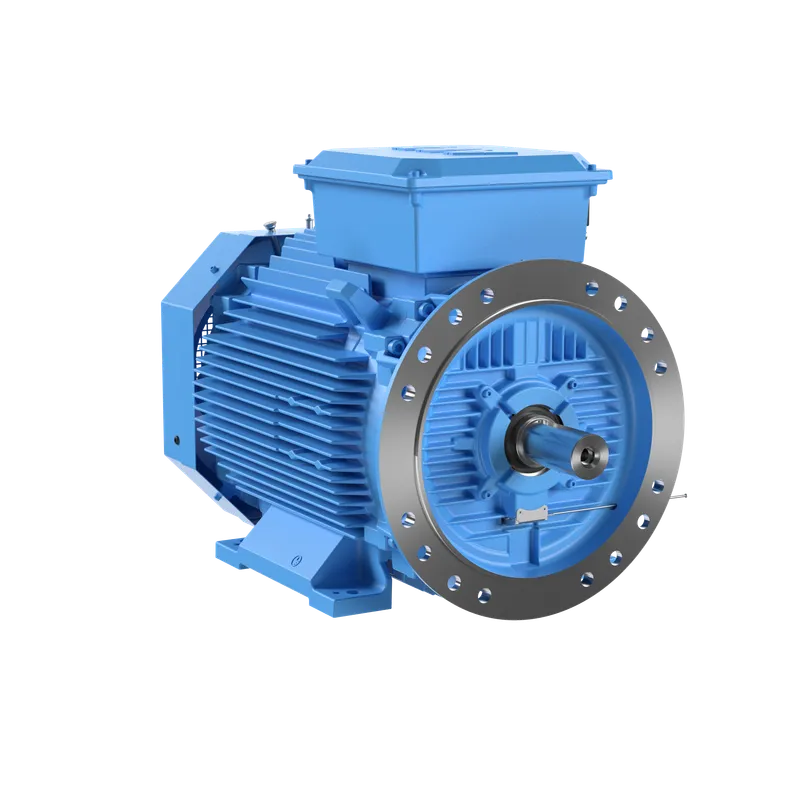

M3BL 225SMA 4

MPN: 3GBL222217-HSC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBL222217-HSC?

IE5 SynRM Motors, 45 kW, 400 V (3GBL222217-HSC)

Specifications

Ordering

ABB Type Designation	M3BL 225SMA 4
Invoice Description	M3BL 225SMA 4
Product Name	3-Phase synchronous motor
Product Type	3BL4__M3BL_IE5_SynRM_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015290
Medium Description	45kW, 4 Poles, Frame Size 225, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBL222217-HSC)
Short Description	45kW, 4P, Frame Size 225, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	370 V V
Operating Frequency (fsw)	100.000 Hz Hz
Output Power	45 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE5, Full Load (100%) 96.0 %, Partial Load (75%) 95.7 %, Partial Load (50%) 94.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	225
Bearing	6313/C3
Bearing NDE	6210/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	821 mm mm
Product Net Height	553 mm mm
Product Net Width	435 mm mm
Product Net Weight	282 kg kg
Gross Weight	292 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

Circular Value

ABB EcoSolutions

Yes

Eco Transparency

Environmental Product Declaration - EPD

9AAU00000000028

External Classifications and Standards

UNSPSC

26101100
