Home / ABB / Flameproof IEC Low voltage motors / ABB 3GBL182433-HUC

ABB

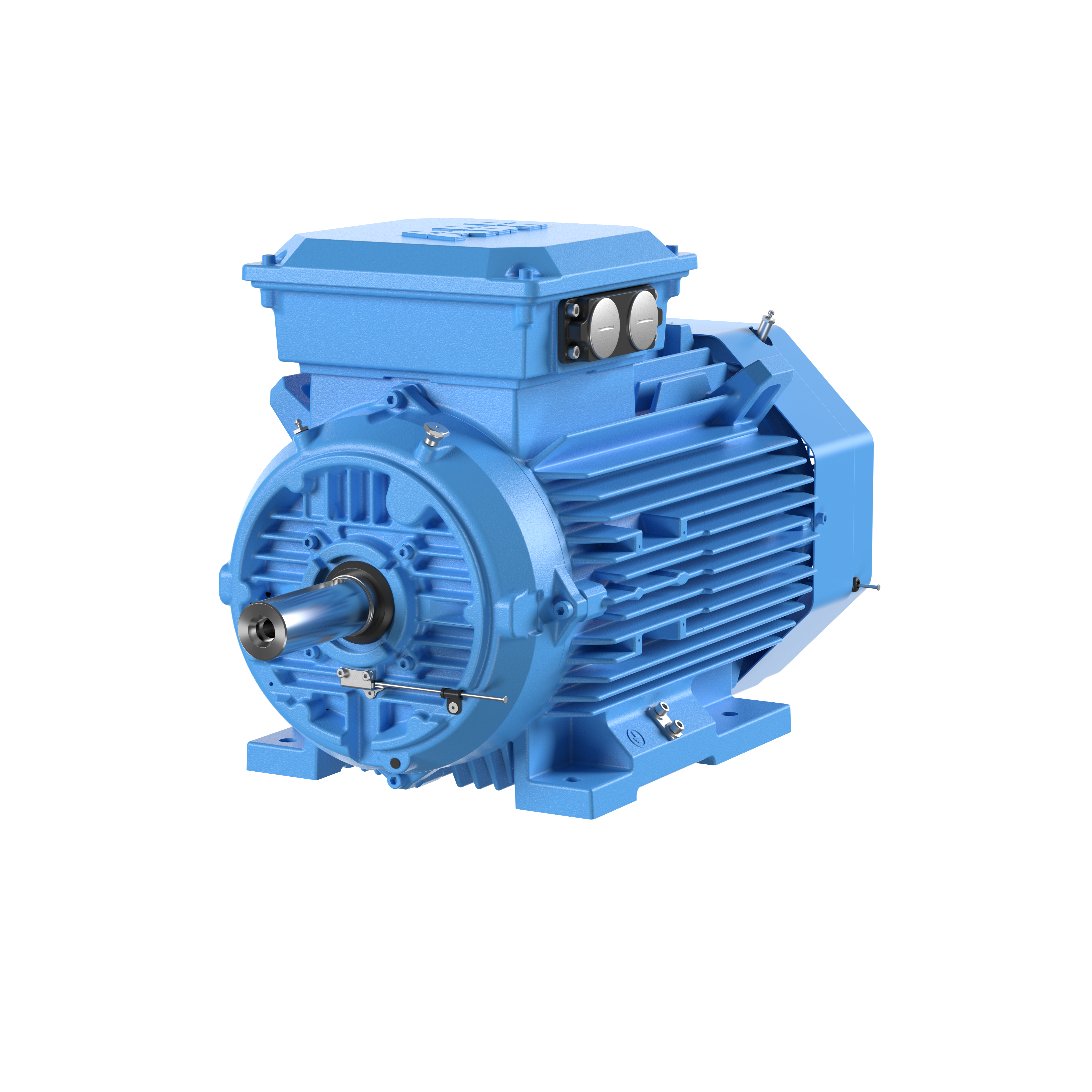

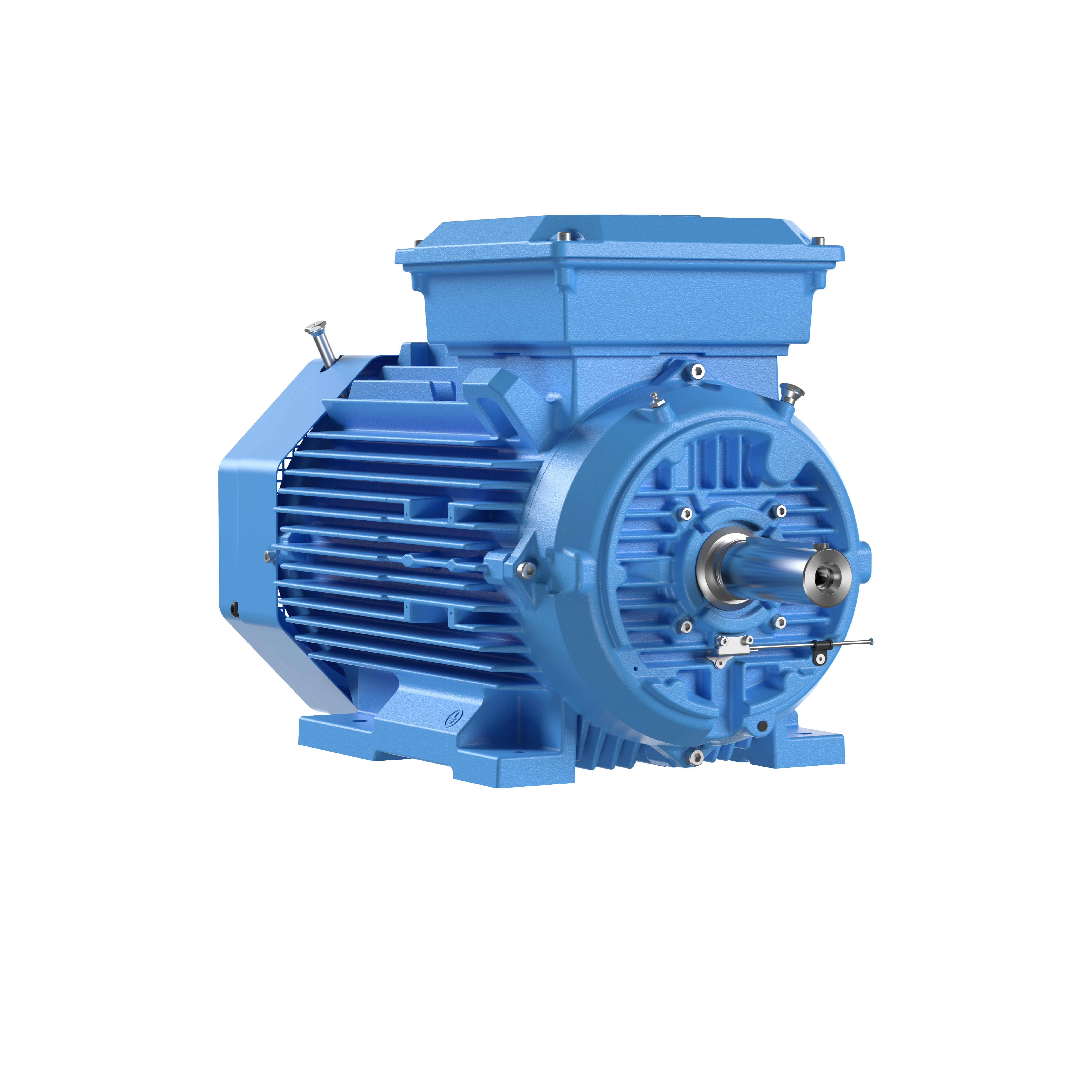

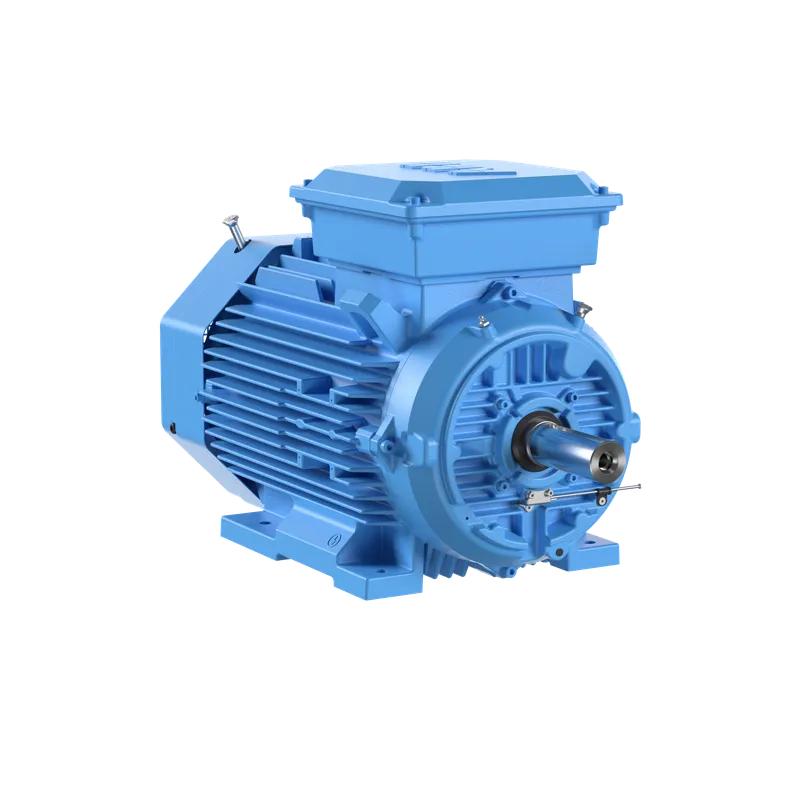

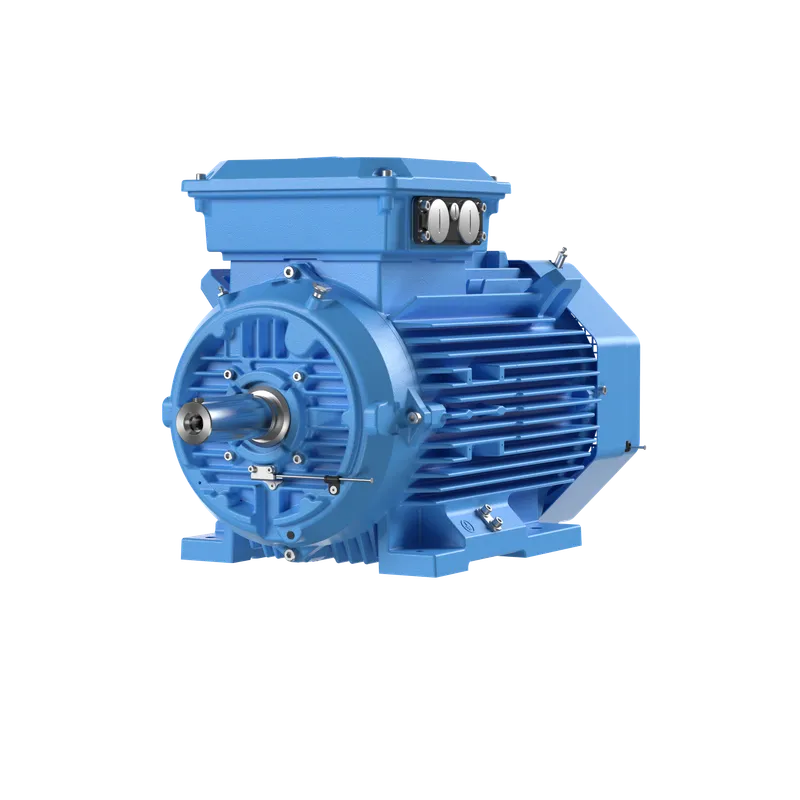

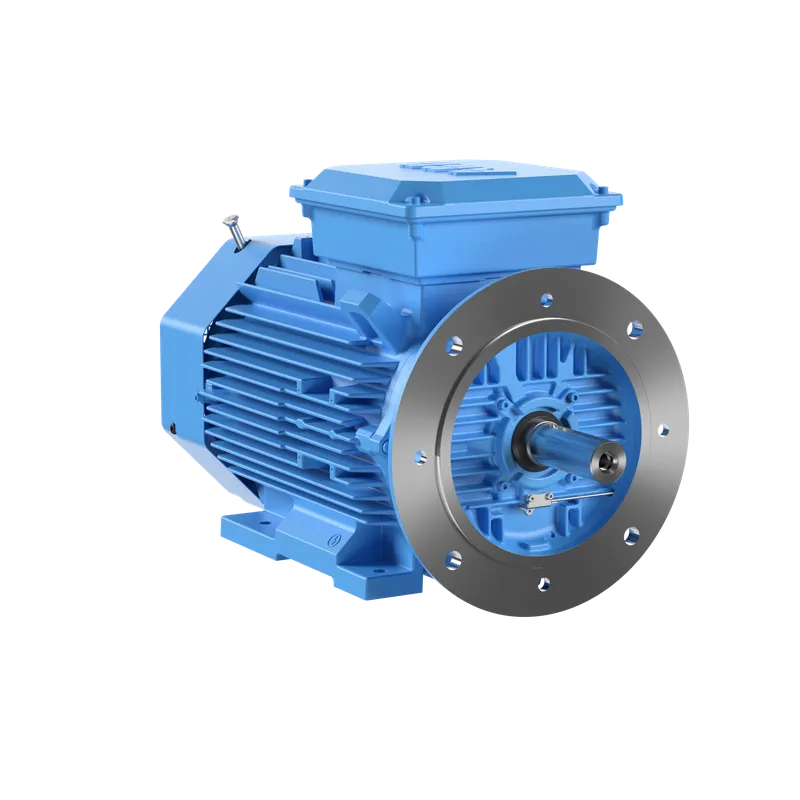

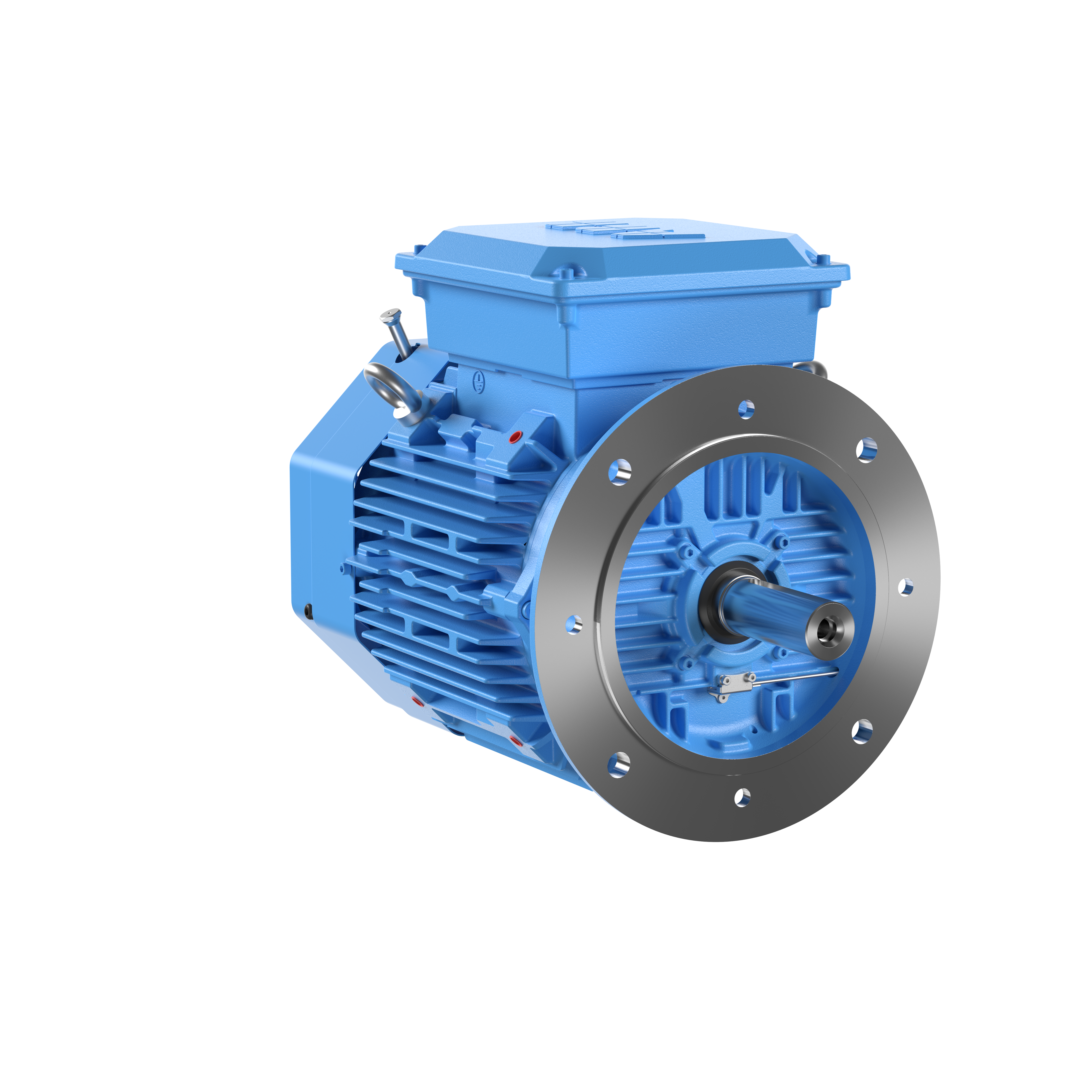

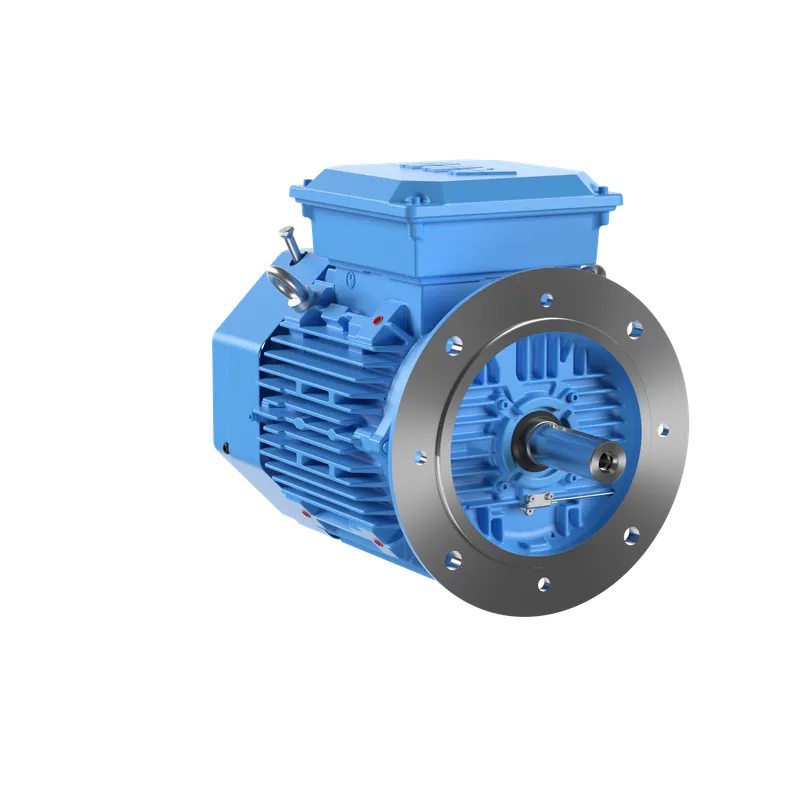

ABB 3GBL182433-HUC

M3BL 180MLC 4

MPN: 3GBL182433-HUC
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBL182433-HUC?

(3GBL182433-HUC)

Specifications

Ordering

ABB Type Designation	M3BL 180MLC 4
Invoice Description	M3BL 180MLC 4
Product Name	3Phase Synchronous reluctance motor
Product Type	3BL4__M3BL_IE5_SynRM_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Replaced Product ID (OLD)	3GBL202463-HUC
Medium Description	?kW, 4P, Frame Size 180, 3 Phases, 690V, ?Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBL182433-HUC) kW
Short Description	?kW, 4P, Frame Size 180, 3PH, 690V, ?Hz, IP55, IMB35/IM2001 kW

Electrical

Temperature Class Default	--
Motor Operational Voltage	650 V V
Operating Frequency (fsw)	50.000 Hz Hz
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE5, Full Load (100%) 94.9 %, Partial Load (75%) 95.0 %, Partial Load (50%) 94.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	U

Mechanical

Frame Material	Cast Iron
Frame Size	180
Bearing	6310/C3
Bearing NDE	6209/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	222 kg kg
Gross Weight	232 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
