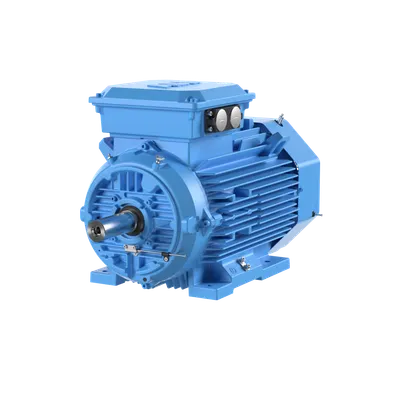

ABB 3GBL182413-HFC

M3BL 180MLA 4

MPN: 3GBL182413-HFC

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBL182413-HFC?

IE5 SynRM Motors, 18.5 kW, 500 V (3GBL182413-HFC)

Specifications

Ordering

ABB Type Designation	M3BL 180MLA 4
Invoice Description	M3BL 180MLA 4
Product Name	3-Phase synchronous motor
Product Type	3BL4__M3BL_IE5_SynRM_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	18.5kW, 4 Poles, Frame Size 180, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBL182413-HFC)
Short Description	18.5kW, 4P, Frame Size 180, 3PH, 500V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	470 V V
Output Power	18.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE4, Full Load (100%) 94.1 %, Partial Load (75%) 94.4 %, Partial Load (50%) 94.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	F

Mechanical

Frame Material	Cast Iron
Frame Size	180
Bearing	6310-2Z/C3
Bearing NDE	6209-2Z/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	766 mm mm
Product Net Height	461 mm mm
Product Net Width	381 mm mm
Product Net Weight	177 kg kg
Gross Weight	187 kg kg

Circular Value

ABB EcoSolutions

Yes

Eco Transparency

Environmental Product Declaration - EPD

9AAU00000000028

External Classifications and Standards

UNSPSC

26101100
