ABB 3GBL162455-HSB

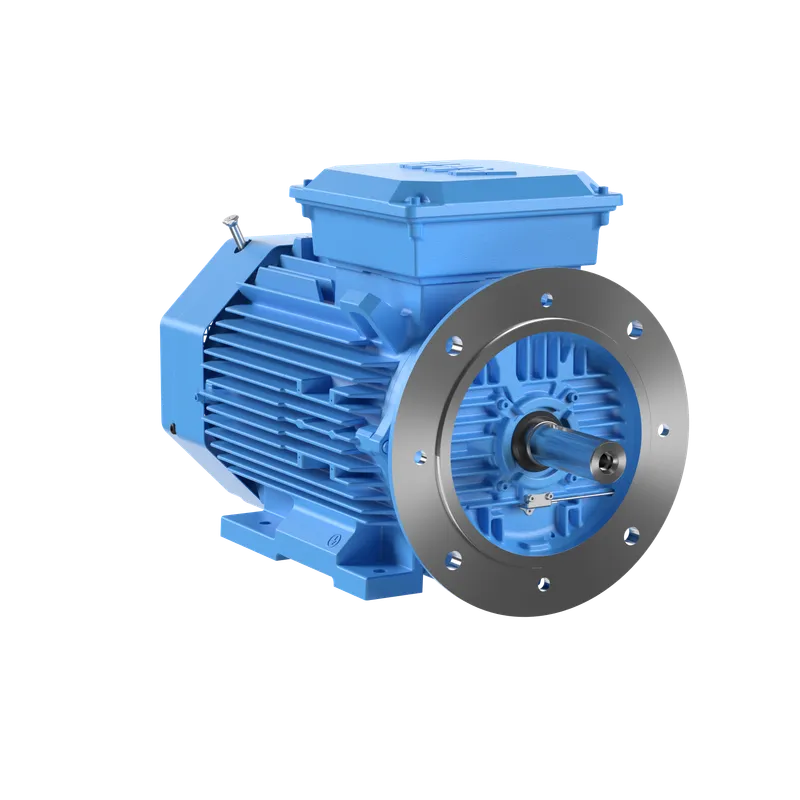

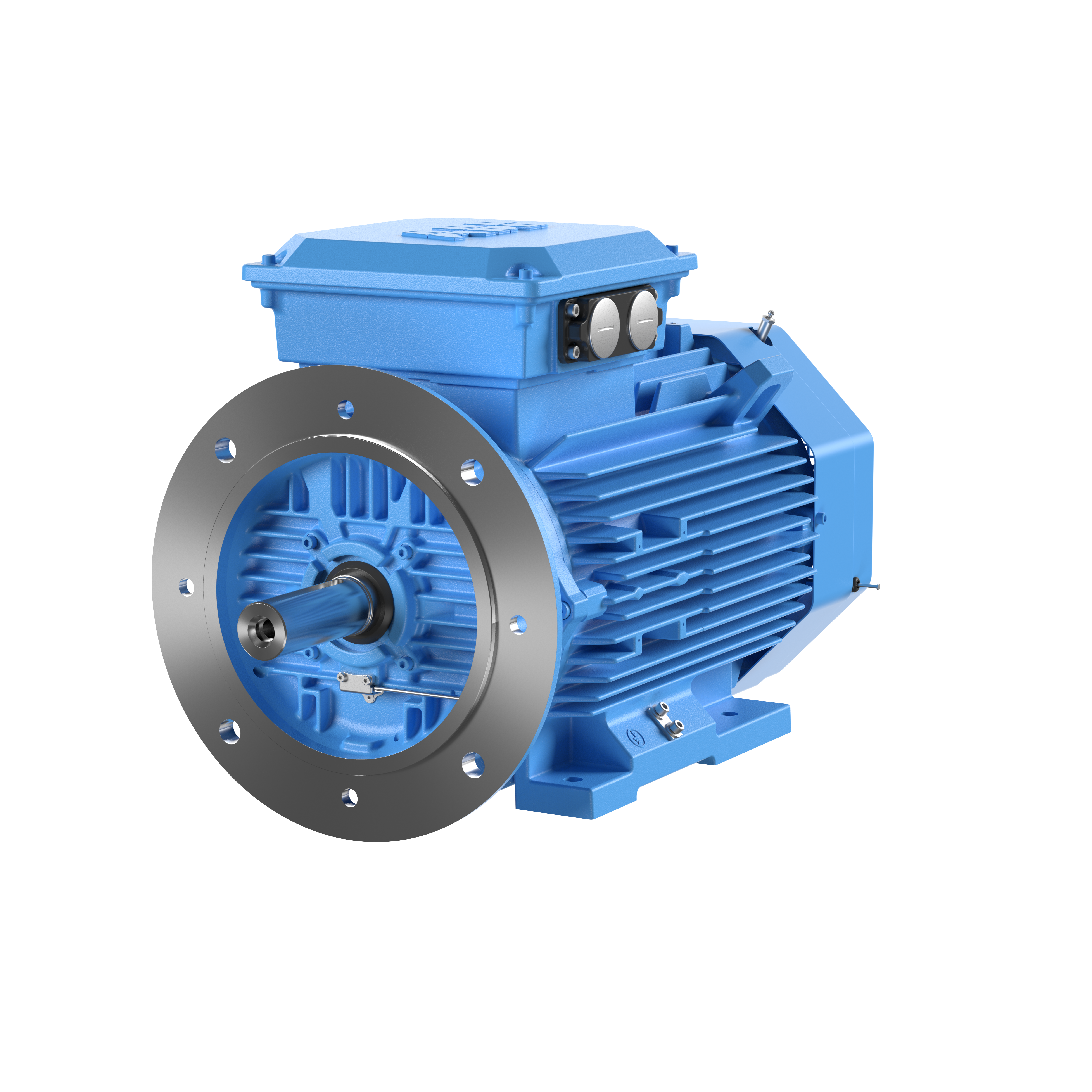

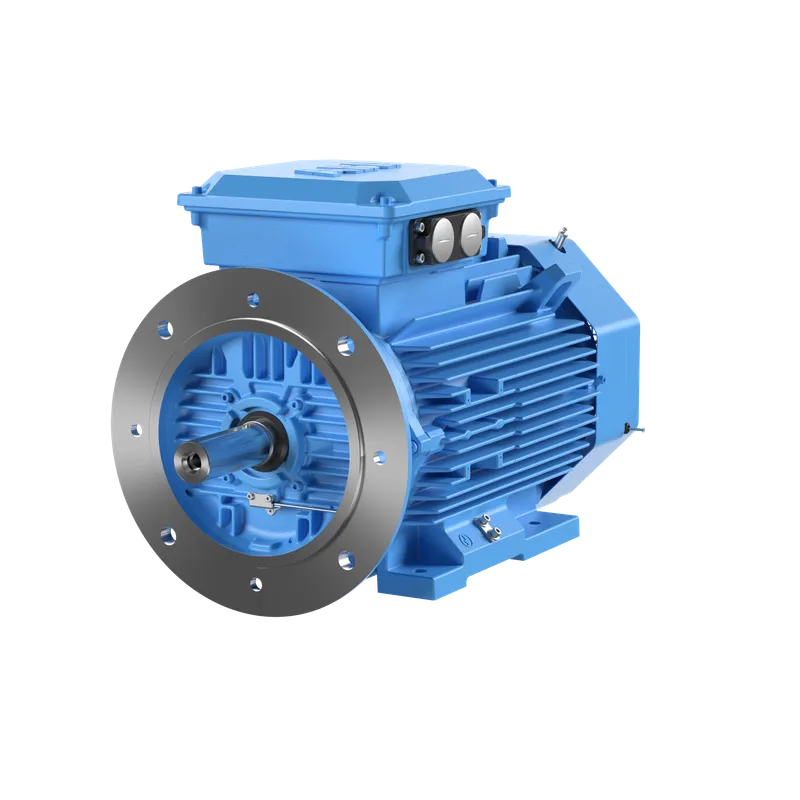

M3BL 160MLE 4

MPN: 3GBL162455-HSB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBL162455-HSB?

High Output SynRM Motors, 39 kW, 400 V (3GBL162455-HSB)

Specifications

Ordering

ABB Type Designation	M3BL 160MLE 4
Invoice Description	M3BL 160MLE 4
Product Name	3-Phase synchronous motor
Product Type	3BL0__M3BL_SynRM_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015290
Medium Description	39kW, 4P, Frame Size 160, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBL162455-HSB)
Short Description	39kW, 4P, Frame Size 160, 3 Phases, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	370 V V
Operating Frequency (fsw)	70.000 Hz Hz
Output Power	39 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 93.7 %, Partial Load (75%) 93.8 %, Partial Load (50%) 93.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	160
Bearing	6309-2Z/C3
Bearing NDE	6209-2Z/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	681 mm mm
Product Net Height	460 mm mm
Product Net Width	338 mm mm
Product Net Weight	174 kg kg
Gross Weight	184 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
