ABB 3GBL132237-BRC

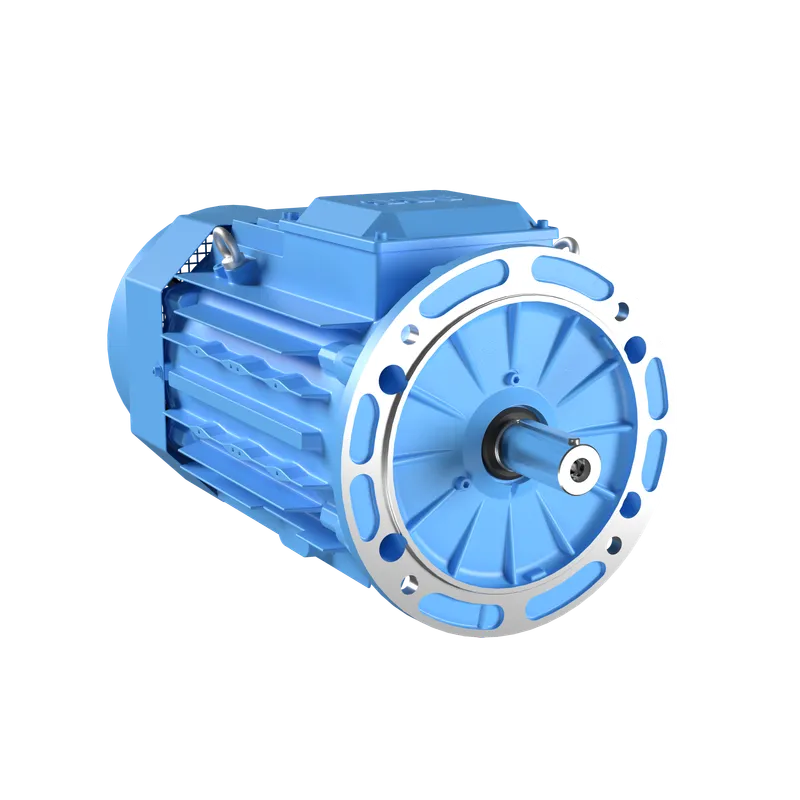

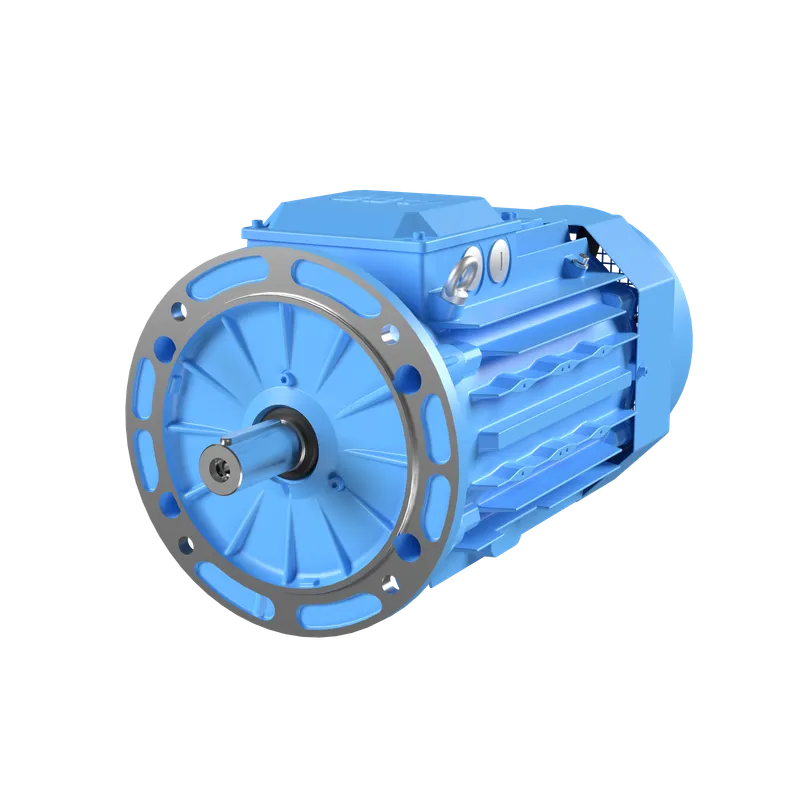

M3BL 132SMC 4

MPN: 3GBL132237-BRC
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBL132237-BRC?

IE5 SynRM Motors, 11 kW, 380 V (3GBL132237-BRC)

Specifications

Ordering

ABB Type Designation	M3BL 132SMC 4
Invoice Description	M3BL 132SMC 4
Product Name	3Phase Synchronous reluctance motor
Product Type	3BL4__M3BL_IE5_SynRM_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	11kW, 4P, Frame Size 132, 3 Phases, 380V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBL132237-BRC)
Short Description	11kW, 4P, Frame Size 132, 3PH, 380V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	380 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	350 V V
Operating Frequency (fsw)	120.000 Hz Hz
Output Power	11 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE5, Full Load (100%) 93.2 %, Partial Load (75%) 92.0 %, Partial Load (50%) 89.5 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	R

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6308-2Z/C3
Bearing NDE	6206-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	532 mm mm
Product Net Height	300 mm mm
Product Net Width	320.5 mm mm
Product Net Weight	70.9 kg kg
Gross Weight	71.9 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
