ABB 3GBA354130-ADMIN

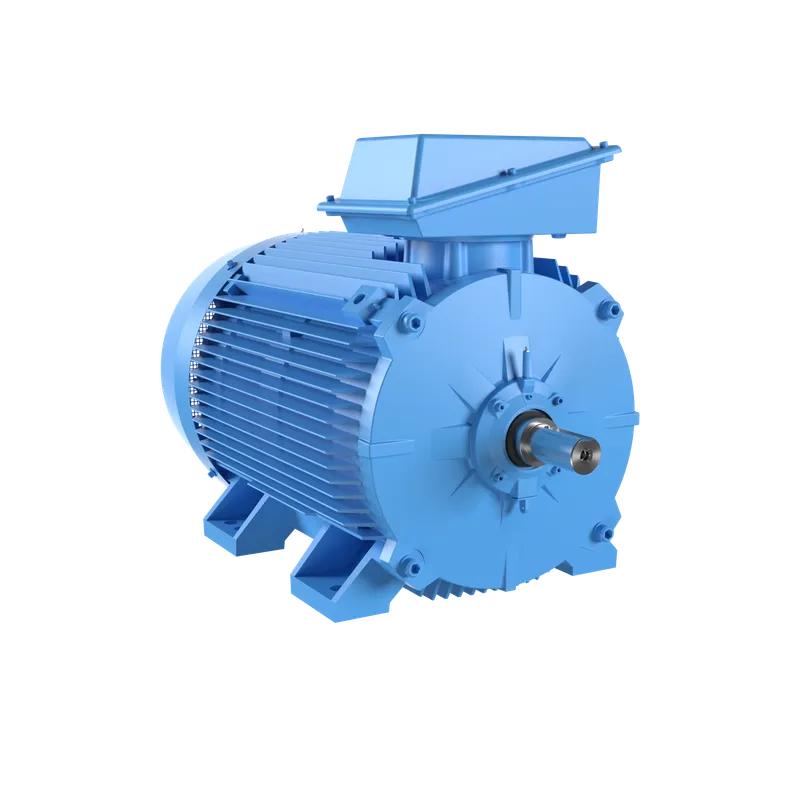

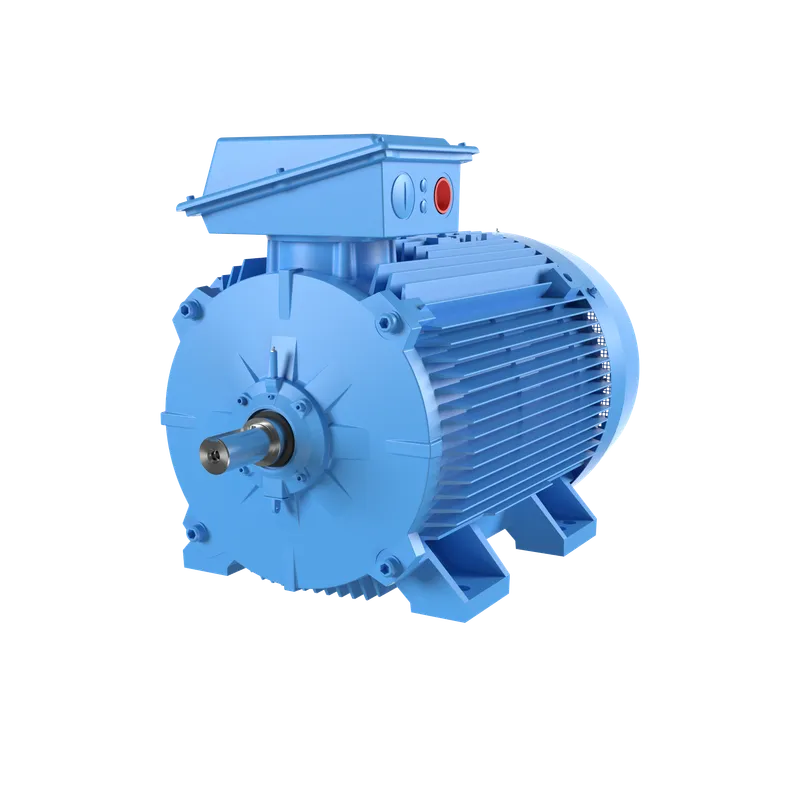

M2BAX 355SC 8

MPN: 3GBA354130-ADMIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 3GBA354130-ADMIN?

IE3 (BIS) Premium Efficiency Cast Iron Motors, 180 kW, 415 V (3GBA354130-ADMIN)

Specifications

Ordering

ABB Type Designation	M2BAX 355SC 8
Invoice Description	M2BAX 355SC 8
Product Name	3-Phase squirrel cage motor
Product Type	IBA3__M2BAX_IE3_CI
Country or Territory of Origin	India
Customs Tariff Number	85015381
Medium Description	180kW, 8 Poles, Frame Size 355, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA354130-ADMIN)
Short Description	180kW, 8P, Frame Size 355, 3PH, 415V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	180 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 94.6 %, Partial Load (75%) 94.6 %, Partial Load (50%) 92.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	355
Bearing	6322/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1469 mm mm
Product Net Height	960 mm mm
Product Net Width	754 mm mm
Product Net Weight	1820 kg kg
Gross Weight	1850 kg kg

External Classifications and Standards

UNSPSC

26101100
