ABB 3GBA351410-ADNIN

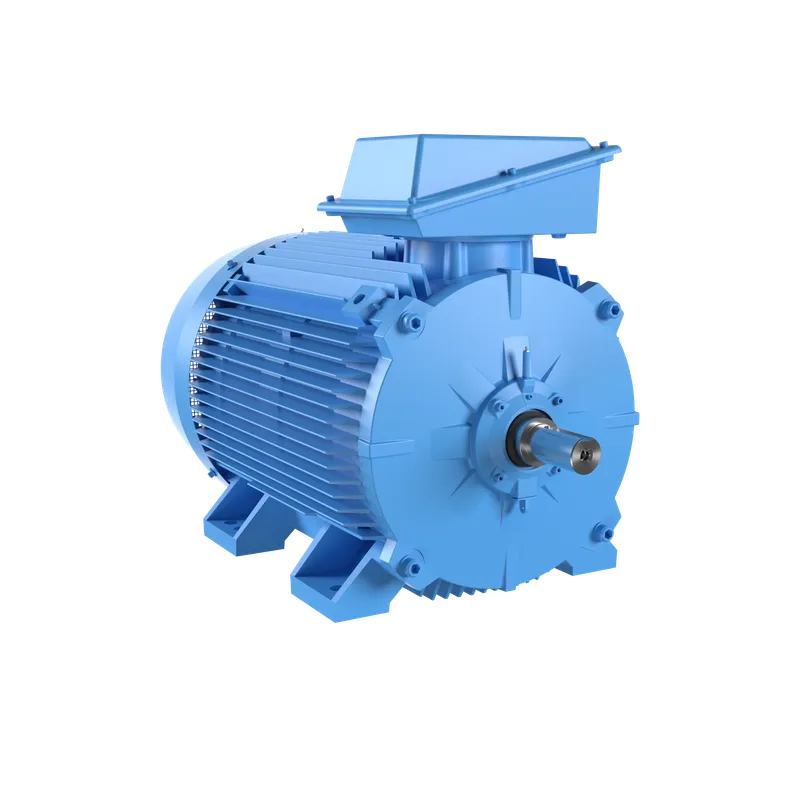

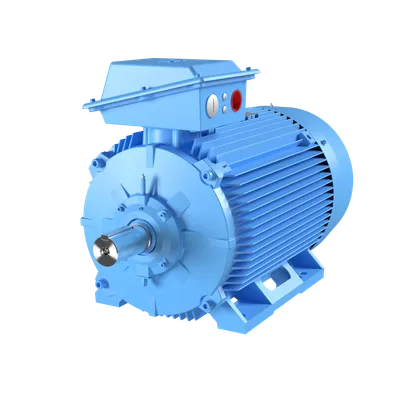

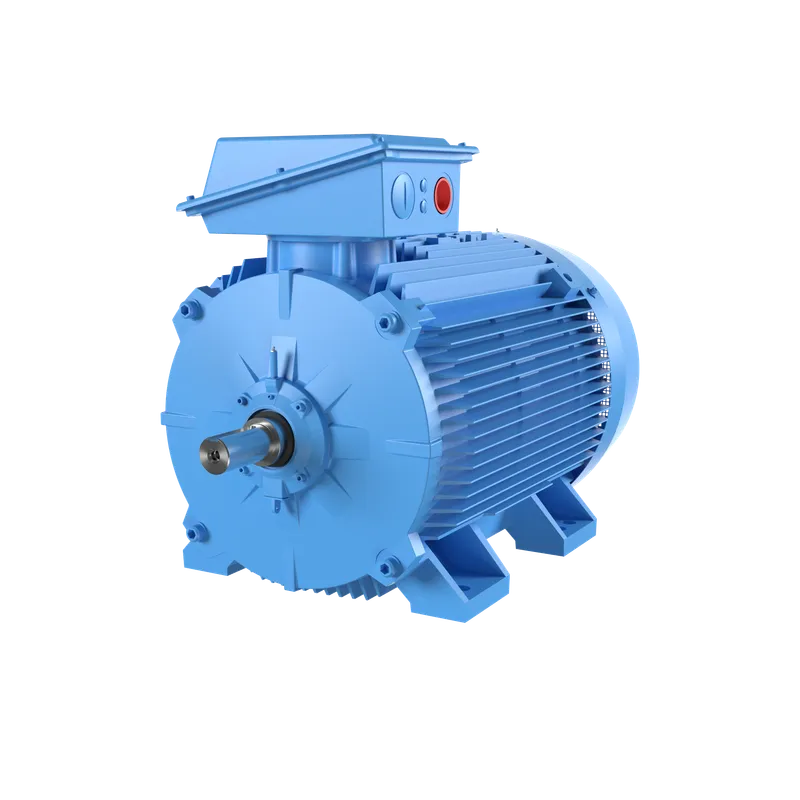

M2BAX 355MLA 2

MPN: 3GBA351410-ADNIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA351410-ADNIN?

IE4 (BIS) Super Premium Efficiency Cast Iron Motors, 355 kW, 415 V (3GBA351410-ADNIN)

Specifications

Ordering

ABB Type Designation	M2BAX 355MLA 2
Invoice Description	M2BAX 355MLA 2
Product Name	3-Phase squirrel cage motor
Product Type	IBA4__M2BAX_IE4_CI
Country or Territory of Origin	India
Customs Tariff Number	85015381
Medium Description	355kW, 2P, Frame Size 355, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA351410-ADNIN)
Short Description	355kW, 2P, Frame Size 355, 3 Phases, 415V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	355 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE4, Full Load (100%) 96.5 %, Partial Load (75%) 96.4 %, Partial Load (50%) 95.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	355
Bearing	6316/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1514 mm mm
Product Net Height	960 mm mm
Product Net Width	754 mm mm
Product Net Weight	1754 kg kg
Gross Weight	1784 kg kg

External Classifications and Standards

UNSPSC

26101100
