ABB 3GBA312240-BEM188

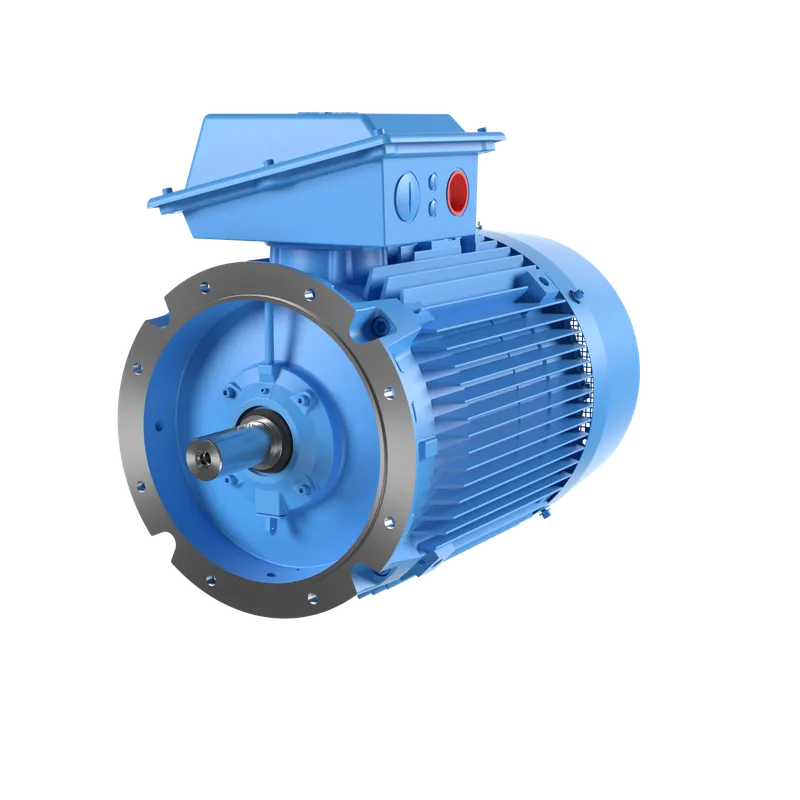

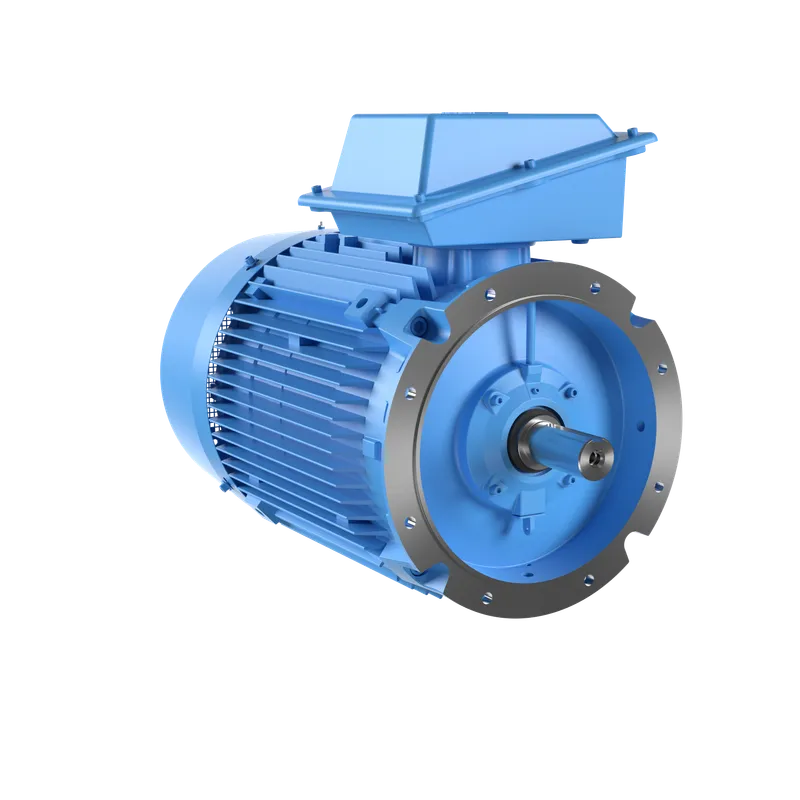

M2BAX 315SMD 4

MPN: 3GBA312240-BEM188
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA312240-BEM188?

IE3 Premium Efficiency Cast Iron Motors, 160 kW, 500 V (3GBA312240-BEM188)

Specifications

Ordering

ABB Type Designation	M2BAX 315SMD 4
Invoice Description	M2BAX 315SMD 4
Product Name	3-Phase squirrel cage motor
Product Type	EBA3__M2BAX_CI
Country or Territory of Origin	Poland
Customs Tariff Number	85015381
Medium Description	160W, 4 Poles, Frame Size 315, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA312240-BEM188)
Short Description	160kW, 4P, Frame Size 315, 3PH, 500V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	160 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.8 %, Partial Load (75%) 96.0 %, Partial Load (50%) 95.8 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 95.0 %, Partial Load (75%) 94.8 %, Partial Load (50%) 93.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1246 mm mm
Product Net Height	849 mm mm
Product Net Width	644 mm mm
Product Net Weight	933 kg kg
Gross Weight	953 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
