ABB

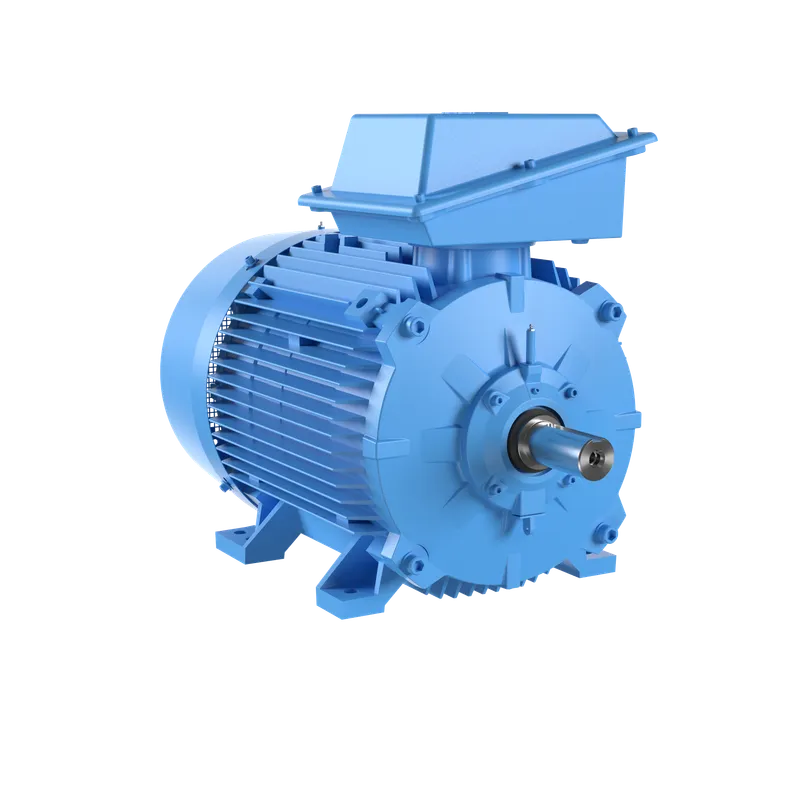

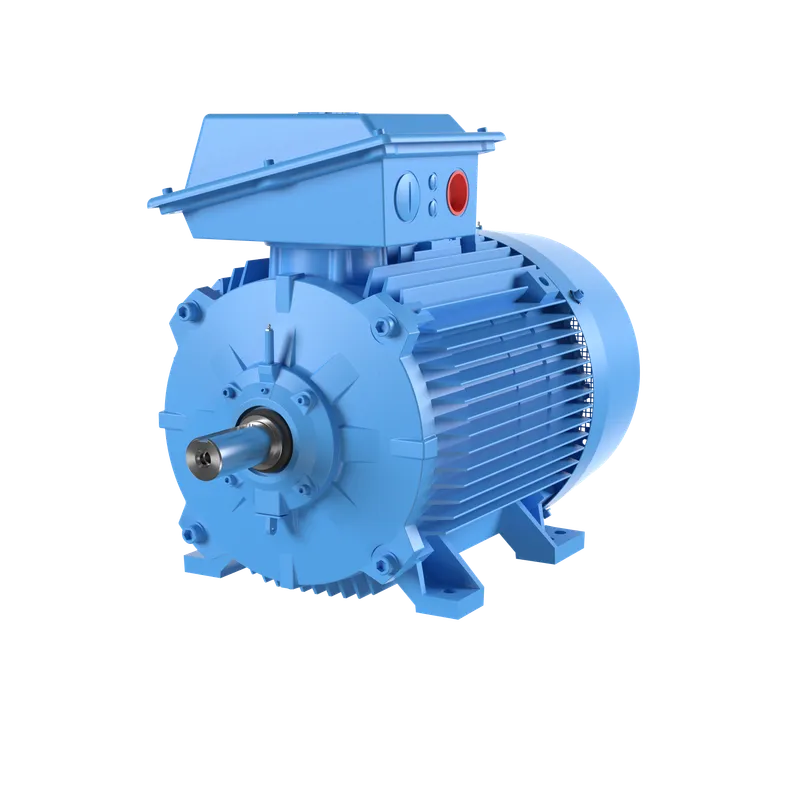

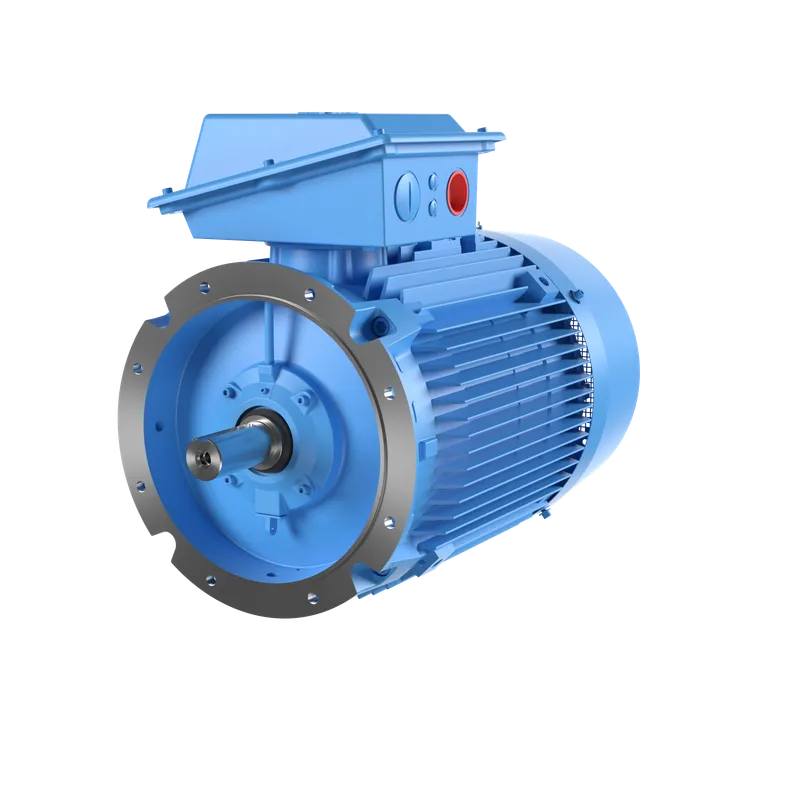

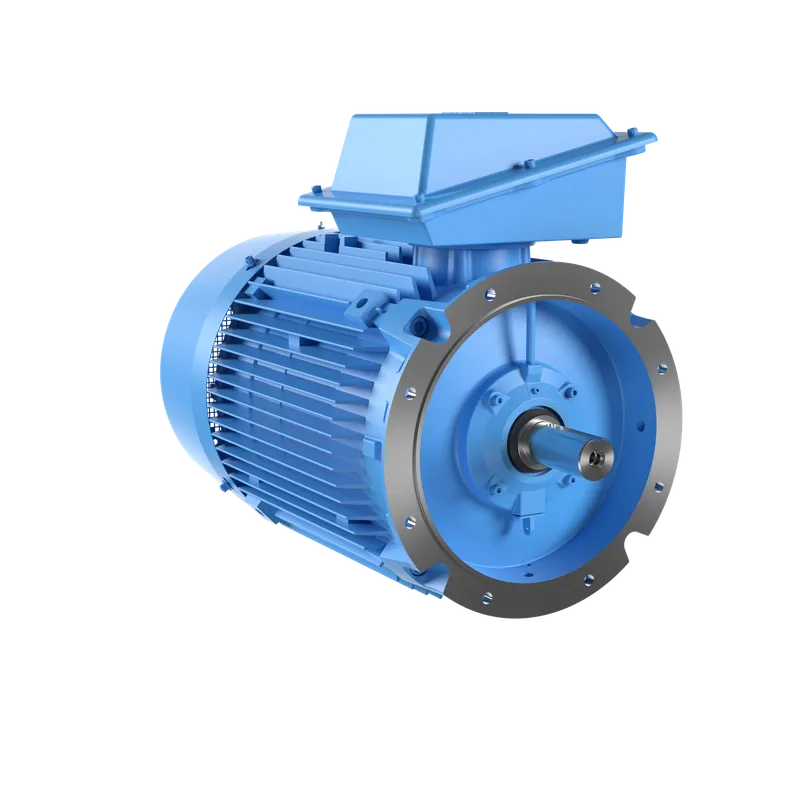

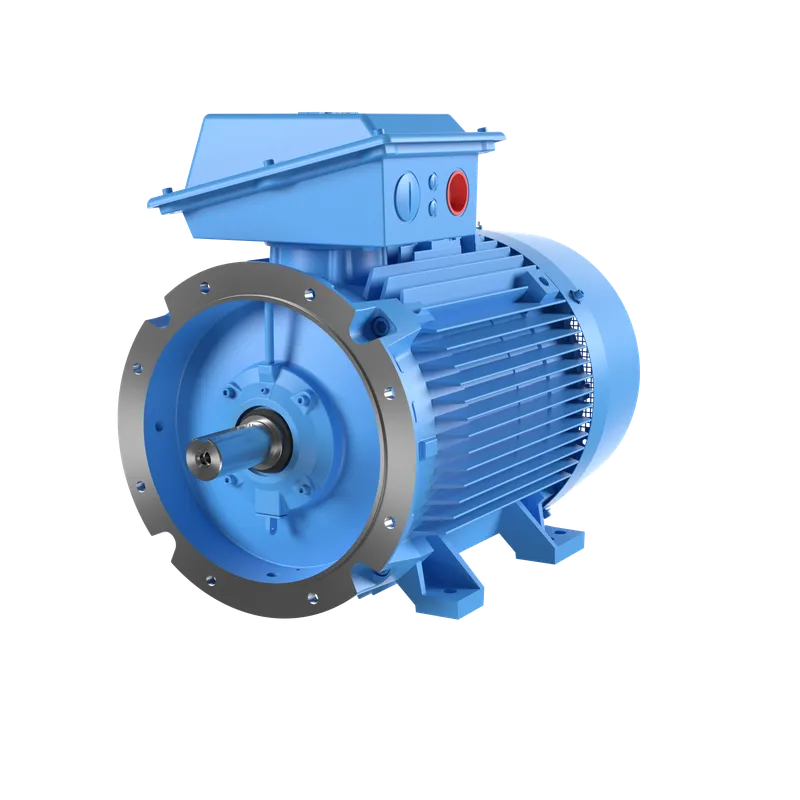

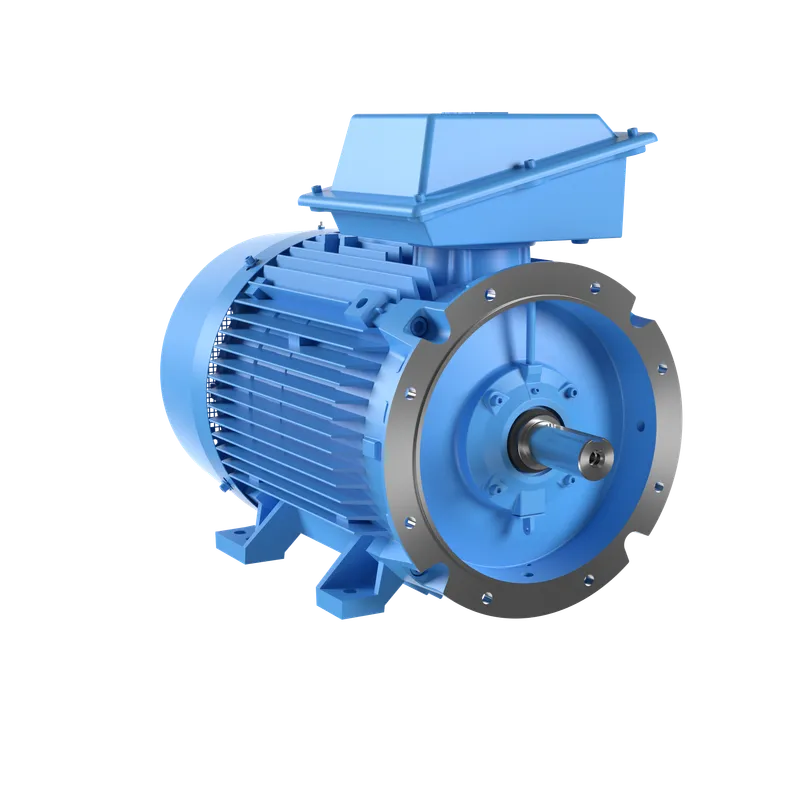

ABB 3GBA312220-BEM188

M2BAX 315SMB 4

MPN: 3GBA312220-BEM188
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA312220-BEM188?

(3GBA312220-BEM188)

Specifications

Ordering

ABB Type Designation	M2BAX 315SMB 4
Invoice Description	M2BAX 315SMB 4
Product Name	3-Phase squirrel cage motor
Product Type	EBA3__M2BAX_CI
Country or Territory of Origin	Poland
Customs Tariff Number	85015381

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.4 %, Partial Load (75%) 95.4 %, Partial Load (50%) 94.8 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 95.0 %, Partial Load (75%) 94.7 %, Partial Load (50%) 94.5 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	823 kg kg
Gross Weight	843 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
