ABB 3GBA312220-ADMIN

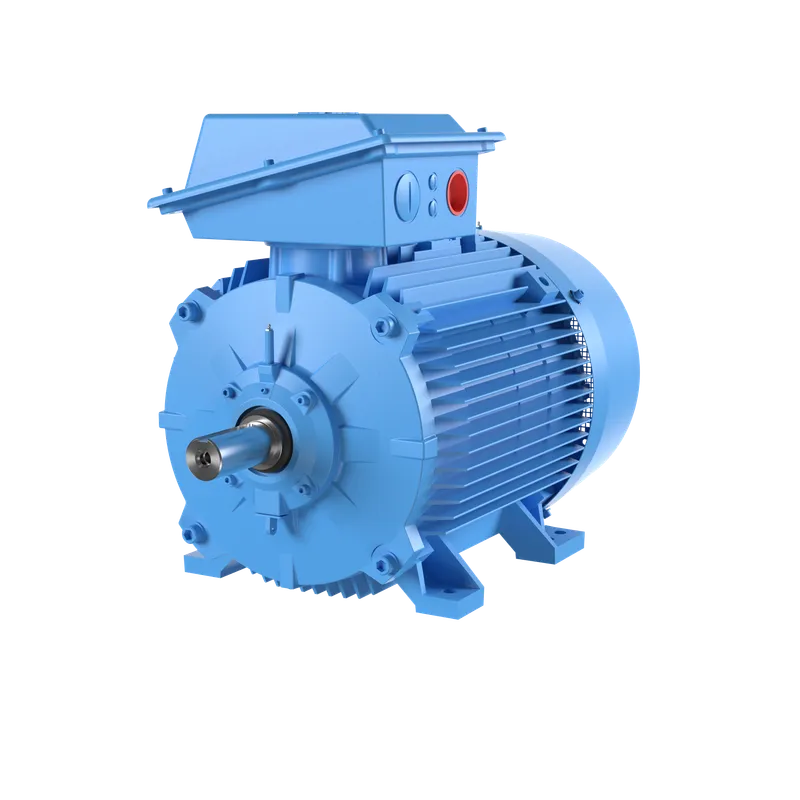

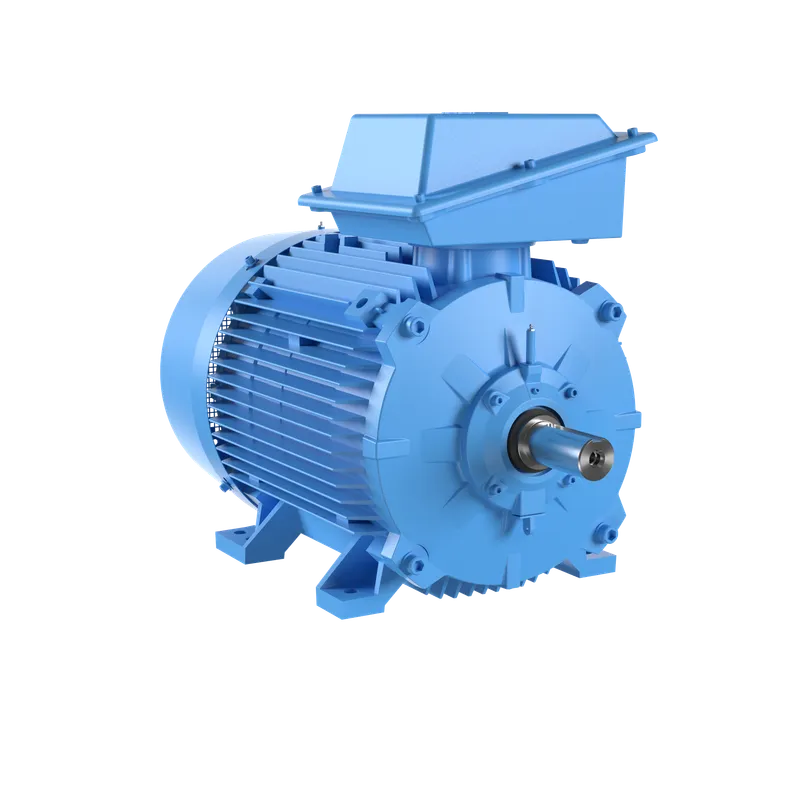

M2BAX 315SMB 4

MPN: 3GBA312220-ADMIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB 3GBA312220-ADMIN?

IE3 (BIS) Premium Efficiency Cast Iron Motors, 110 kW, 415 V (3GBA312220-ADMIN)

Specifications

Ordering

ABB Type Designation	M2BAX 315SMB 4
Invoice Description	M2BAX 315SMB 4
Product Name	3-Phase squirrel cage motor
Product Type	IBA3__M2BAX_IE3_CI
Country or Territory of Origin	India
Customs Tariff Number	85015381
Medium Description	110kW, 4 Poles, Frame Size 315, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA312220-ADMIN)
Short Description	110kW, 4P, Frame Size 315, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	110 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 95.4 %, Partial Load (75%) 95.4 %, Partial Load (50%) 94.4 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6319/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1246 mm mm
Product Net Height	875 mm mm
Product Net Width	644 mm mm
Product Net Weight	881 kg kg
Gross Weight	901 kg kg

External Classifications and Standards

UNSPSC

26101100
