ABB 3GBA311410-BDCIN

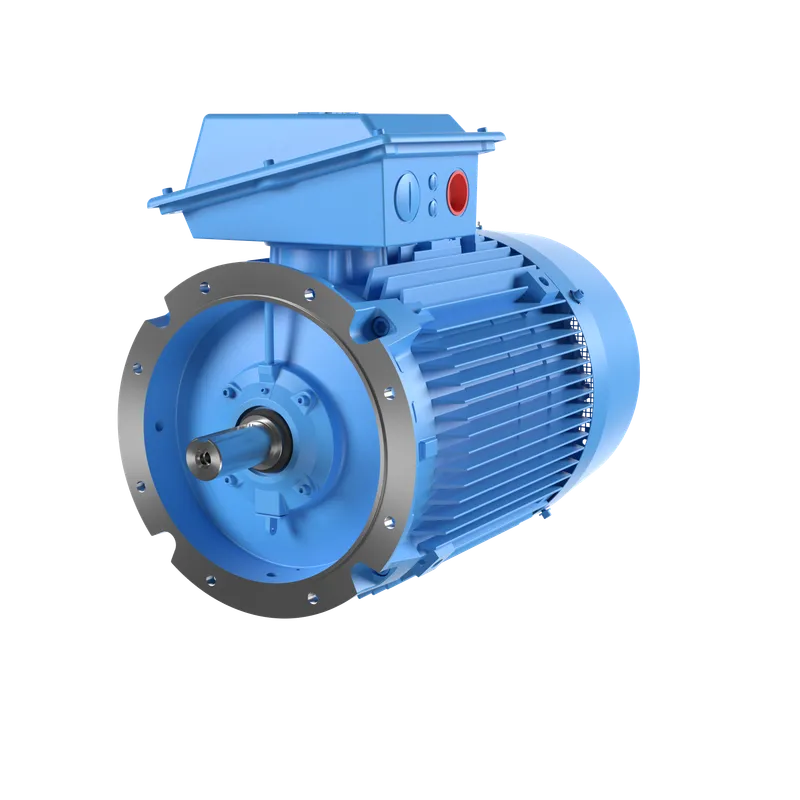

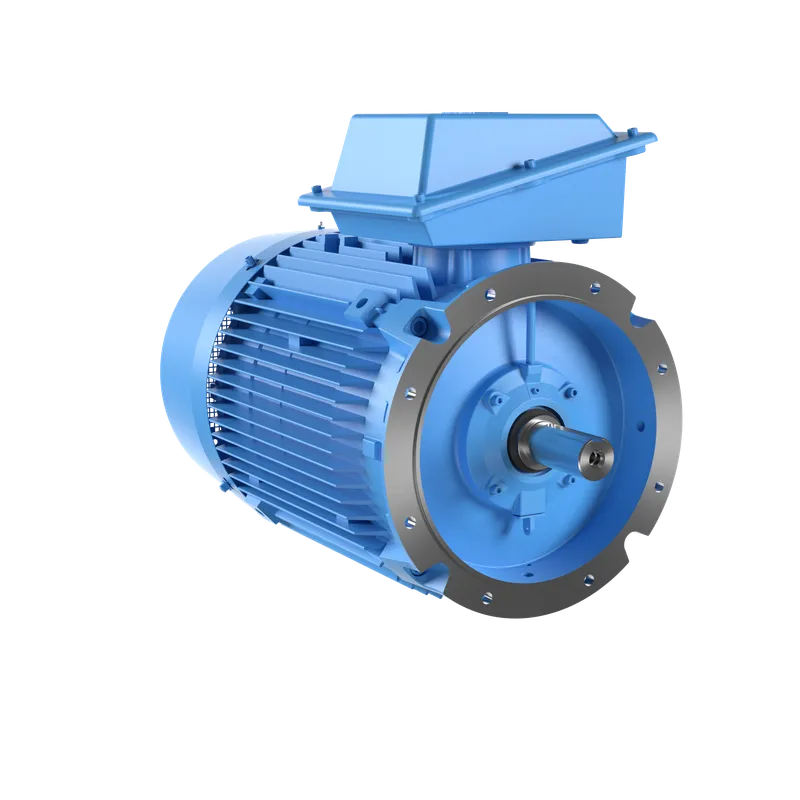

M2BAX 315MLA 2

MPN: 3GBA311410-BDCIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA311410-BDCIN?

IE2 (BIS) High Efficiency Cast Iron Motors, 200 kW, 400 V (3GBA311410-BDCIN)

Specifications

Ordering

ABB Type Designation	M2BAX 315MLA 2
Invoice Description	M2BAX 315MLA 2
Product Name	3-Phase squirrel cage motor
Product Type	IBA2__M2BAX_IE2_CI
Country or Territory of Origin	India
Customs Tariff Number	85015381
Medium Description	200kW, 2 Poles, Frame Size 315, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA311410-BDCIN)
Short Description	200kW, 2P, Frame Size 315, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	200 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 95.0 %, Partial Load (75%) 95.0 %, Partial Load (50%) 94.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6316/C3
Bearing NDE	6316/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	1326 mm mm
Product Net Height	890 mm mm
Product Net Width	660 mm mm
Product Net Weight	1127 kg kg
Gross Weight	1147 kg kg

External Classifications and Standards

UNSPSC

26101100
