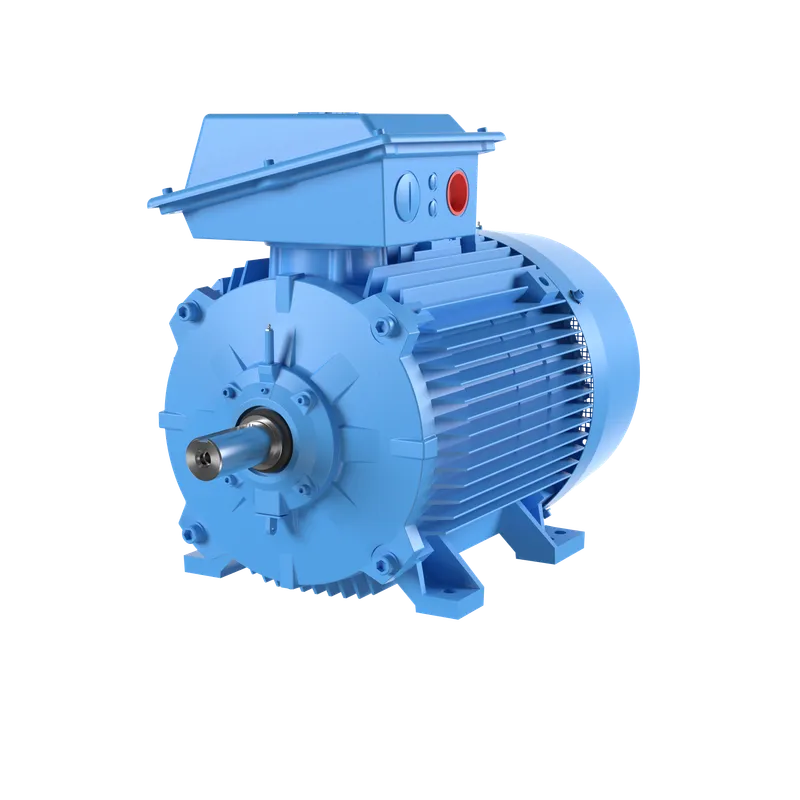

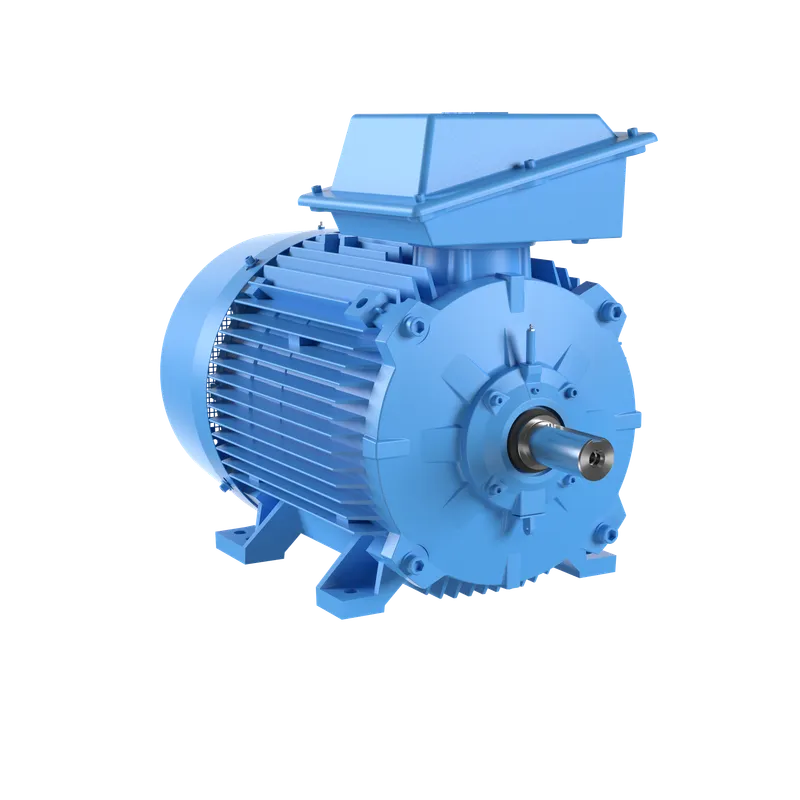

ABB 3GBA311230-ADH

M2BAX 315SMC 2

MPN: 3GBA311230-ADH
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA311230-ADH?

IE2 High Efficiency Cast Iron Motors, 160 kW, 400 V (3GBA311230-ADH)

Specifications

Ordering

ABB Type Designation	M2BAX 315SMC 2
Invoice Description	M2BAX 315SMC 2
Product Name	3-Phase squirrel cage motor
Product Type	EBA2__M2BAX_CI
Country or Territory of Origin	China
Customs Tariff Number	85015381
Replaced Product ID (OLD)	3GBA311230-ADL
Medium Description	160kW, 2 Poles, Frame Size 315, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA311230-ADH)
Short Description	160kW, 2P, Frame Size 315, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	160 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 94.8 %, Partial Load (75%) 95.0 %, Partial Load (50%) 94.4 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 95.0 %, Partial Load (75%) 94.8 %, Partial Load (50%) 93.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	315
Bearing	6316/C3
Bearing NDE	6316/C3
IM Class	IMB3 IM1001
Terminator Box Location	Top

Dimensions

Product Net Depth / Length	1216 mm mm
Product Net Height	849 mm mm
Product Net Width	644 mm mm
Product Net Weight	900 kg kg
Gross Weight	920 kg kg

Environmental

SCIP	d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC

26101100
