ABB 3GBA252210-BDCIN

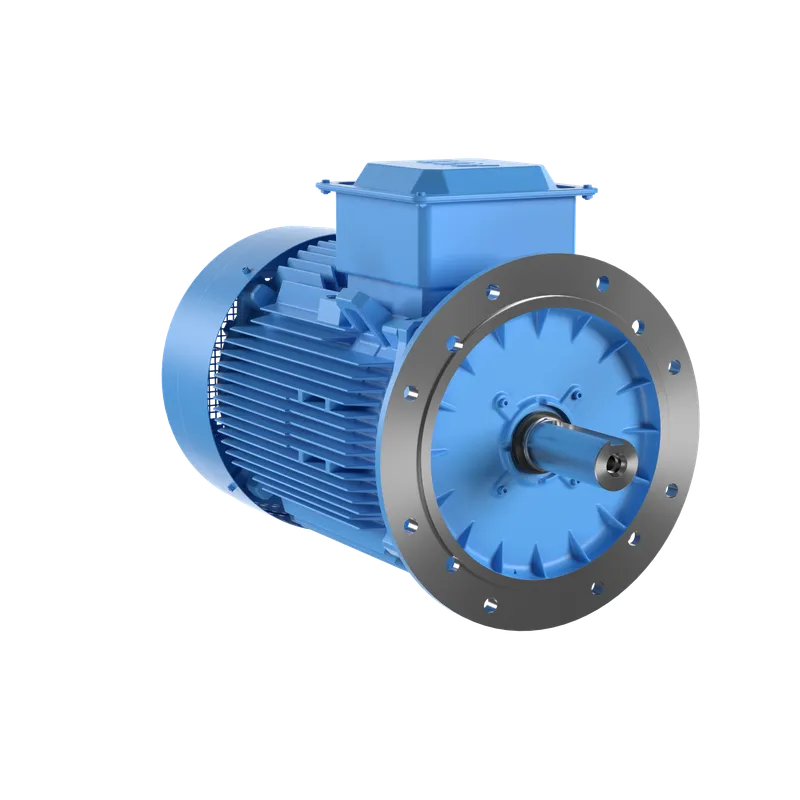

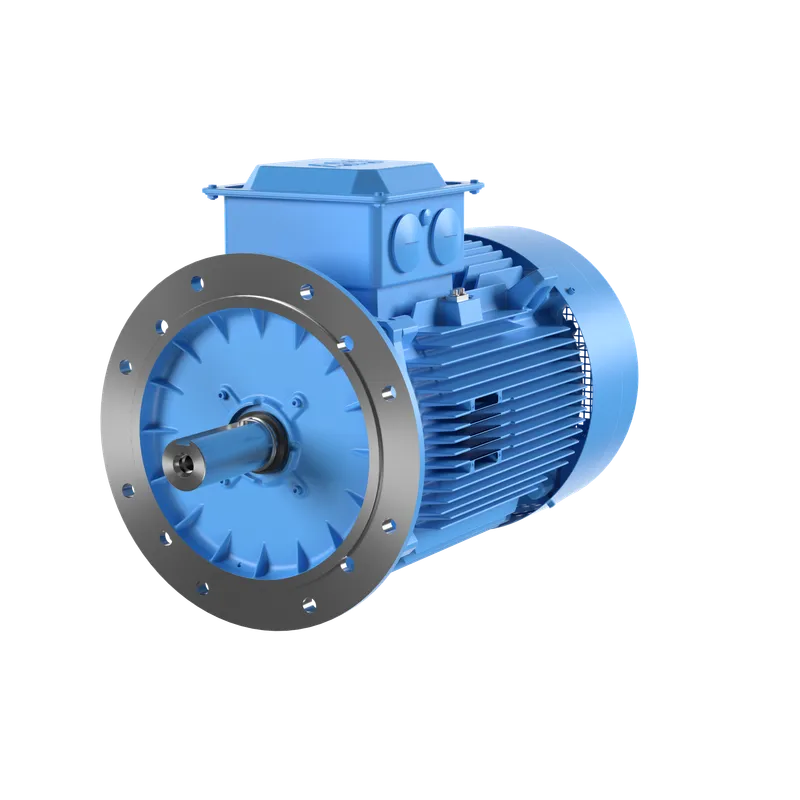

M2BAX 250SMA 4

MPN: 3GBA252210-BDCIN
Category: IEC Zone 2 & 22, Div 2 Triple-Certified Increased

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA252210-BDCIN?

IE2 (BIS) High Efficiency Cast Iron Motors, 55 kW, 415 V (3GBA252210-BDCIN)

Specifications

Ordering

ABB Type Designation	M2BAX 250SMA 4
Invoice Description	M2BAX 250SMA 4
Product Name	3-Phase squirrel cage motor
Product Type	IBA2__M2BAX_IE2_CI
Country or Territory of Origin	India
Customs Tariff Number	85015290
Medium Description	55kW, 4 Poles, Frame Size 250, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA252210-BDCIN)
Short Description	55kW, 4P, Frame Size 250, 3PH, 415V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	55 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 93.5 %, Partial Load (75%) 93.7 %, Partial Load (50%) 92.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	250
Bearing	6315-2Z/C3
Bearing NDE	6212-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	882 mm mm
Product Net Height	610 mm mm
Product Net Width	550 mm mm
Product Net Weight	344 kg kg
Gross Weight	354 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
