ABB 3GBA252210-ADDIN

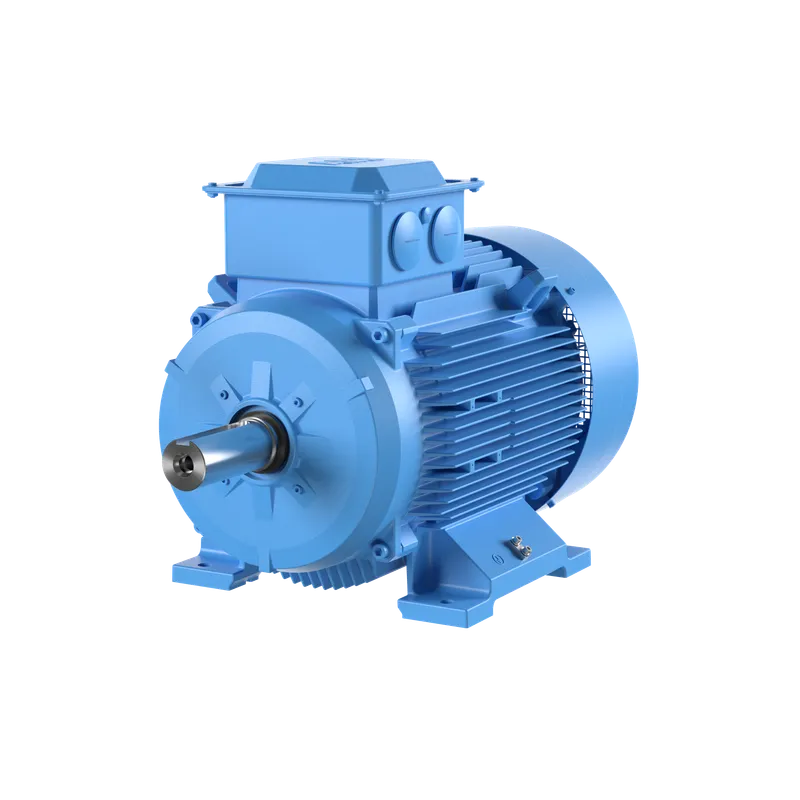

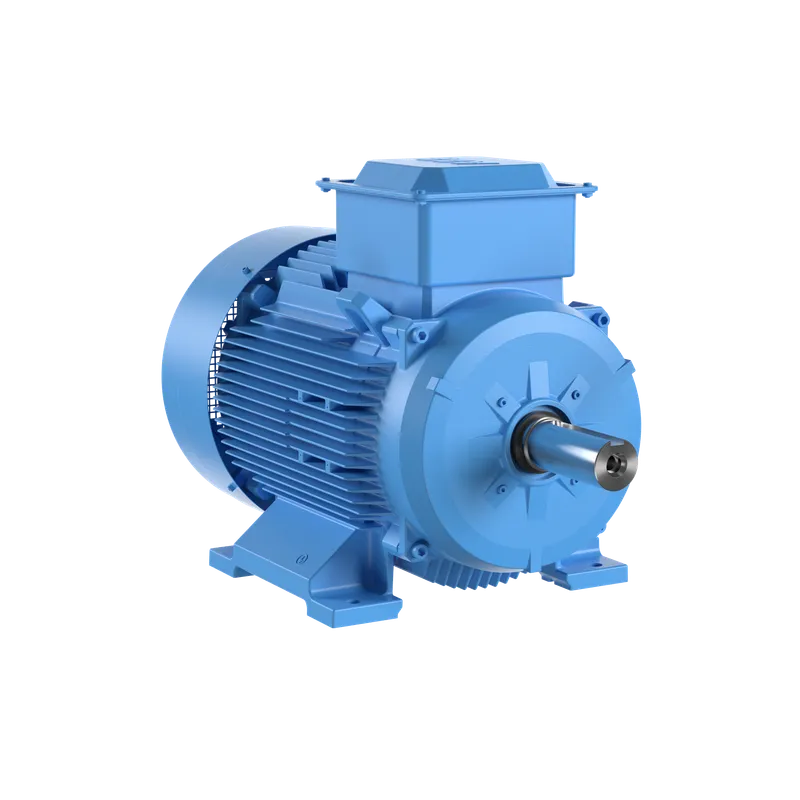

M2BAX 250SMA 4

MPN: 3GBA252210-ADDIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA252210-ADDIN?

IE3 (BIS) Premium Efficiency Cast Iron Motors, 55 kW, 415 V (3GBA252210-ADDIN)

Specifications

Ordering

ABB Type Designation	M2BAX 250SMA 4
Invoice Description	M2BAX 250SMA 4
Product Name	3-Phase squirrel cage motor
Product Type	IBA3__M2BAX_IE3_CI
Country or Territory of Origin	India
Customs Tariff Number	85015290
Medium Description	55kW, 4 Poles, Frame Size 250, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA252210-ADDIN)
Short Description	55kW, 4P, Frame Size 250, 3PH, 415V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	55 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 94.6 %, Partial Load (75%) 94.7 %, Partial Load (50%) 94.1 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	250
Bearing	6315-2Z/C3
Bearing NDE	6212-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	853 mm mm
Product Net Height	613 mm mm
Product Net Width	508 mm mm
Product Net Weight	358 kg kg
Gross Weight	368 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
