ABB 3GBA222220-AEF

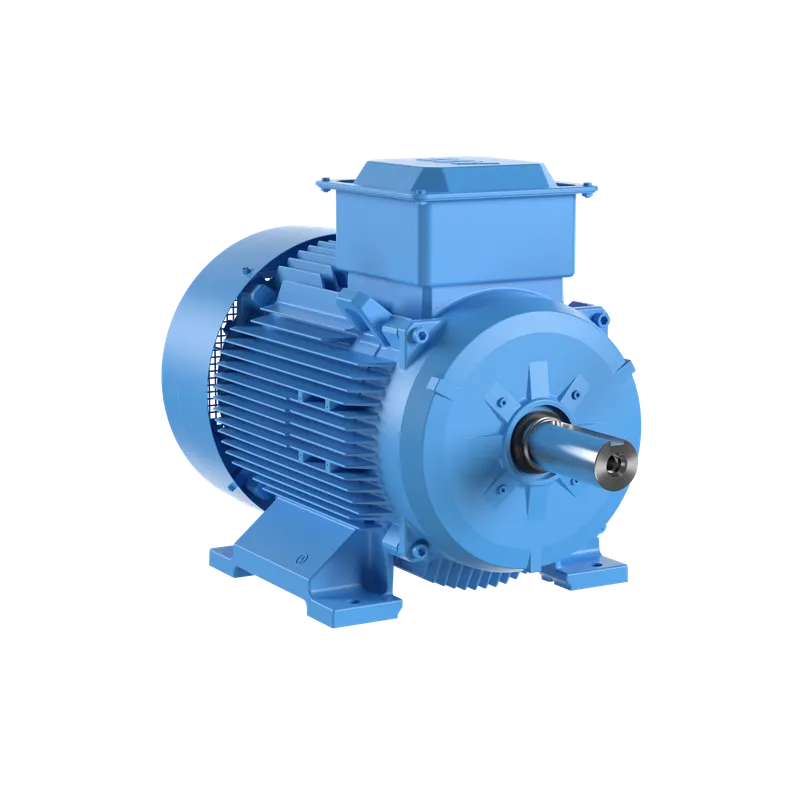

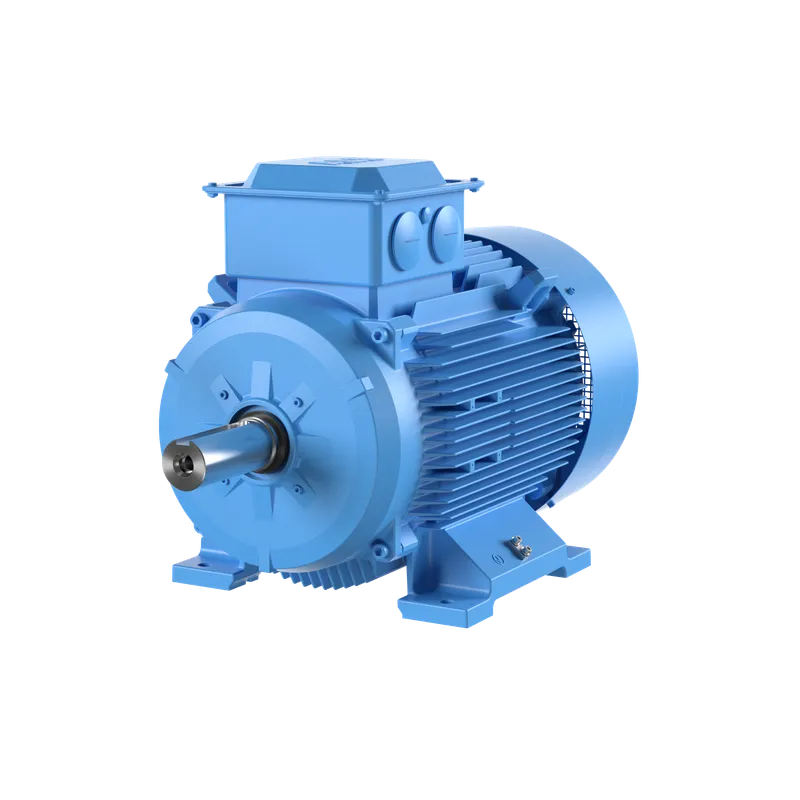

M2BAX 225SMB 4

MPN: 3GBA222220-AEF
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA222220-AEF?

IE3 Premium Efficiency Cast Iron Motors, 45 kW, 500 V (3GBA222220-AEF)

Specifications

Ordering

ABB Type Designation	M2BAX 225SMB 4
Invoice Description	M2BAX 225SMB 4
Product Name	3-Phase squirrel cage motor
Product Type	EBA3__M2BAX_CI
Country or Territory of Origin	China
Customs Tariff Number	85015290
Medium Description	45kW, 4 Poles, Frame Size 225, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA222220-AEF)
Short Description	45kW, 4P, Frame Size 225, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	500 V V
Frequency (f)	50 Hz Hz
Output Power	45 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 94.2 %, Partial Load (75%) 94.4 %, Partial Load (50%) 93.8 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 93.6 %, Partial Load (75%) 93.6 %, Partial Load (50%) 92.5 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Material	Cast Iron
Frame Size	225
Bearing	6213-2Z/C3
Bearing NDE	6210-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	854 mm mm
Product Net Height	539 mm mm
Product Net Width	435 mm mm
Product Net Weight	293 kg kg
Gross Weight	303 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC

26101100
