Home / ABB / Flameproof IEC Low voltage motors / ABB 3GBA202410-BEC

ABB

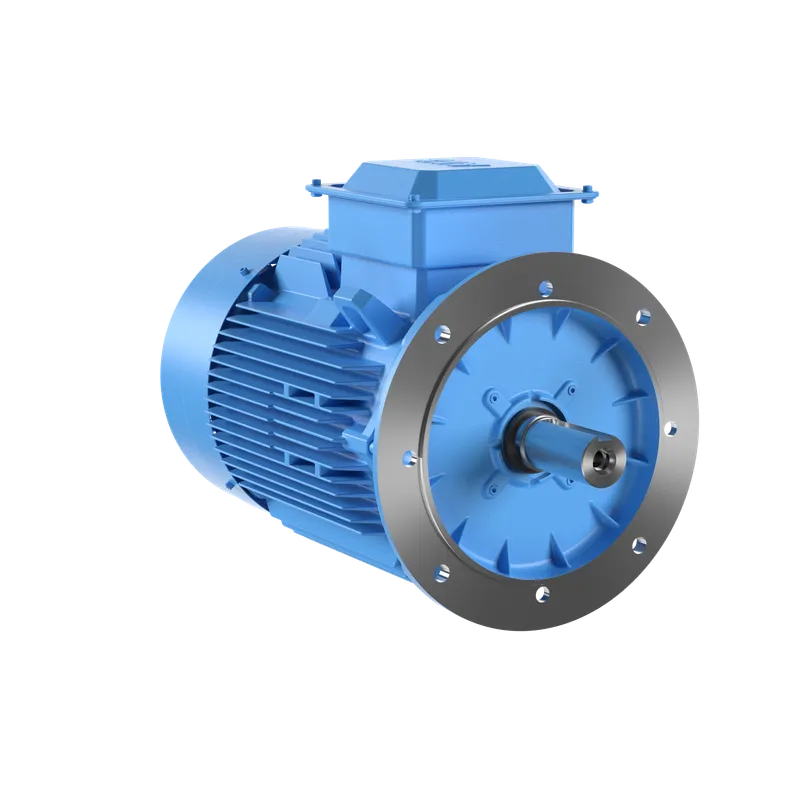

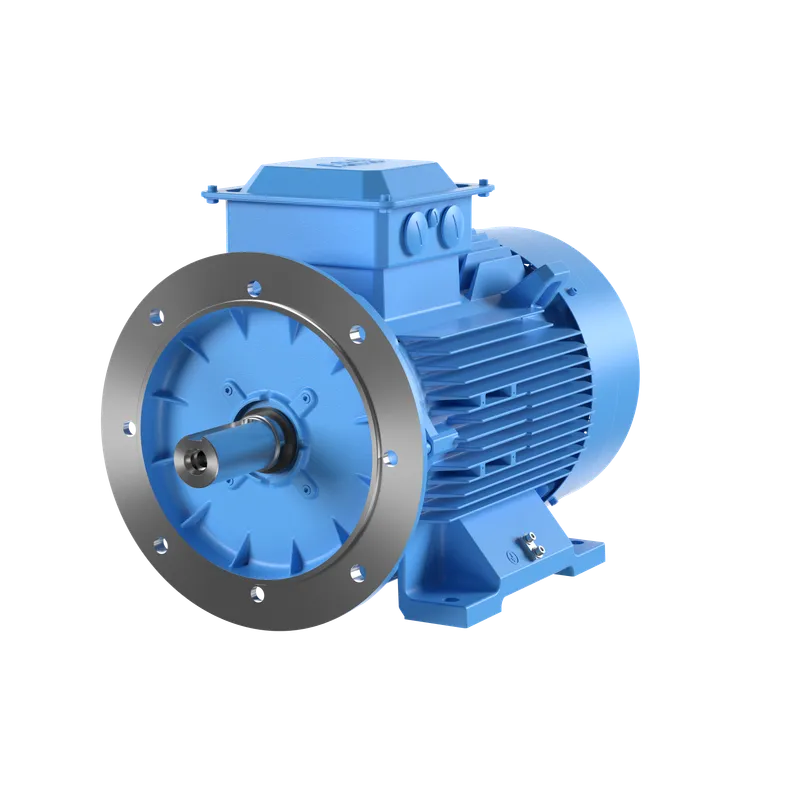

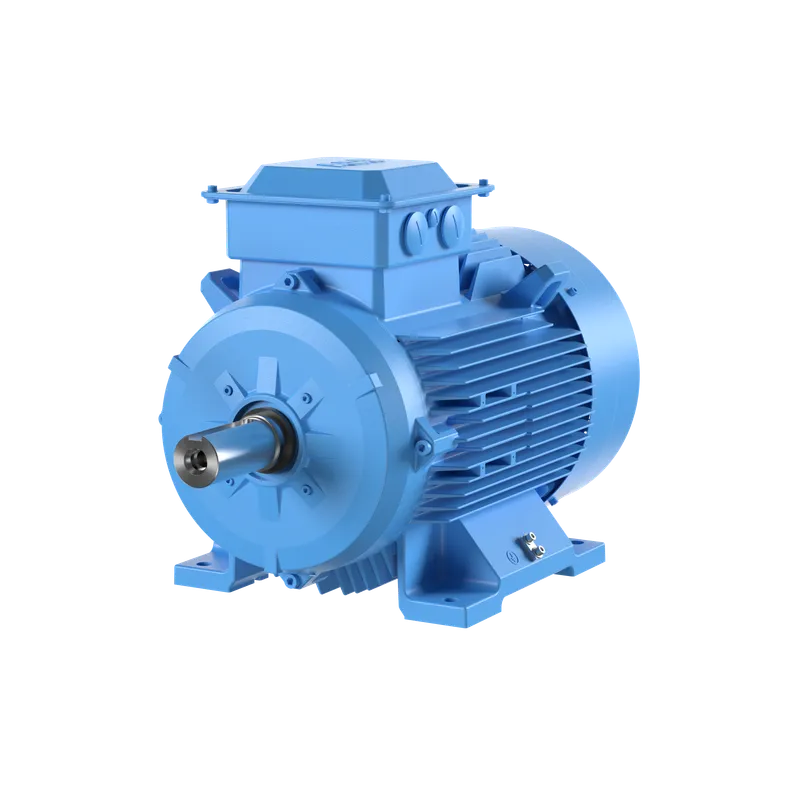

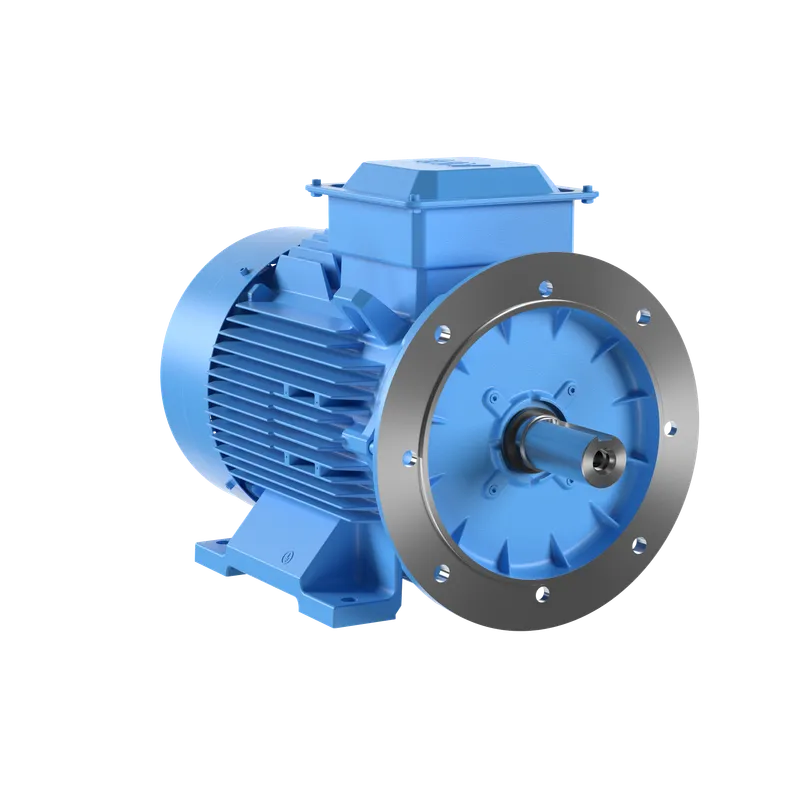

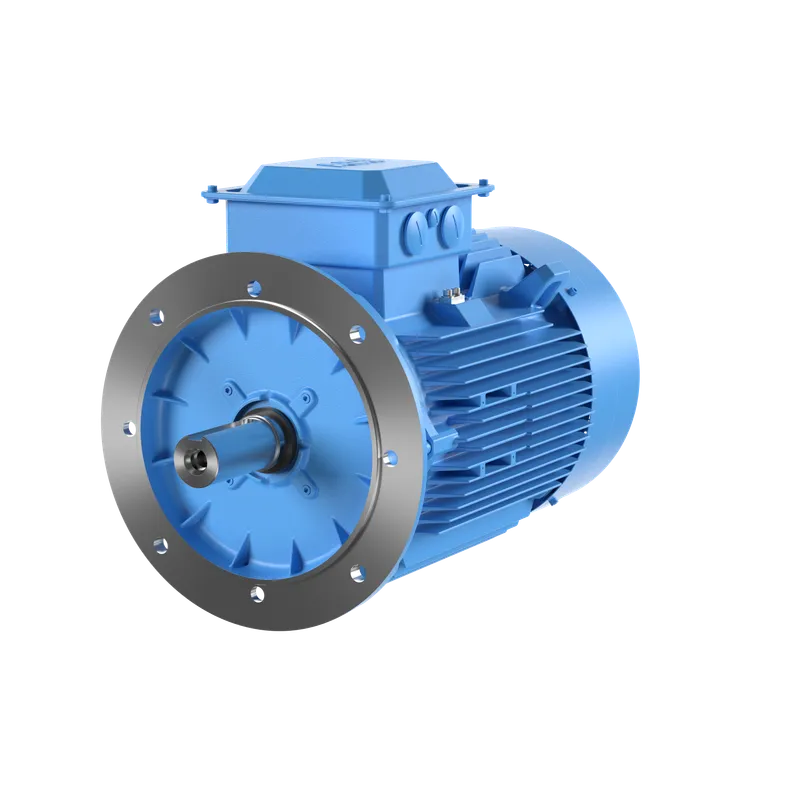

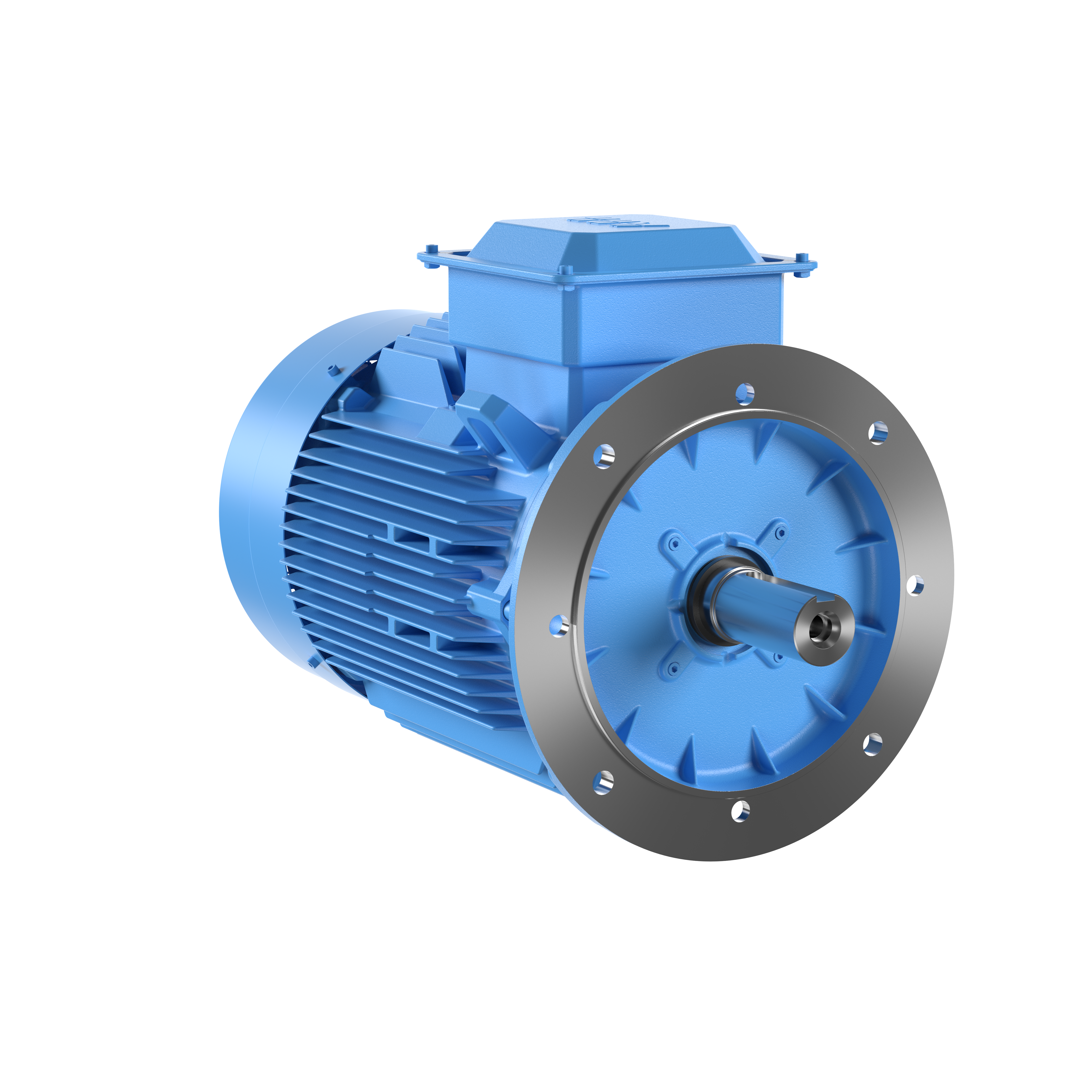

ABB 3GBA202410-BEC

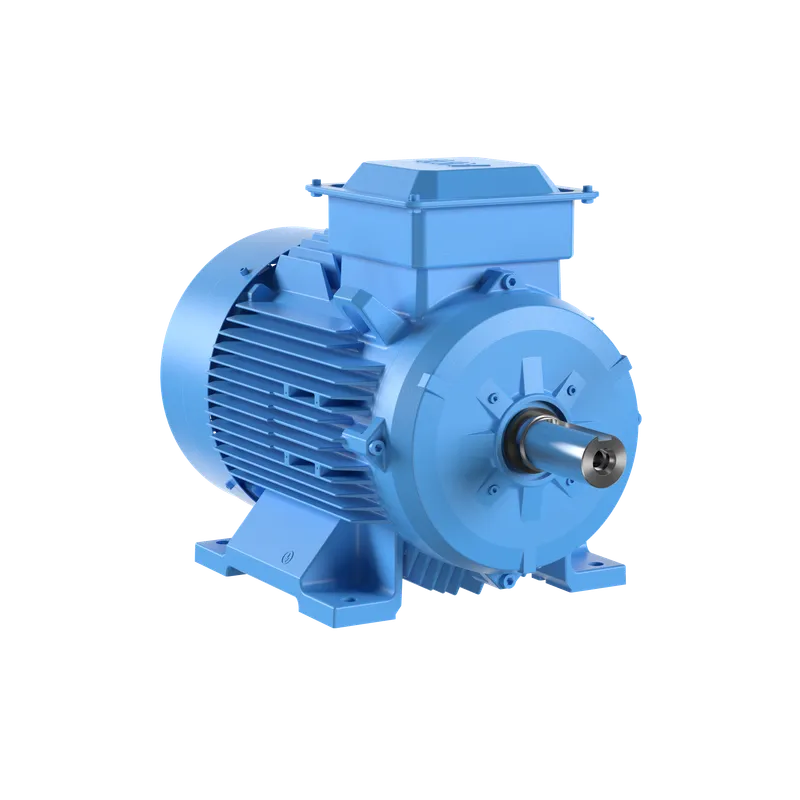

M2BAX 200MLA 4

MPN: 3GBA202410-BEC
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA202410-BEC?

(3GBA202410-BEC)

Specifications

Ordering

ABB Type Designation	M2BAX 200MLA 4
Invoice Description	M2BAX 200MLA 4
Product Name	3-Phase squirrel cage motor
Product Type	EBA2__M2BAX_CI
Country or Territory of Origin	China, Poland
Customs Tariff Number	85015230

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 92.3 %, Partial Load (75%) 92.8 %, Partial Load (50%) 93.0 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 91.7 %, Partial Load (75%) 91.7 %, Partial Load (50%) 91.2 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	E

Mechanical

Frame Size	200
Bearing	6212-2Z/C3
Bearing NDE	6209-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	222 kg kg
Gross Weight	232 kg kg

Environmental

WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP	d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC

26101100
