ABB

ABB 3GBA184410-ADFCN

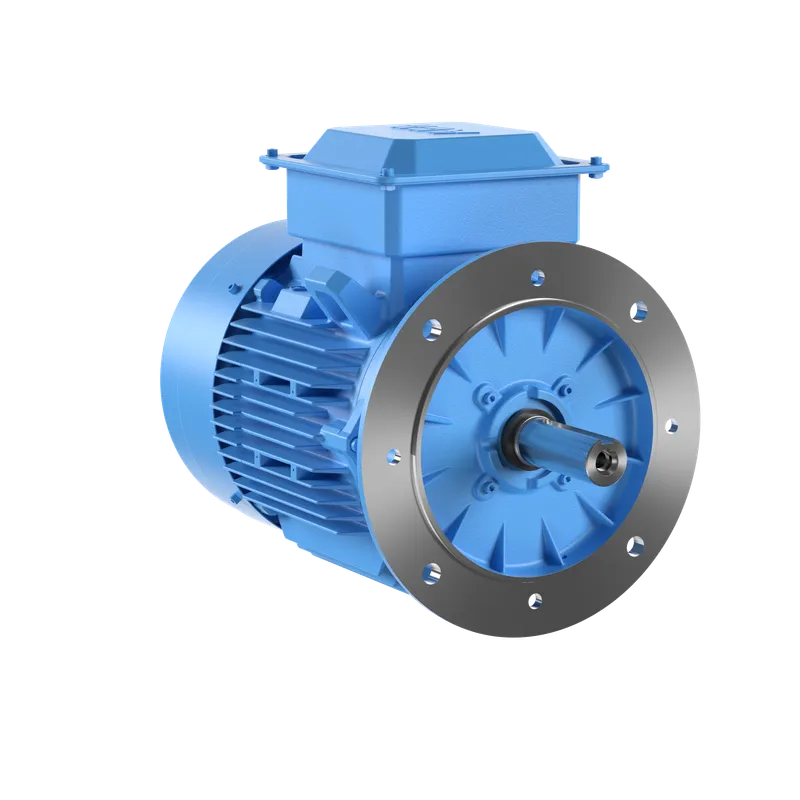

M2BAX 180MLA 8

MPN: 3GBA184410-ADFCN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA184410-ADFCN?

(3GBA184410-ADFCN)

Specifications

Ordering

ABB Type Designation	M2BAX 180MLA 8
Invoice Description	M2BAX 180MLA 8
Product Name	3-Phase squirrel cage motor
Product Type	CBA3__M2BAX_CI
Country or Territory of Origin	China
Customs Tariff Number	85015230
Medium Description	?kW, 8P, Frame Size 180, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA184410-ADFCN) kW
Short Description	?kW, 8P, Frame Size 180, 3PH, 400V, ?Hz, IP55, IMB3/IM1001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 88.6 %, Partial Load (75%) 88.9 %, Partial Load (50%) 87.7 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 89.5 %, Partial Load (75%) 88.6 %, Partial Load (50%) 86.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	180
Bearing	6310-2Z/C3
Bearing NDE	6309-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	188 kg kg
Gross Weight	198 kg kg

External Classifications and Standards

UNSPSC

26101100
