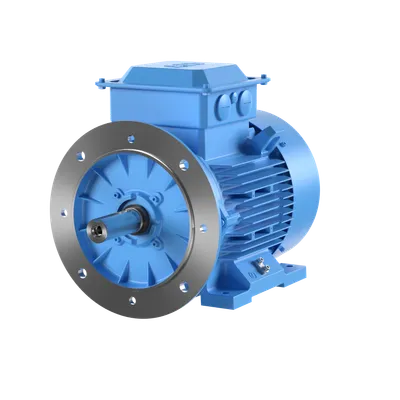

ABB 3GBA183410-BDPIN

M2BAX 180MLA 6

MPN: 3GBA183410-BDPIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA183410-BDPIN?

IE3 (BIS) Premium Efficiency Cast Iron Motors, 15 kW, 415 V (3GBA183410-BDPIN)

Specifications

Ordering

ABB Type Designation	M2BAX 180MLA 6
Invoice Description	M2BAX 180MLA 6
Product Name	3-Phase squirrel cage motor
Product Type	IBA3__M2BAX_IE3_CI
Country or Territory of Origin	India
Customs Tariff Number	85015230
Medium Description	15kW, 6 Poles, Frame Size 180, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA183410-BDPIN)
Short Description	15kW, 6P, Frame Size 180, 3PH, 415V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	15 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 91.2 %, Partial Load (75%) 92.2 %, Partial Load (50%) 92.2 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	180
Bearing	6310-2Z/C3
Bearing NDE	6210-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	698 mm mm
Product Net Height	463 mm mm
Product Net Width	373 mm mm
Product Net Weight	194 kg kg
Gross Weight	204 kg kg

External Classifications and Standards

UNSPSC

26101100
