ABB 3GBA181410-ADDIN

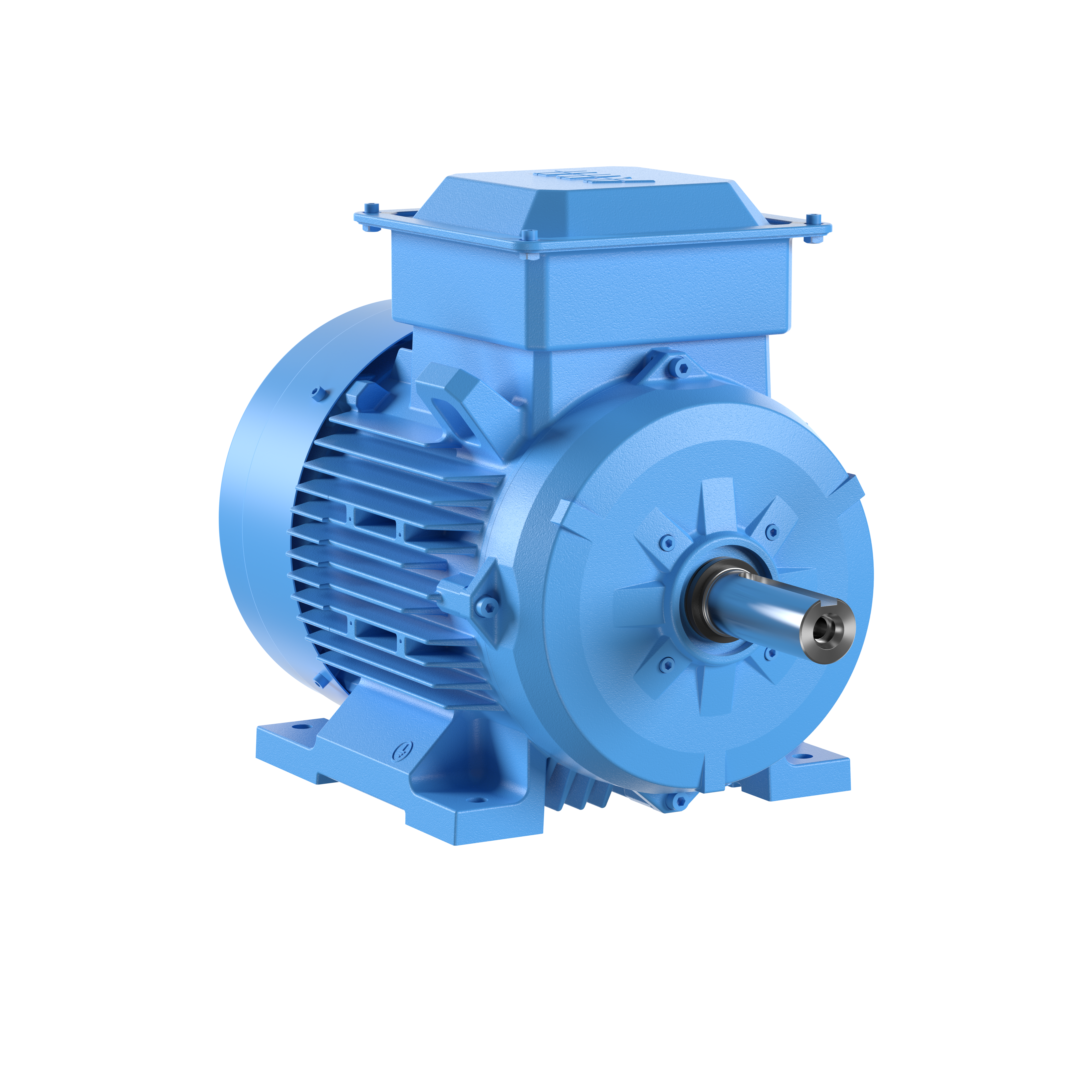

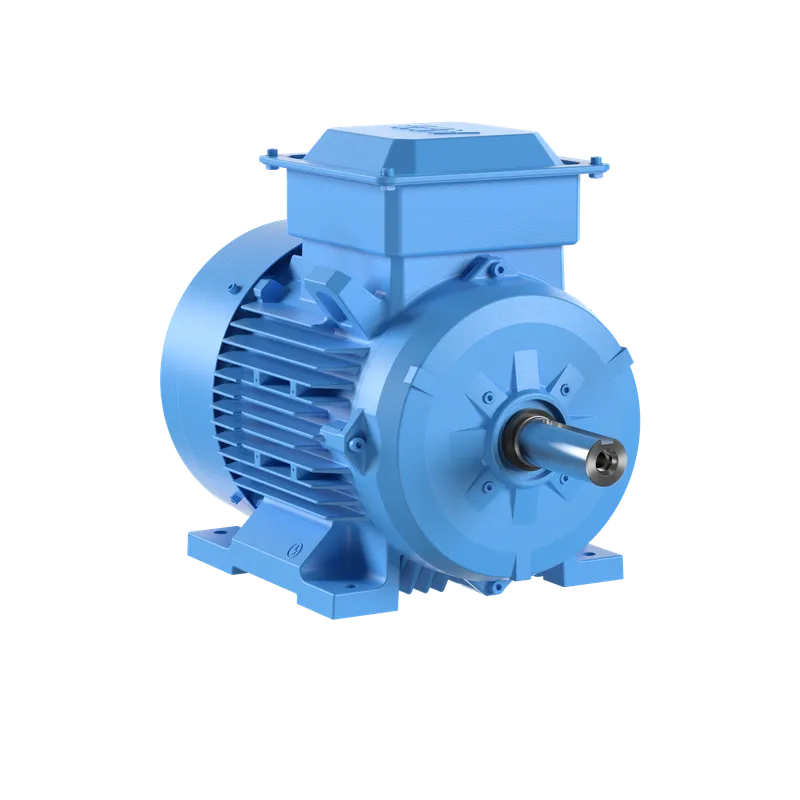

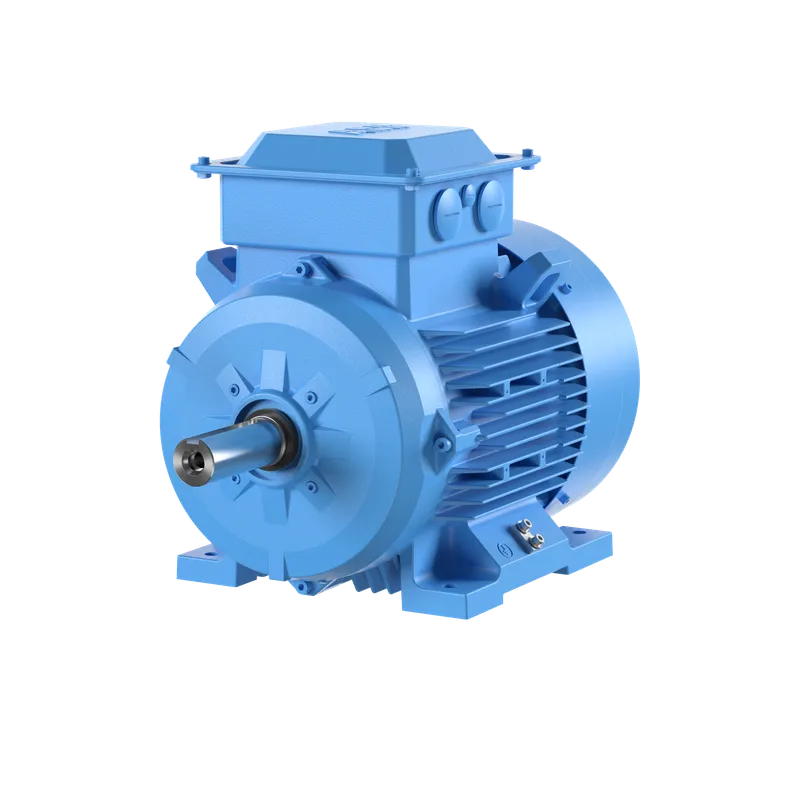

M2BAX 180MLA 2

MPN: 3GBA181410-ADDIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA181410-ADDIN?

IE3 (BIS) Premium Efficiency Cast Iron Motors, 22 kW, 415 V (3GBA181410-ADDIN)

Specifications

Ordering

ABB Type Designation	M2BAX 180MLA 2
Invoice Description	M2BAX 180MLA 2
Product Name	3-Phase squirrel cage motor
Product Type	IBA3__M2BAX_IE3_CI
Country or Territory of Origin	India
Customs Tariff Number	85015230
Medium Description	22kW, 2 Poles, Frame Size 180, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA181410-ADDIN)
Short Description	22kW, 2P, Frame Size 180, 3PH, 415V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	22 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 92.7 %, Partial Load (75%) 93.2 %, Partial Load (50%) 92.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	180
Bearing	6310-2Z/C3
Bearing NDE	6209-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	728 mm mm
Product Net Height	454 mm mm
Product Net Width	380 mm mm
Product Net Weight	181 kg kg
Gross Weight	191 kg kg

Environmental

WEEE Category

4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
