ABB 3GBA161410-HDCIN

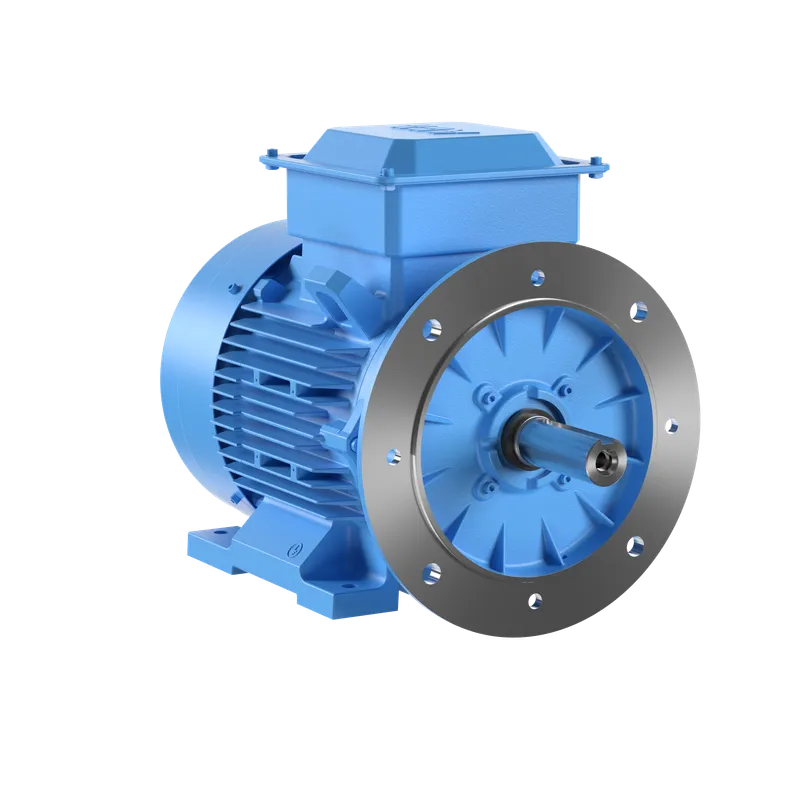

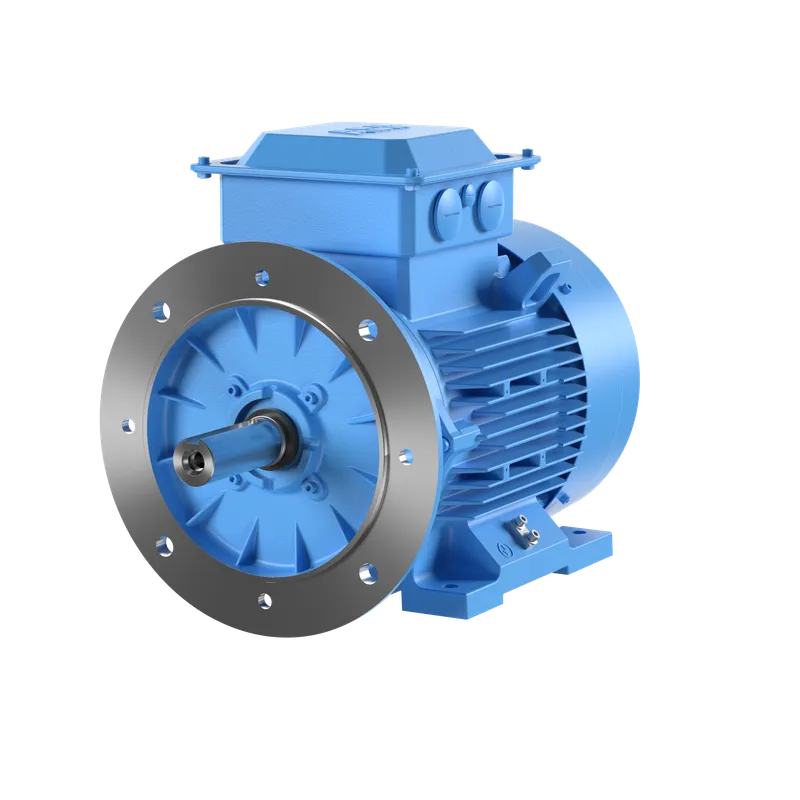

M2BAX 160MLA 2

MPN: 3GBA161410-HDCIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA161410-HDCIN?

IE2 (BIS) High Efficiency Cast Iron Motors, 11 kW, 415 V (3GBA161410-HDCIN)

Specifications

Ordering

ABB Type Designation	M2BAX 160MLA 2
Invoice Description	M2BAX 160MLA 2
Product Name	3-Phase squirrel cage motor
Product Type	IBA2__M2BAX_IE2_CI
Country or Territory of Origin	India
Customs Tariff Number	85015230
Medium Description	11kW, 2 Poles, Frame Size 160, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBA161410-HDCIN)
Short Description	11kW, 2P, Frame Size 160, 3PH, 415V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	11 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 89.4 %, Partial Load (75%) 89.7 %, Partial Load (50%) 88.2 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	160
Bearing	6209-2Z/C3
Bearing NDE	6209-2Z/C3
IM Class	IMB35 IM2001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	586 mm mm
Product Net Height	429 mm mm
Product Net Width	350 mm mm
Product Net Weight	113 kg kg
Gross Weight	123 kg kg

External Classifications and Standards

UNSPSC

26101100
