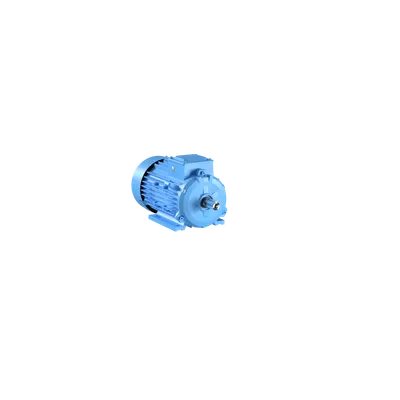

ABB 3GBA132110-ADCIN

M2BAX 132SA 4

MPN: 3GBA132110-ADCIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA132110-ADCIN?

IE2 (BIS) High Efficiency Cast Iron Motors, 5.5 kW, 415 V (3GBA132110-ADCIN)

Specifications

Ordering

ABB Type Designation	M2BAX 132SA 4
Invoice Description	M2BAX 132SA 4
Product Name	3-Phase squirrel cage motor
Product Type	IBA2__M2BAX_IE2_CI
Country or Territory of Origin	India
Customs Tariff Number	85015220
Medium Description	5.5kW, 4 Poles, Frame Size 132, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA132110-ADCIN)
Short Description	5.5kW, 4P, Frame Size 132, 3PH, 415V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	5.5 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 87.7 %, Partial Load (75%) 88.4 %, Partial Load (50%) 87.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	482 mm mm
Product Net Height	302 mm mm
Product Net Width	270 mm mm
Product Net Weight	57 kg kg
Gross Weight	62 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
