Home / ABB / Flameproof IEC Low voltage motors / ABB 3GBA131210-BSD

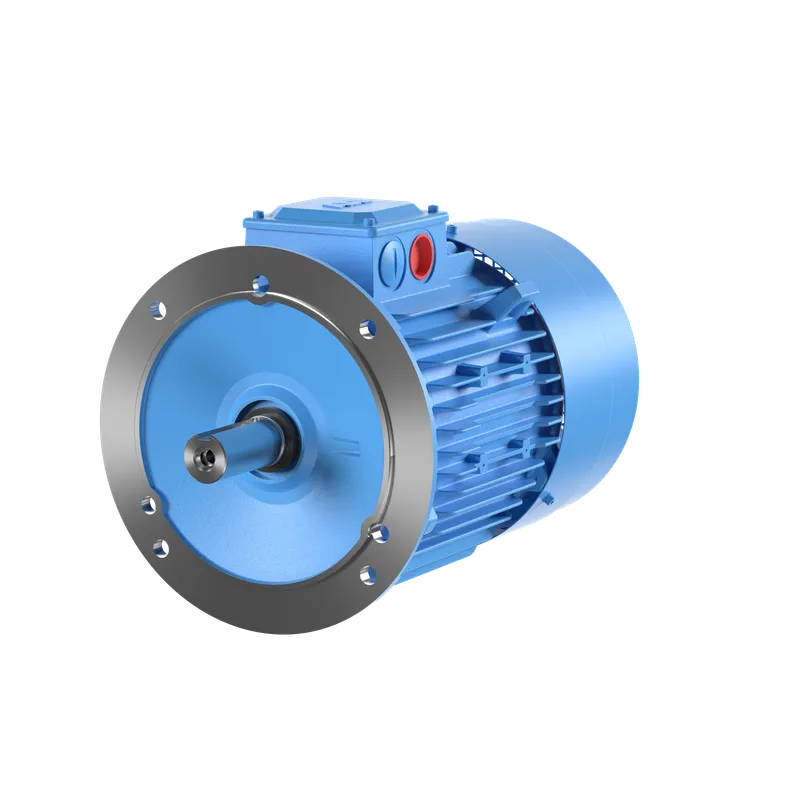

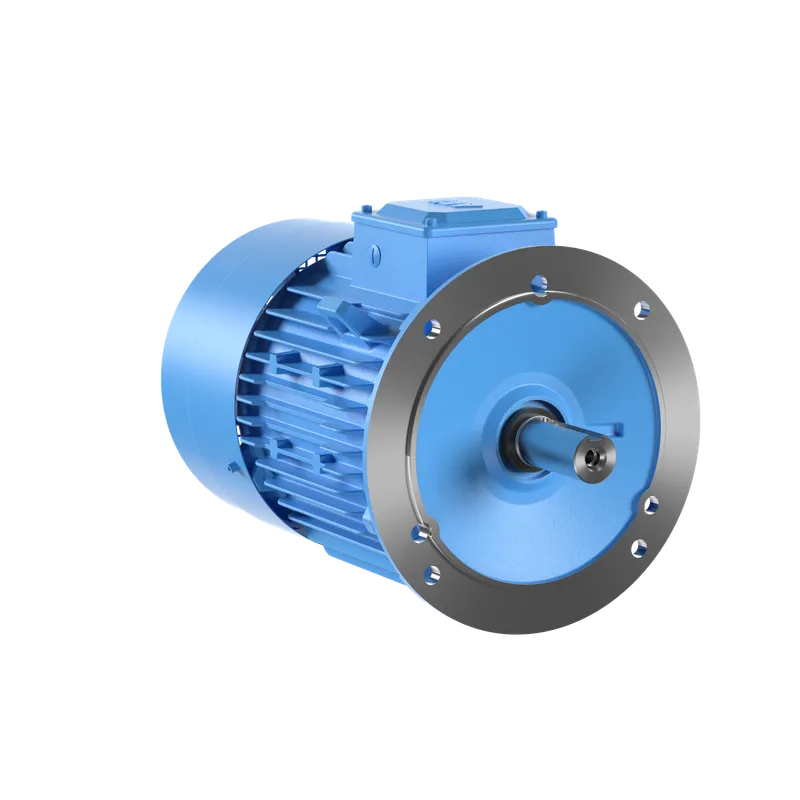

ABB 3GBA131210-BSD

M2BAX 132SMA 2

MPN: 3GBA131210-BSD
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA131210-BSD?

IE3 Premium Efficiency Cast Iron Motors, 5.5 kW, 400 V (3GBA131210-BSD)

Specifications

Ordering

ABB Type Designation	M2BAX 132SMA 2
Invoice Description	M2BAX 132SMA 2
Product Name	3-Phase squirrel cage motor
Product Type	EBA3__M2BAX_CI
Country or Territory of Origin	China
Customs Tariff Number	85015220
Stocked At (Warehouses)	Menden, Germany, Shanghai, China
Medium Description	5.5kW, 2 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA131210-BSD)
Short Description	5.5kW, 2P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	5.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 89.2 %, Partial Load (75%) 89.8 %, Partial Load (50%) 89.2 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 89.5 %, Partial Load (75%) 89.3 %, Partial Load (50%) 87.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	521 mm mm
Product Net Height	302 mm mm
Product Net Width	262 mm mm
Product Net Weight	62 kg kg
Gross Weight	67 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC

26101100
