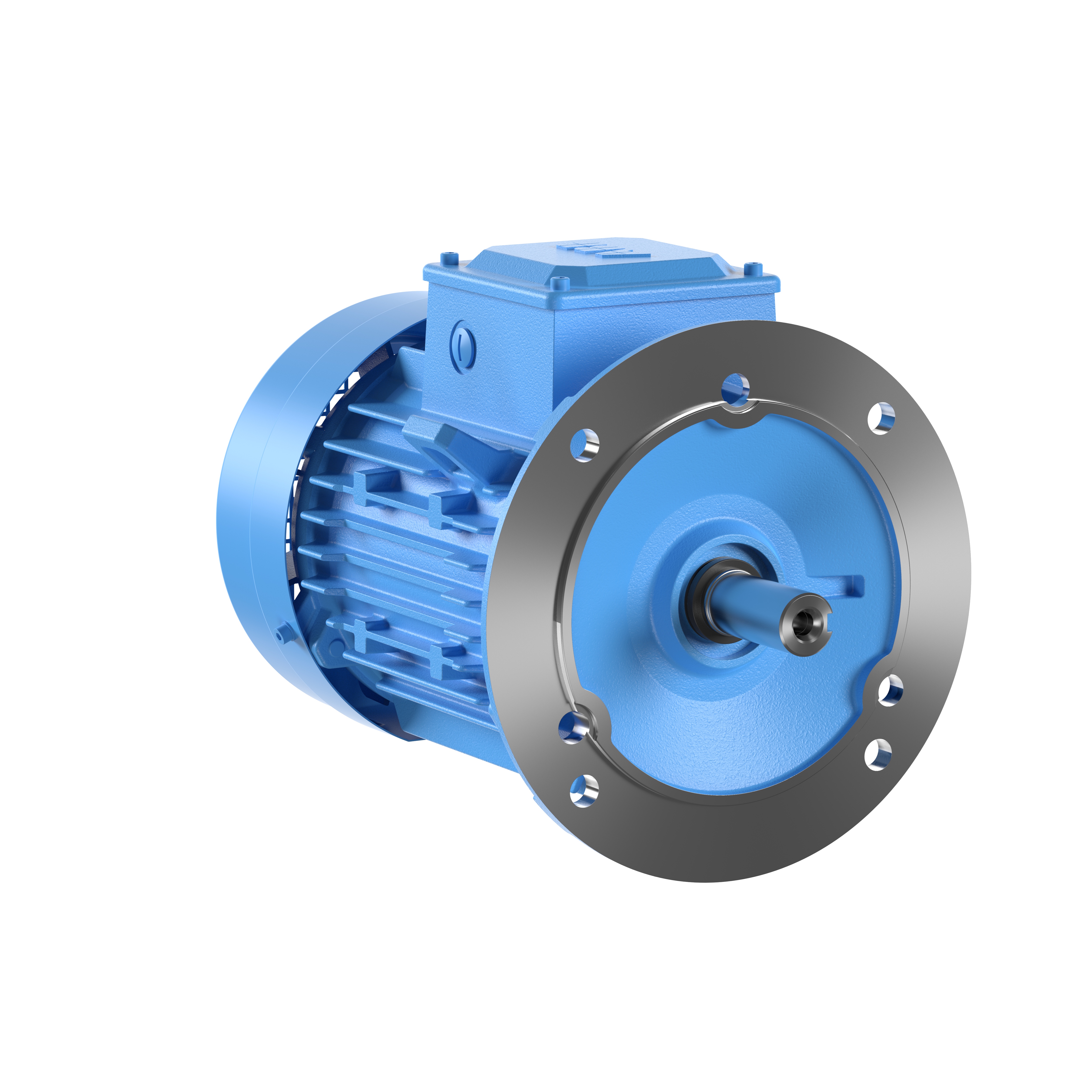

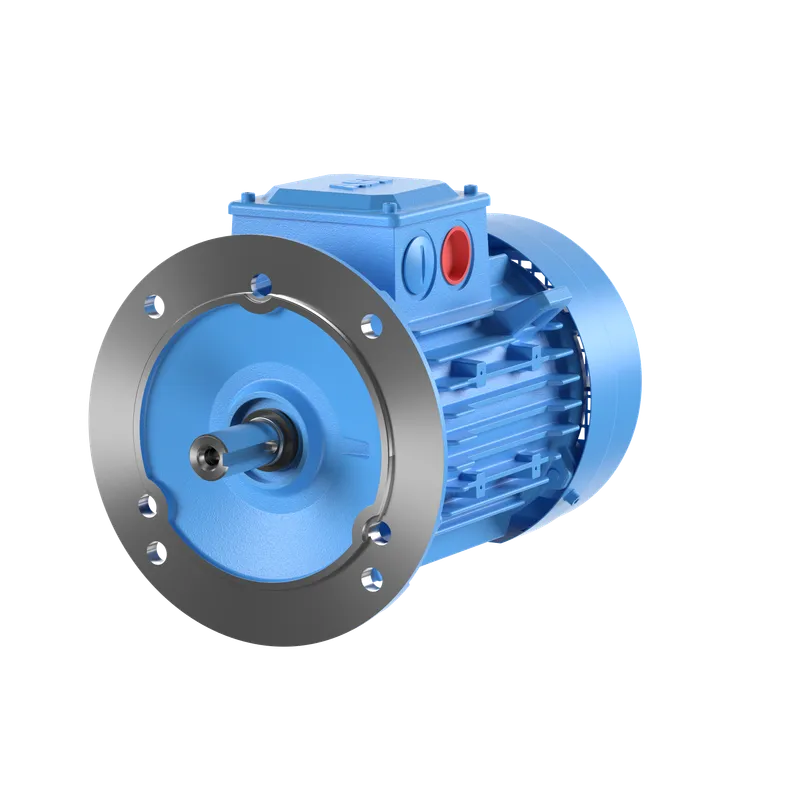

ABB 3GBA113310-BSC
M2BAX 112MA 6
- MPN
- 3GBA113310-BSC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GBA113310-BSC?
IE2 High Efficiency Cast Iron Motors, 2.2 kW, 400 V (3GBA113310-BSC)
Specifications
Ordering
| ABB Type Designation | M2BAX 112MA 6 |
| Invoice Description | M2BAX 112MA 6 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | EBA2__M2BAX_CI |
| Country or Territory of Origin | China |
| Customs Tariff Number | 85015220 |
| Stocked At (Warehouses) | Shanghai, China |
| Medium Description | 2.2kW, 6 Poles, Frame Size 112, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA113310-BSC) |
| Short Description | 2.2kW, 6P, Frame Size 112, 3PH, 400V, 50Hz, IP55, IMB5/IM3001 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 400 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 2.2 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2, Full Load (100%) 81.8 %, Partial Load (75%) 80.4 %, Partial Load (50%) 77.4 % |
| IE Class Data (60 Hz) | IE Class IE1, Full Load (100%) 78.5 %, Partial Load (75%) 75.6 %, Partial Load (50%) 70.9 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 6 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 112 |
| Bearing | 6206-2Z/C3 |
| Bearing NDE | 6205-2Z/C3 |
| Lubrication | For life |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 411 mm mm |
| Product Net Height | 252 mm mm |
| Product Net Width | 230 mm mm |
| Product Net Weight | 38 kg kg |
| Gross Weight | 43 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland |
External Classifications and Standards
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
