ABB 3GBA101510-BDPIN

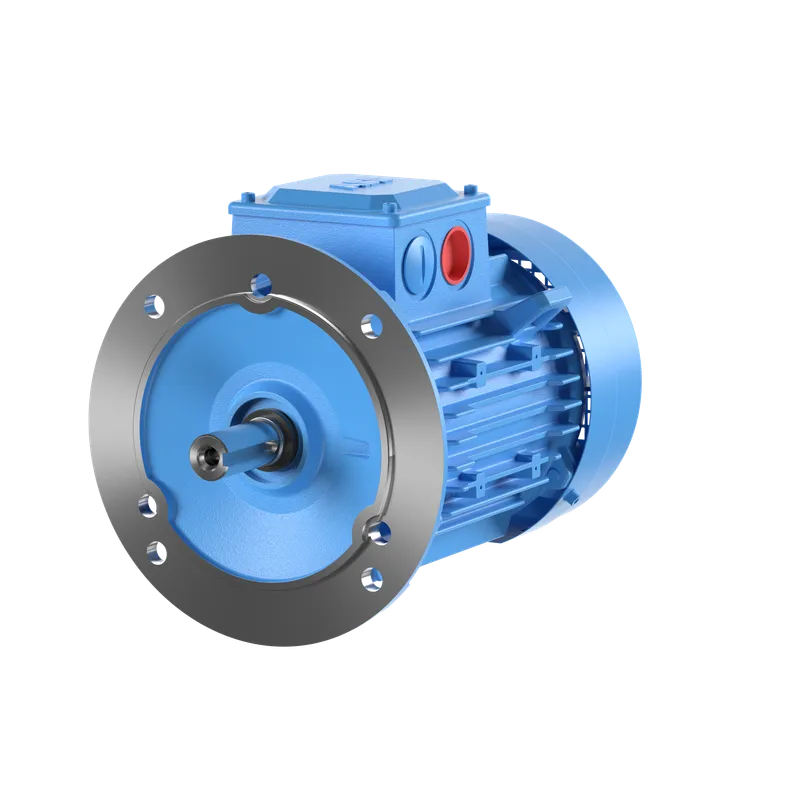

M2BAX 100LA 2

MPN: 3GBA101510-BDPIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA101510-BDPIN?

IE3 (BIS) Premium Efficiency Cast Iron Motors, 3.7 kW, 415 V (3GBA101510-BDPIN)

Specifications

Ordering

ABB Type Designation	M2BAX 100LA 2
Invoice Description	M2BAX 100LA 2
Product Name	3-Phase squirrel cage motor
Product Type	IBA3__M2BAX_IE3_CI
Country or Territory of Origin	India
Customs Tariff Number	85015220
Medium Description	3.7kW, 2P, Frame Size 100, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA101510-BDPIN)
Short Description	3.7kW, 2P, Frame Size 100, 3PH, 415V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	3.7 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 87.8 %, Partial Load (75%) 89.4 %, Partial Load (50%) 89.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	100
Bearing	6206-2Z/C3
Bearing NDE	6205-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	414 mm mm
Product Net Height	267 mm mm
Product Net Width	250 mm mm
Product Net Weight	35 kg kg
Gross Weight	40 kg kg

External Classifications and Standards

UNSPSC

26101100
