ABB 3GBA094110-BSCIN

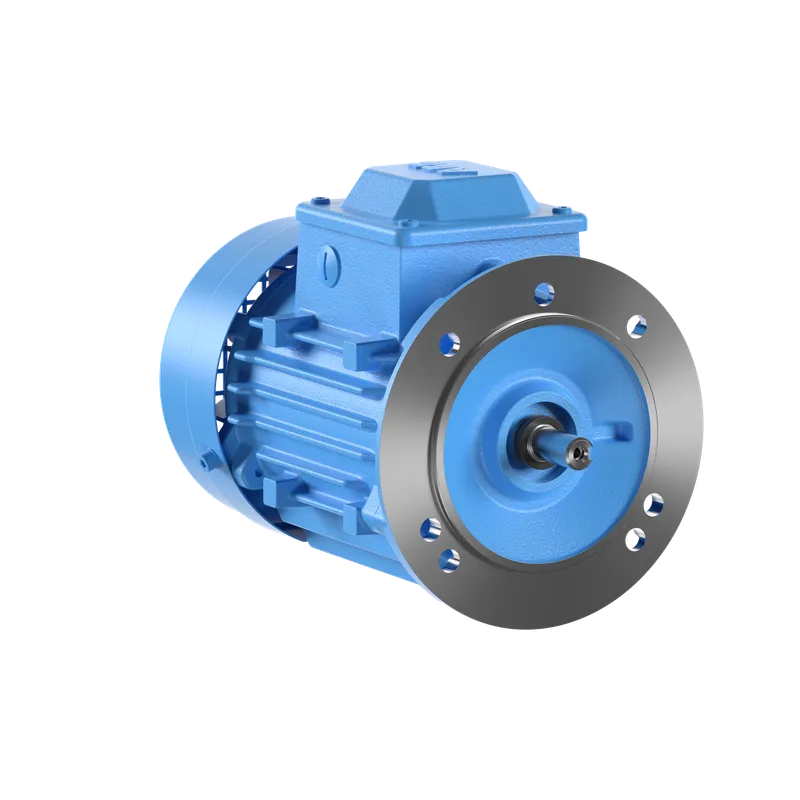

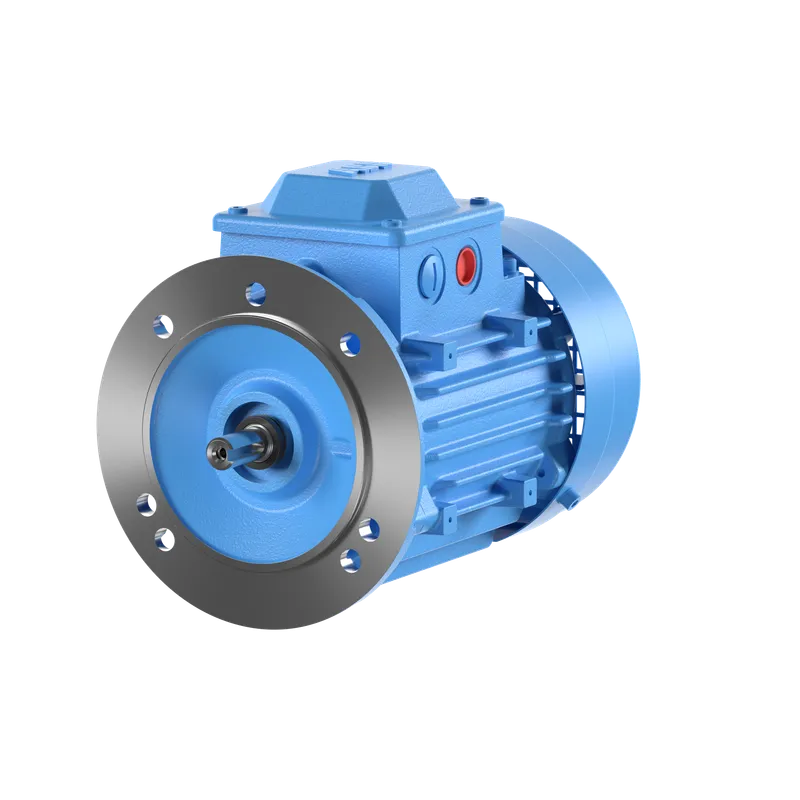

M2BAX 90SA 8

MPN: 3GBA094110-BSCIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA094110-BSCIN?

IE2 (BIS) High Efficiency Cast Iron Motors, 0.37 kW, 415 V (3GBA094110-BSCIN)

Specifications

Ordering

ABB Type Designation	M2BAX 90SA 8
Invoice Description	M2BAX 90SA 8
Product Name	3-Phase squirrel cage motor
Product Type	IBA2__M2BAX_IE2_CI
Country or Territory of Origin	India
Customs Tariff Number	85015100
Medium Description	0.37kW, 8 Poles, Frame Size 90, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA094110-BSCIN)
Short Description	0.37kW, 8P, Frame Size 90, 3PH, 415V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	0.37 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 56.1 %, Partial Load (75%) 53.0 %, Partial Load (50%) 43.9 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	90
Bearing	6205-2Z/C3
Bearing NDE	6204-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	335 mm mm
Product Net Height	227 mm mm
Product Net Width	200 mm mm
Product Net Weight	21 kg kg
Gross Weight	24 kg kg

External Classifications and Standards

UNSPSC

26101100
