ABB

ABB 3GBA091010-BSDCN

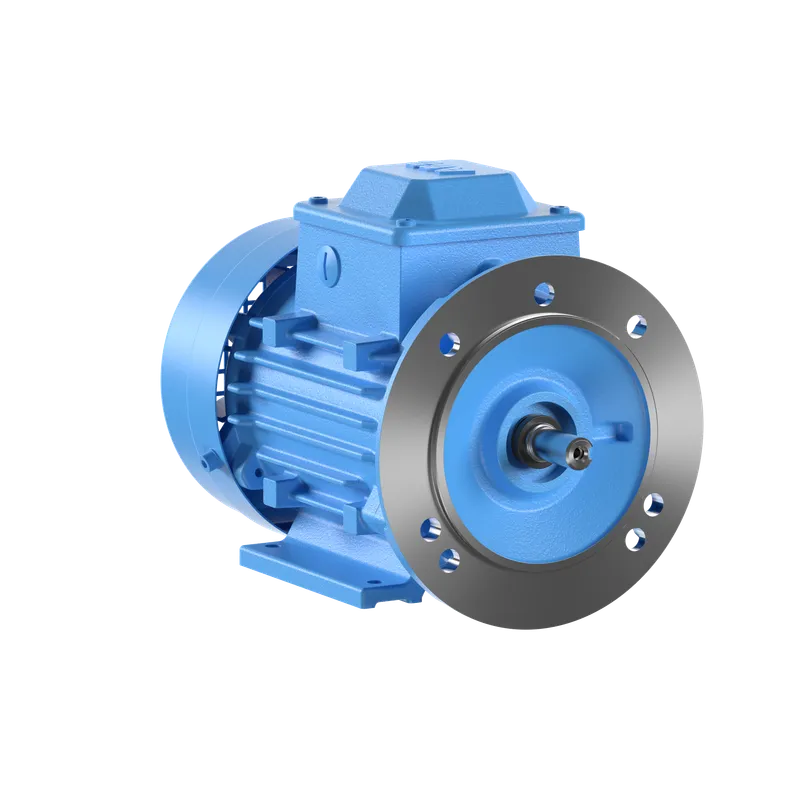

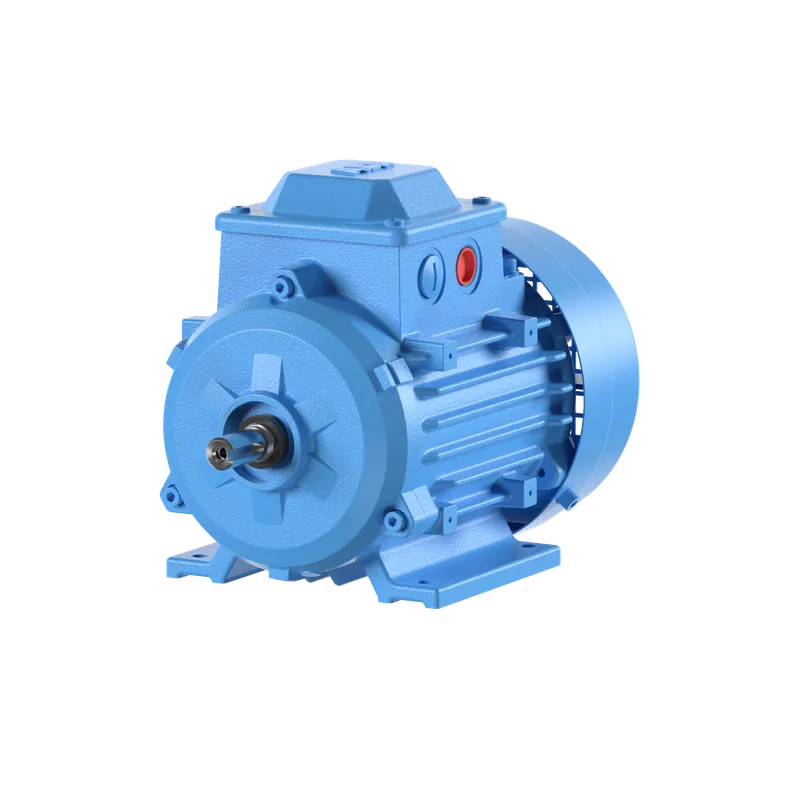

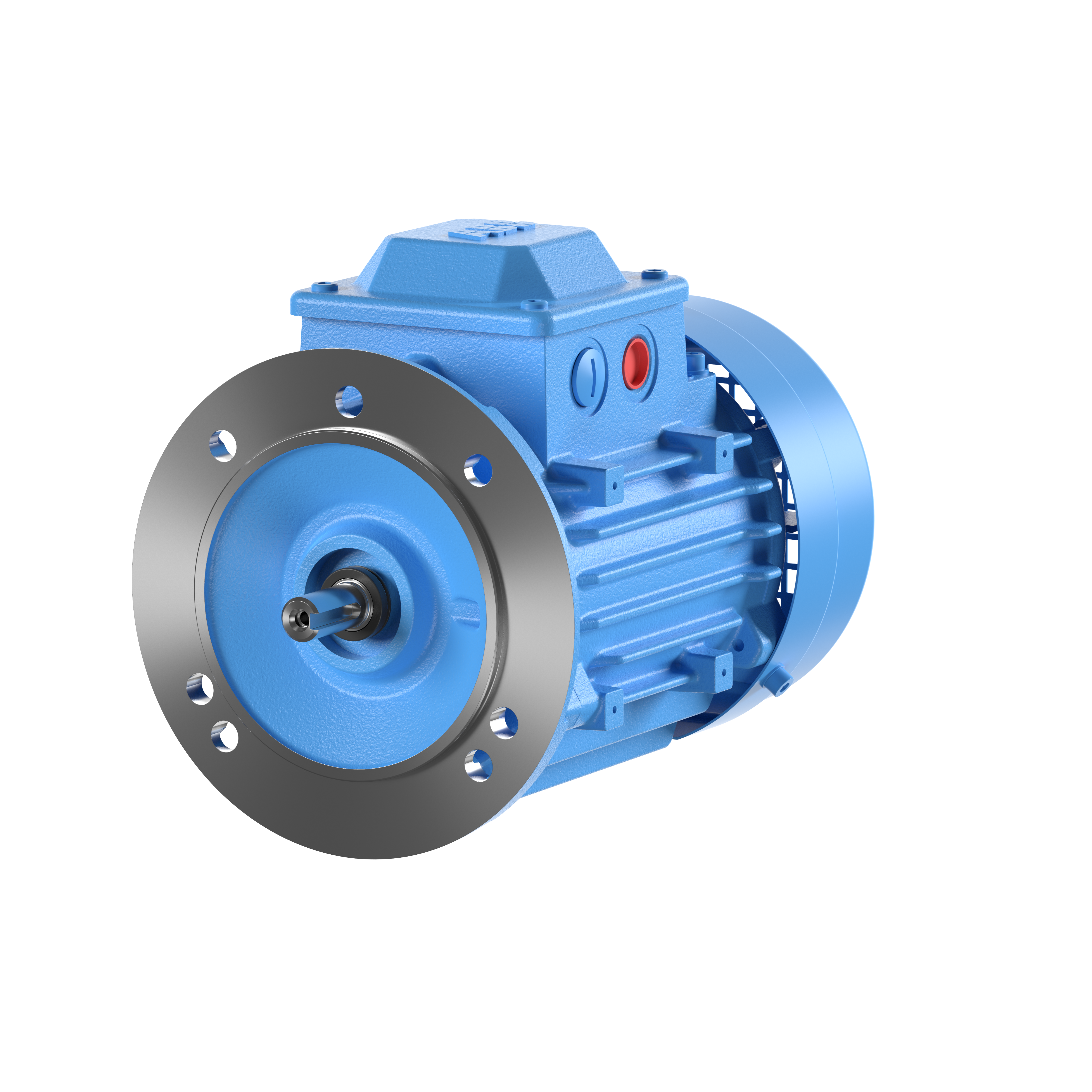

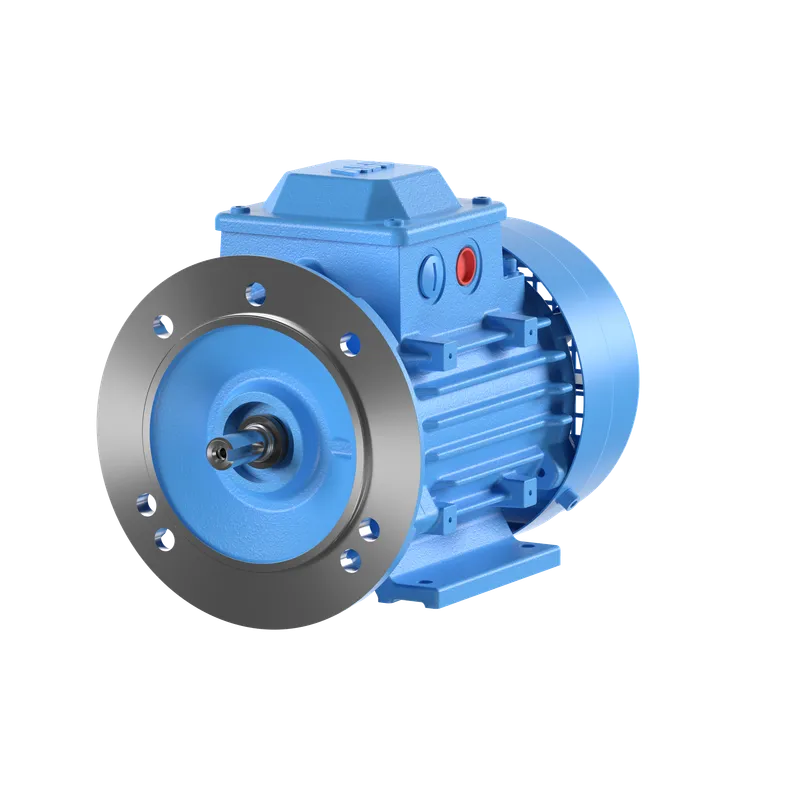

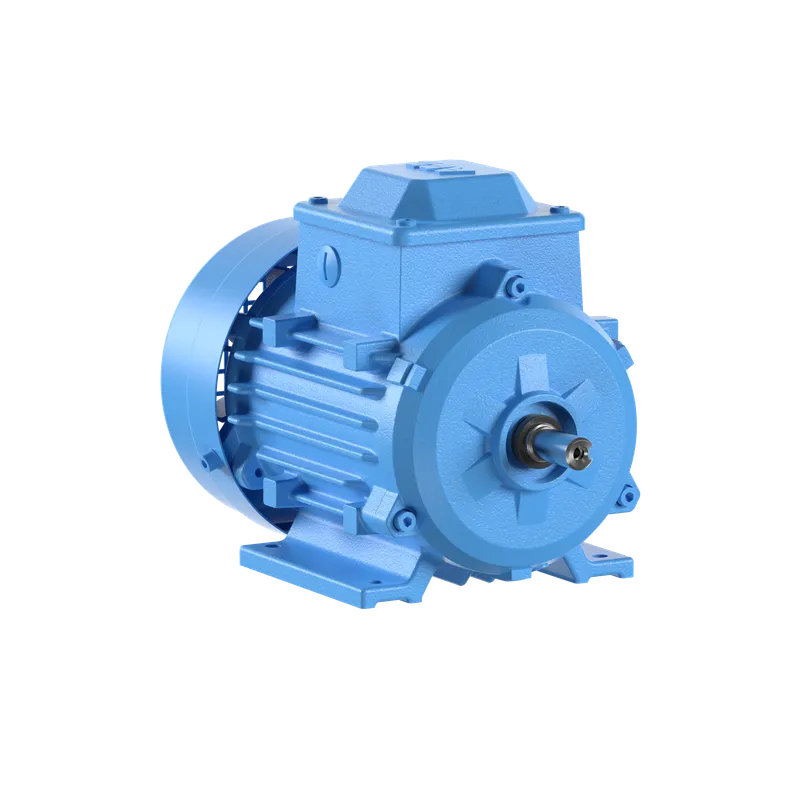

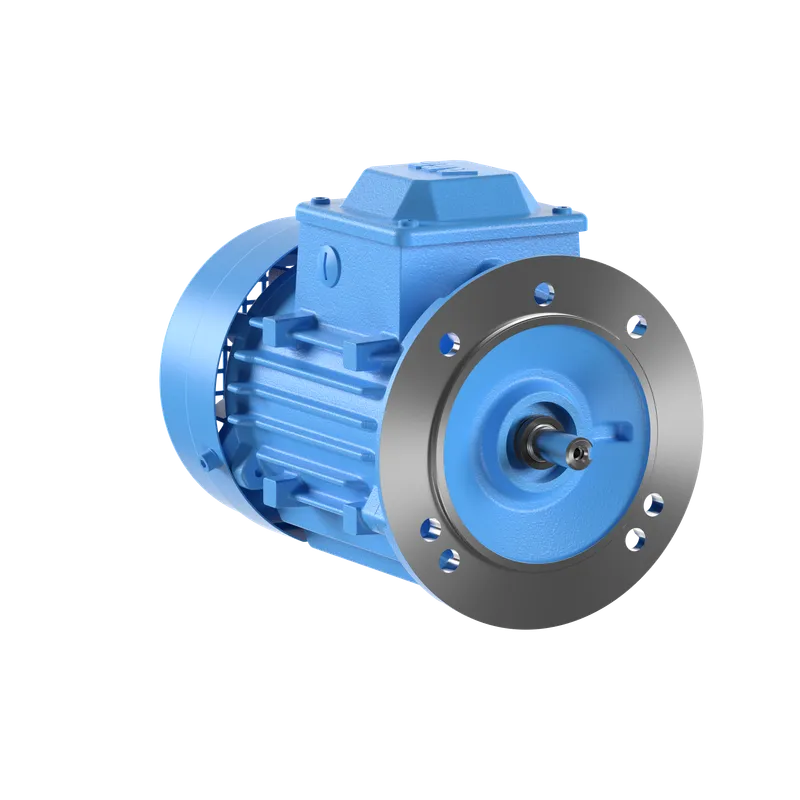

M2BAX 90SLA 2

MPN: 3GBA091010-BSDCN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA091010-BSDCN?

(3GBA091010-BSDCN)

Specifications

Ordering

ABB Type Designation	M2BAX 90SLA 2
Invoice Description	M2BAX90SLA2
Product Name	3-Phase squirrel cage motor
Product Type	CBA3__M2BAX_CI
Country or Territory of Origin	China
Customs Tariff Number	85015100
Stocked At (Warehouses)	Shanghai, China
Medium Description	?kW, 2P, Frame Size 90, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA091010-BSDCN) kW
Short Description	?kW, 2P, Frame Size 90, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 85.9 %, Partial Load (75%) 85.6 %, Partial Load (50%) 83.9 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 85.7 %, Partial Load (75%) 85.3 %, Partial Load (50%) 83.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	90
Bearing	6205-2Z/C3
Bearing NDE	6205-2Z/C3
Lubrication	For life
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	25 kg kg
Gross Weight	28 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

Standards	IEC 60034-1
UNSPSC	26101100
