ABB 3GBA083410-BSDIN

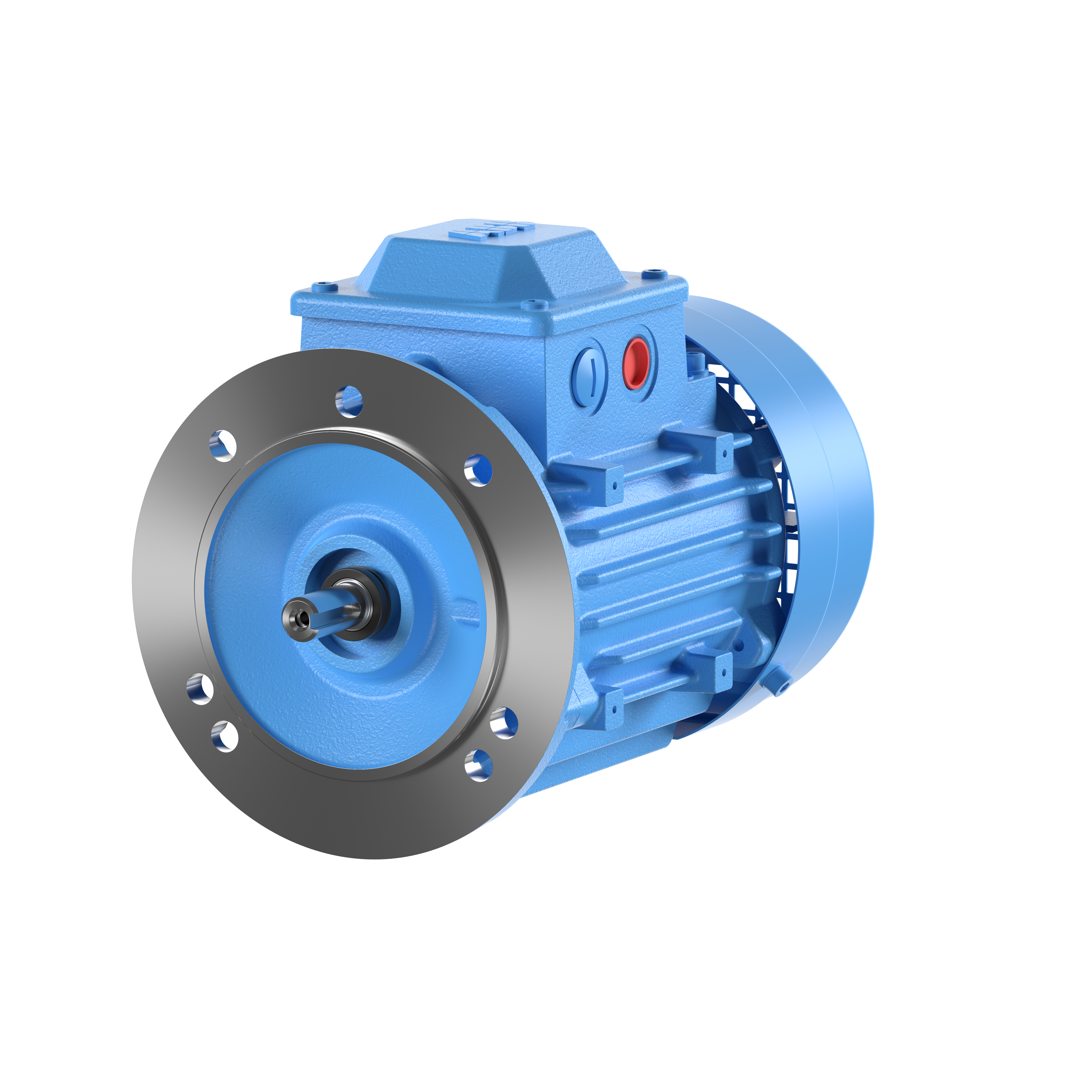

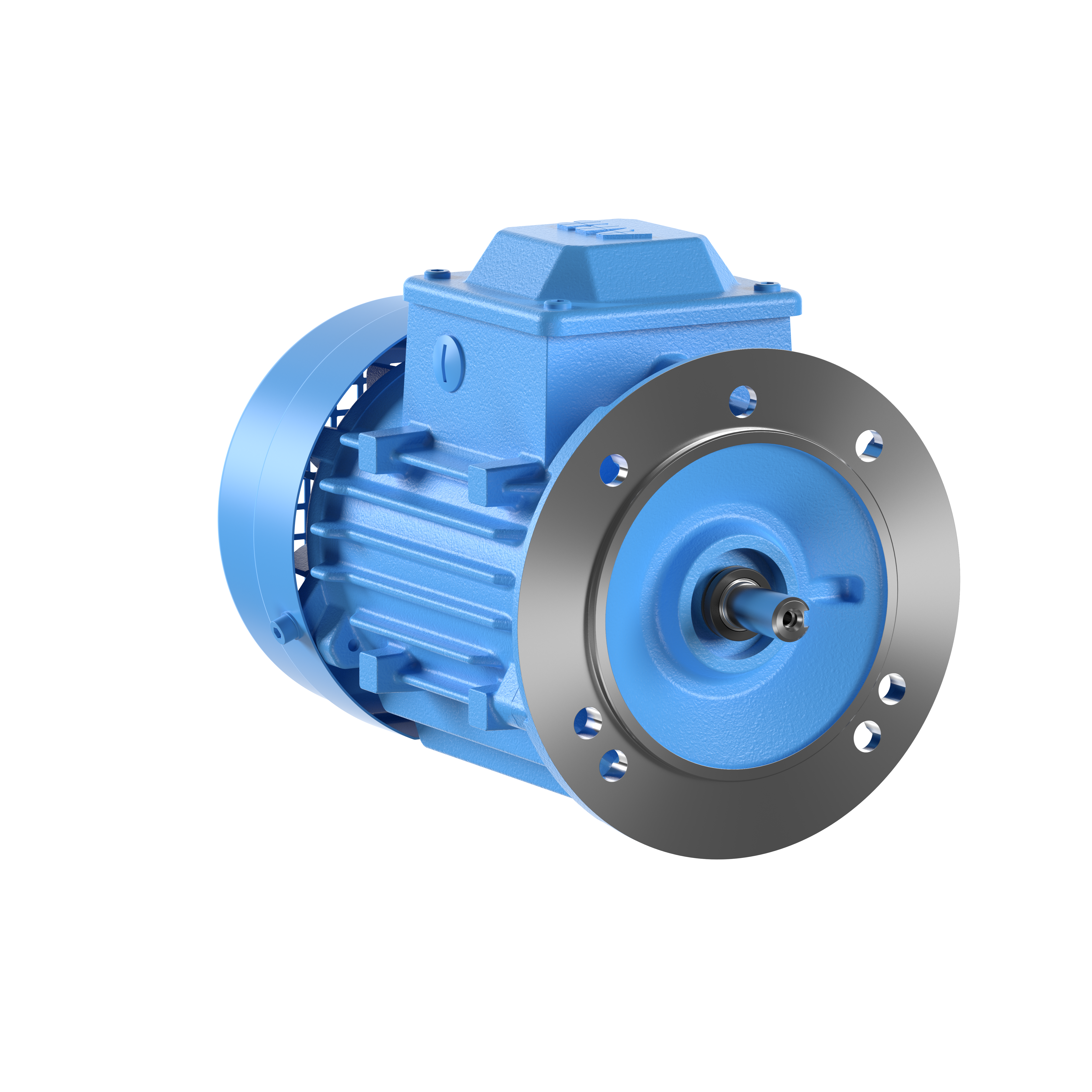

M2BAX 80MLA 6

MPN: 3GBA083410-BSDIN
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA083410-BSDIN?

IE3 (BIS) Premium Efficiency Cast Iron Motors, 0.55 kW, 415 V (3GBA083410-BSDIN)

Specifications

Ordering

ABB Type Designation	M2BAX 80MLA 6
Invoice Description	M2BAX 80MLA 6
Product Name	3-Phase squirrel cage motor
Product Type	IBA3__M2BAX_IE3_CI
Country or Territory of Origin	India
Customs Tariff Number	85015100
Medium Description	0.55kW, 6 Poles, Frame Size 80, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA083410-BSDIN)
Short Description	0.55kW, 6P, Frame Size 80, 3PH, 415V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	415 V V
Frequency (f)	50 Hz Hz
Output Power	0.55 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 77.2 %, Partial Load (75%) 77.0 %, Partial Load (50%) 71.5 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S

Mechanical

Frame Material	Cast Iron
Frame Size	80
Bearing	6204-2Z/C3
Bearing NDE	6203-2Z/C3
IM Class	IMB5 IM3001
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	334 mm mm
Product Net Height	212 mm mm
Product Net Width	200 mm mm
Product Net Weight	18 kg kg
Gross Weight	21 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100

3GBA083410-BSDIN: frequently asked questions

When can 3GBA083410-BSDIN be shipped?

3GBA083410-BSDIN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBA083410-BSDIN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBA083410-BSDIN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA083410-BSDIN, subject to availability and destination.
