ABB 3GBA082310-CDC

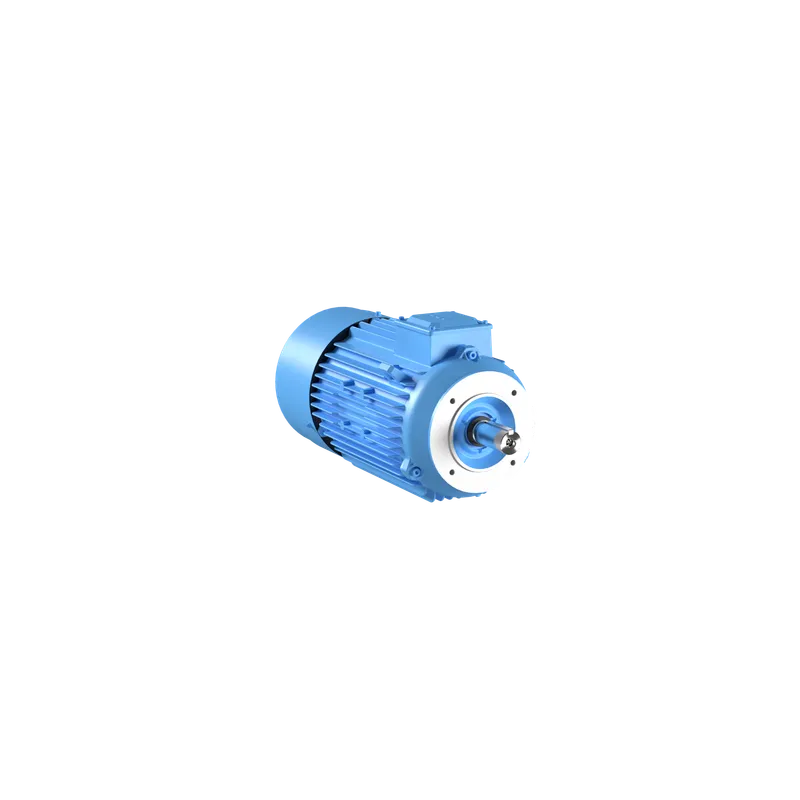

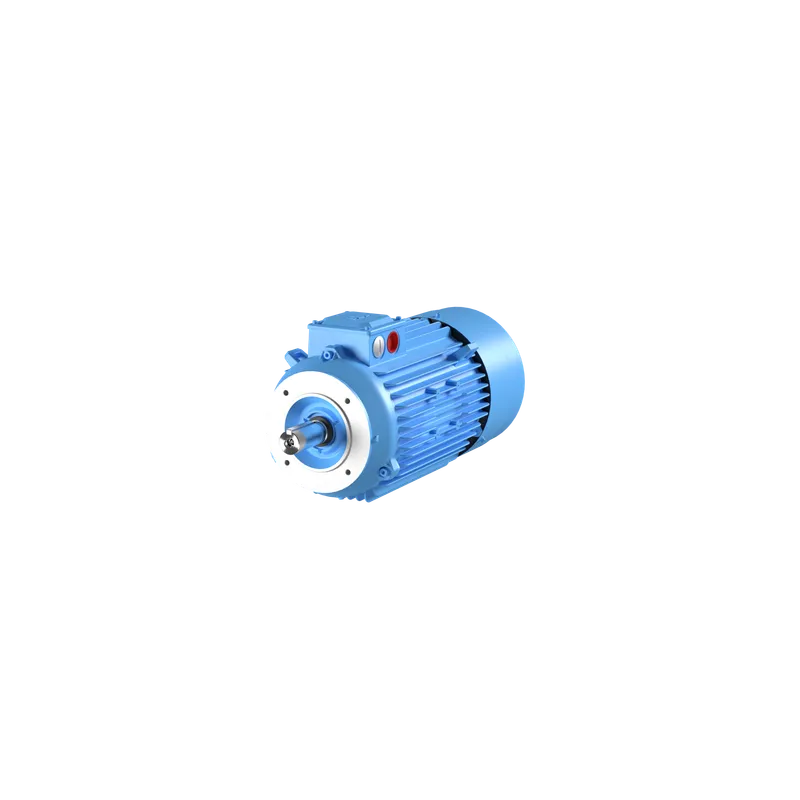

M2BAX 80MA 4

MPN: 3GBA082310-CDC
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA082310-CDC?

IE2 High Efficiency Cast Iron Motors, 0.55 kW, 400 V (3GBA082310-CDC)

Specifications

Ordering

ABB Type Designation	M2BAX 80MA 4
Invoice Description	M2BAX 80MA 4
Product Name	3-Phase squirrel cage motor
Product Type	EBA2__M2BAX_CI
Country or Territory of Origin	Poland
Customs Tariff Number	85015100
Medium Description	0.55kW, 4 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GBA082310-CDC)
Short Description	0.55kW, 4P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB14/IM3601

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	0.55 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 77.1 %, Partial Load (75%) 77.4 %, Partial Load (50%) 74.9 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 75.5 %, Partial Load (75%) 74.7 %, Partial Load (50%) 70.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	80
Bearing	6204-2Z/C3
Bearing NDE	6203-2Z/C3
IM Class	IMB14 IM3601
Terminator Box Location	D-End top

Dimensions

Product Net Depth / Length	309 mm mm
Product Net Height	192 mm mm
Product Net Width	164 mm mm
Product Net Weight	15 kg kg
Gross Weight	18 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC

26101100
