ABB 3GBA072320-CSC

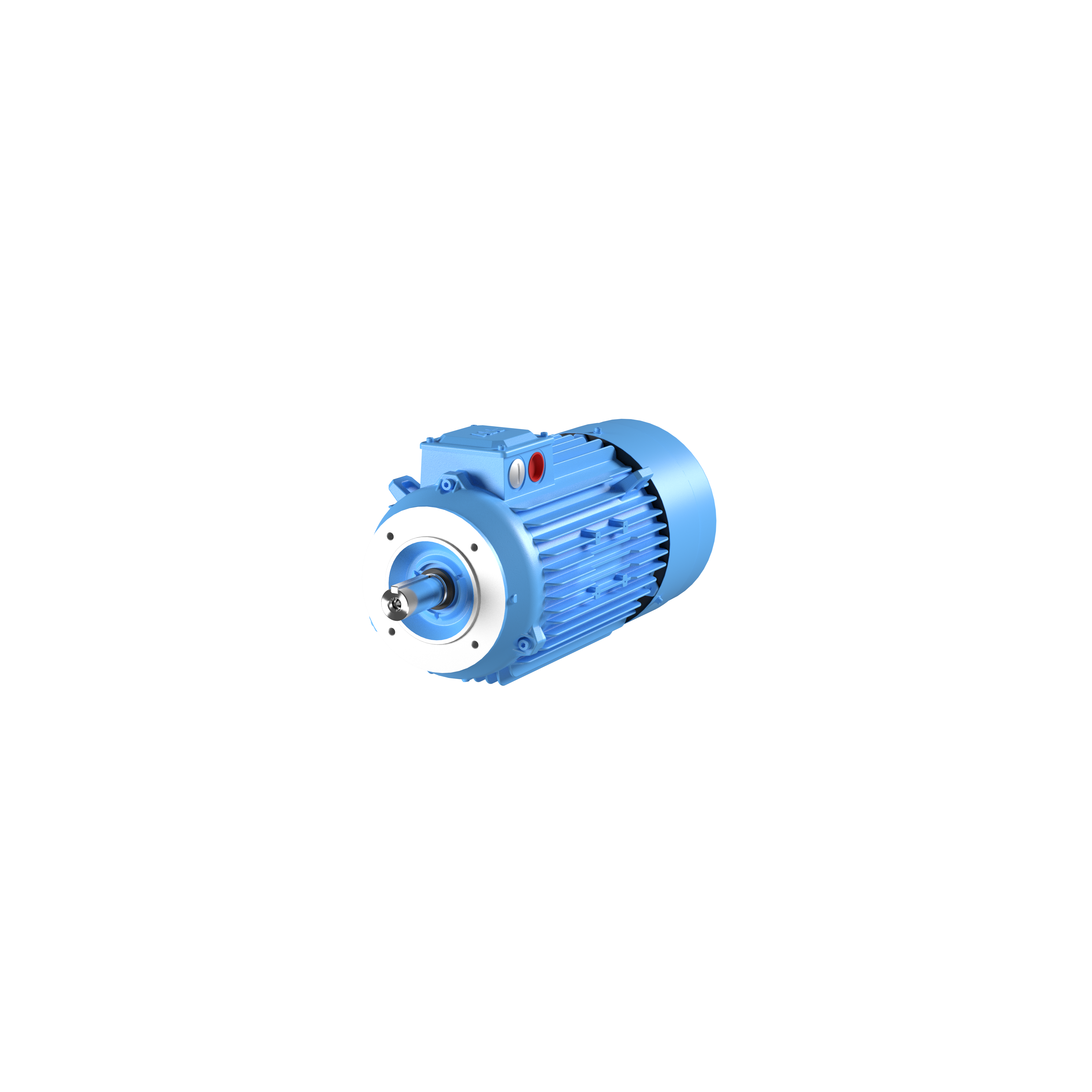

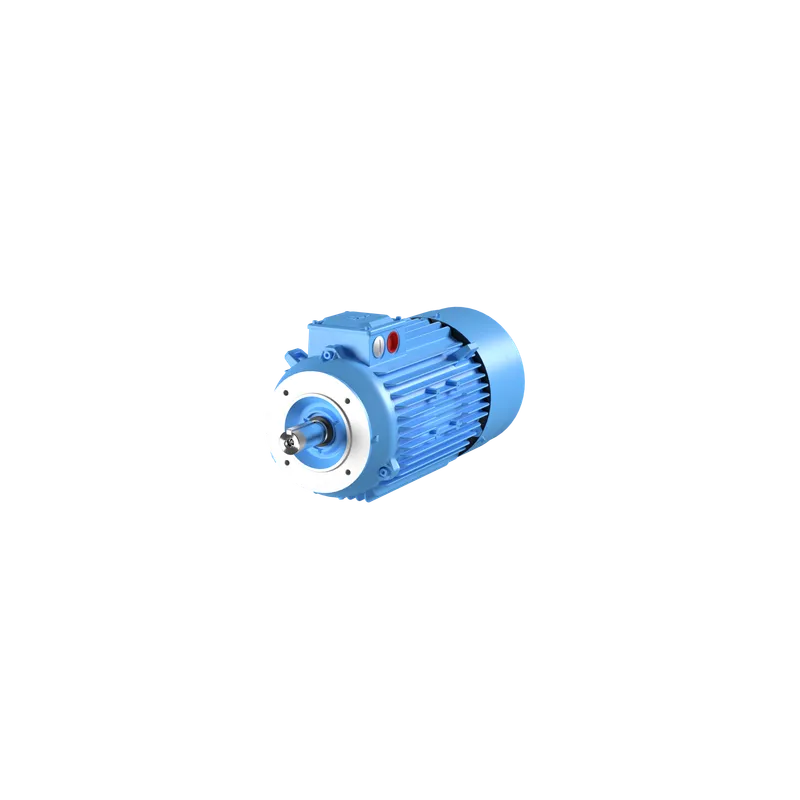

M2BAX 71MB 4
- MPN
- 3GBA072320-CSC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GBA072320-CSC?
IE2 High Efficiency Cast Iron Motors, 0.37 kW, 400 V (3GBA072320-CSC)
Specifications
Ordering
| ABB Type Designation | M2BAX 71MB 4 |
| Invoice Description | M2BAX 71MB4 |
| Product Name | 3 Phase |
| Product Type | EBA2__M2BAX_CI |
| Country or Territory of Origin | China |
| Customs Tariff Number | 85015100 |
| Replaced Product ID (OLD) | 3GBA072212-CSB |
| Medium Description | 0.37kW, 4 Poles, Frame Size 71, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GBA072320-CSC) |
| Short Description | 0.37kW, 4P, Frame Size 71, 3PH, 400V, 50Hz, IP55, IMB14/IM3601 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 400 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 0.37 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE2, Full Load (100%) 72.7 %, Partial Load (75%) 72.3 %, Partial Load (50%) 67.6 % |
| IE Class Data (60 Hz) | IE Class IE2, Full Load (100%) 72.0 %, Partial Load (75%) 70.0 %, Partial Load (50%) 63.6 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Material | Cast Iron |
| Frame Size | 71 |
| Bearing | 6203-2Z/C3 |
| Bearing NDE | 6202-2Z/C3 |
| IM Class | IMB14 IM3601 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 257 mm mm |
| Product Net Height | 175 mm mm |
| Product Net Width | 147 mm mm |
| Product Net Weight | 10 kg kg |
| Gross Weight | 13 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
| SCIP | d19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland |
External Classifications and Standards
| Standards | IEC 60034-1 |
| UNSPSC | 26101100 |
