ABB 3GBA072320-ADT

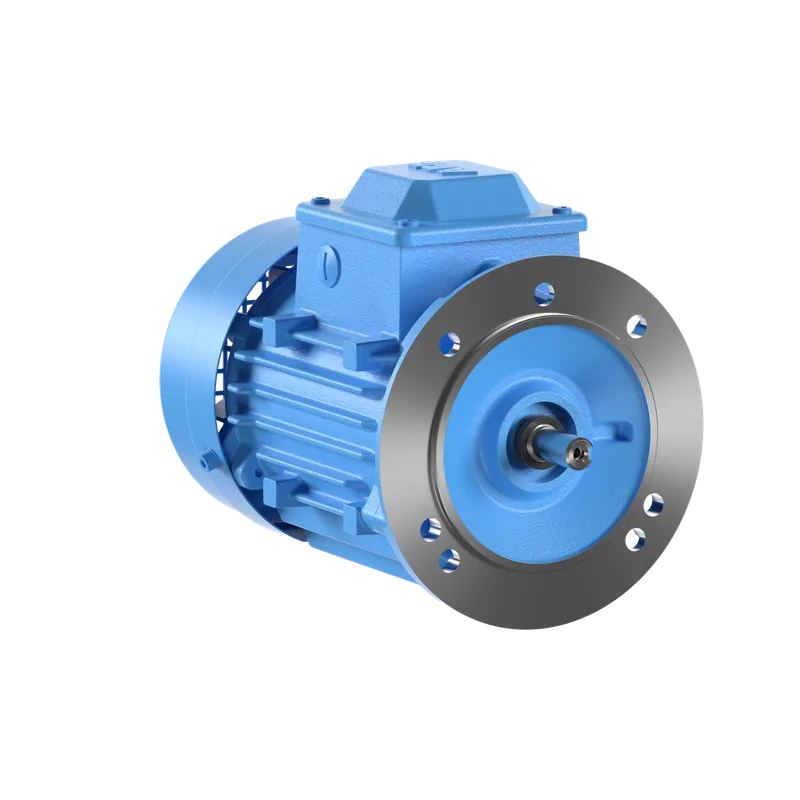

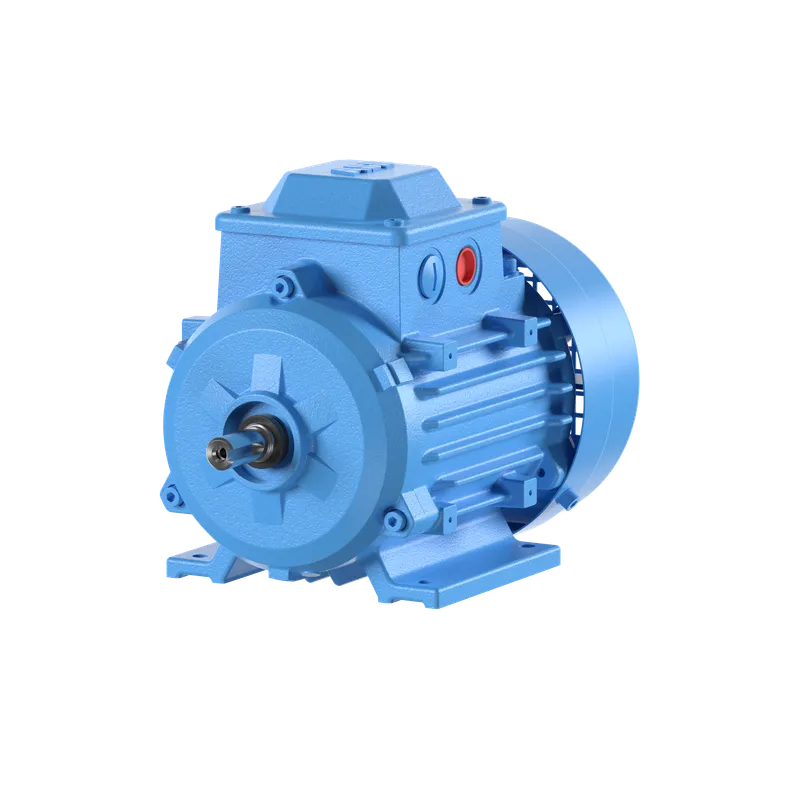

M2BAX 71MB 4

MPN: 3GBA072320-ADT
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GBA072320-ADT?

M2BAX 71MB 4

Specifications

Ordering

ABB Type Designation	M2BAX 71MB 4
Invoice Description	M2BAX 71MB 4
Product Name	3-Phase squirrel cage motor
Product Type	EBA1__M2BAX_CI
Country or Territory of Origin	China
Customs Tariff Number	85015100
Medium Description	?kW, 4P, Frame Size 71, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA072320-ADT) kW
Short Description	?kW, 4P, Frame Size 71, 3PH, 400V, ?Hz, IP55, IMB3/IM1001 kW

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE1, Full Load (100%) 66.0 %, Partial Load (75%) 63.2 %, Partial Load (50%) 56.4 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 70.0 %, Partial Load (75%) 65.7 %, Partial Load (50%) 58.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Cast Iron
Frame Size	71
Bearing	6203-2Z/C3
Bearing NDE	6202-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	10 kg kg
Gross Weight	13 kg kg

Environmental

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC

26101100
