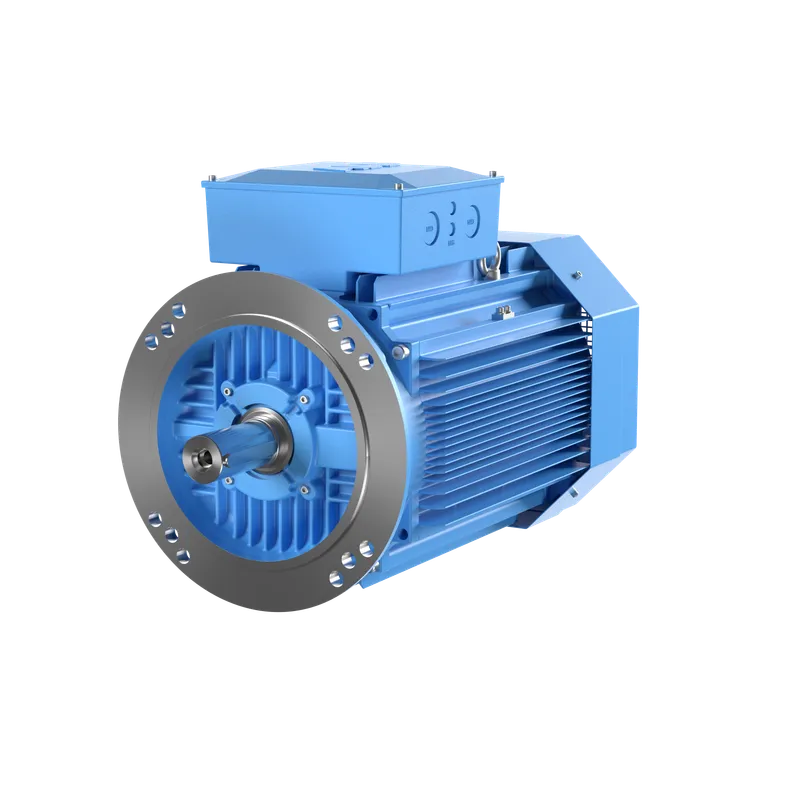

ABB 3GAA209421-BDG
M3AA 200MLB 2/4
- MPN
- 3GAA209421-BDG
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GAA209421-BDG?
IE2 High Efficiency Aluminum Motors, 16/30 kW, 400 V (3GAA209421-BDG)
Specifications
Ordering
| ABB Type Designation | M3AA 200MLB 2/4 |
| Invoice Description | M3AA 200MLB 2/4 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA2__M3AA_IE2_AA |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015230 |
| Medium Description | 16/30kW, 2/4 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GAA209421-BDG) |
| Short Description | 16/30kW, 6/8P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB5/IM3001 |
Electrical
| Connection Configuration | Y/D |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 400 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 16/30 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class NA, Full Load (100%) 88.9 %, Partial Load (75%) 90.8 %, Partial Load (50%) 91.1 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 2 |
| Two Speed Motor | Yes |
| Type of Duty | S1 |
| Voltage Code | D |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 200 |
| Bearing | 6312-2Z/C3 |
| Bearing NDE | 6210-2Z/C3 |
| IM Class | IMB5 IM3001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 821 mm mm |
| Product Net Height | 500 mm mm |
| Product Net Width | 385 mm mm |
| Product Net Weight | 235 kg kg |
| Gross Weight | 245 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
| SCIP | 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
3GAA209421-BDG: frequently asked questions
When can 3GAA209421-BDG be shipped?
3GAA209421-BDG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GAA209421-BDG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GAA209421-BDG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA209421-BDG, subject to availability and destination.
