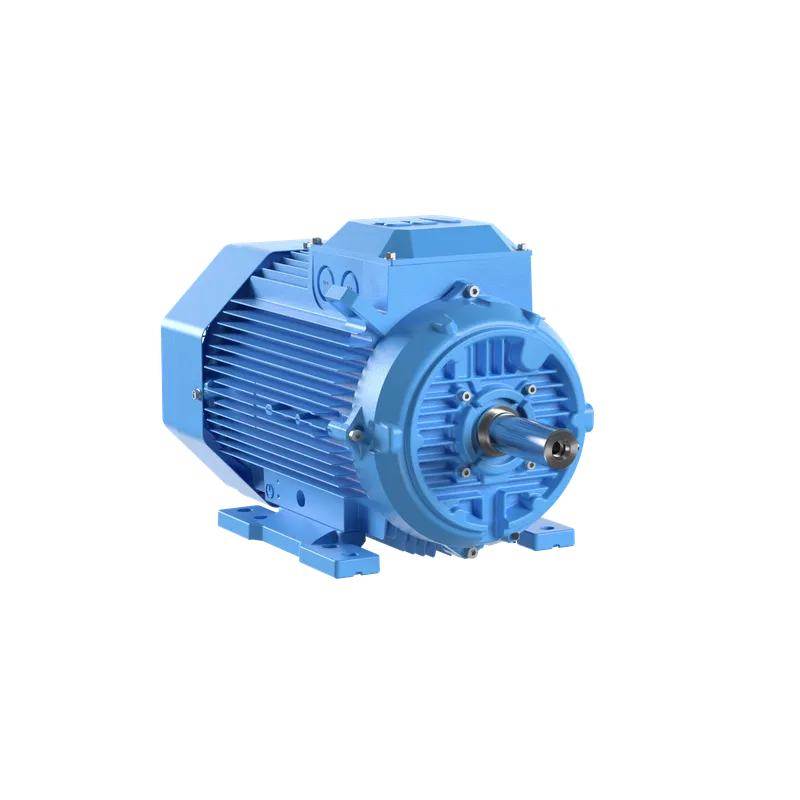

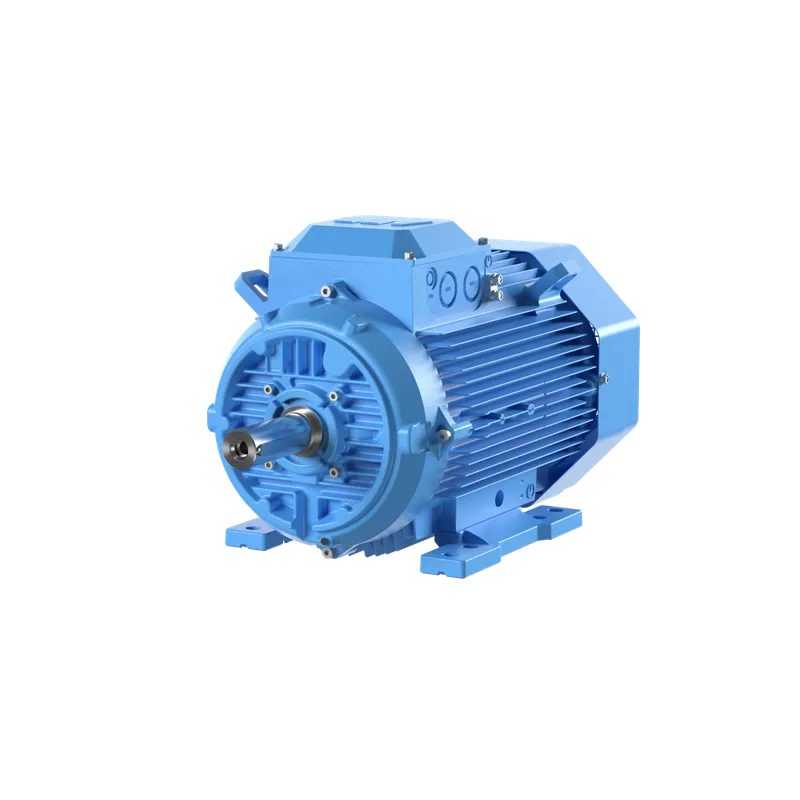

ABB 3GAA183420-AEK
M3AA 180MLB 6
- MPN
- 3GAA183420-AEK
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 3GAA183420-AEK?
IE3 Premium Efficiency Aluminum Motors, 18.5 kW, 500 V (3GAA183420-AEK)
Specifications
Ordering
| ABB Type Designation | M3AA 180MLB 6 |
| Invoice Description | M3AA 180MLB 6 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA3__M3AA_IE3_AA |
| Country or Territory of Origin | Finland, Poland |
| Customs Tariff Number | 85015230 |
| Replaced Product ID (OLD) | 3GAA183054-AEK |
| Medium Description | 18.5kW, 6 Poles, Frame Size 180, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA183420-AEK) |
| Short Description | 18.5kW, 6P, Frame Size 180, 3PH, 500V, 50Hz, IP55, IMB3/IM1001 |
Electrical
| Connection Configuration | D |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 500 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 18.5 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE3, Full Load (100%) 91.7 %, Partial Load (75%) 92.0 %, Partial Load (50%) 91.5 % |
| IE Class Data (60 Hz) | IE Class IE3, Full Load (100%) 93.0 %, Partial Load (75%) 93.0 %, Partial Load (50%) 92.1 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 6 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | E |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 180 |
| Bearing | 6310-2Z/C3 |
| Bearing NDE | 6209-2Z/C3 |
| IM Class | IMB3 IM1001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 726 mm mm |
| Product Net Height | 405 mm mm |
| Product Net Width | 341 mm mm |
| Product Net Weight | 168 kg kg |
| Gross Weight | 178 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
| SCIP | 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
3GAA183420-AEK: frequently asked questions
When can 3GAA183420-AEK be shipped?
3GAA183420-AEK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GAA183420-AEK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GAA183420-AEK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA183420-AEK, subject to availability and destination.
