Home / ABB / Flameproof IEC Low voltage motors / ABB 3GAA138330-ADB

ABB

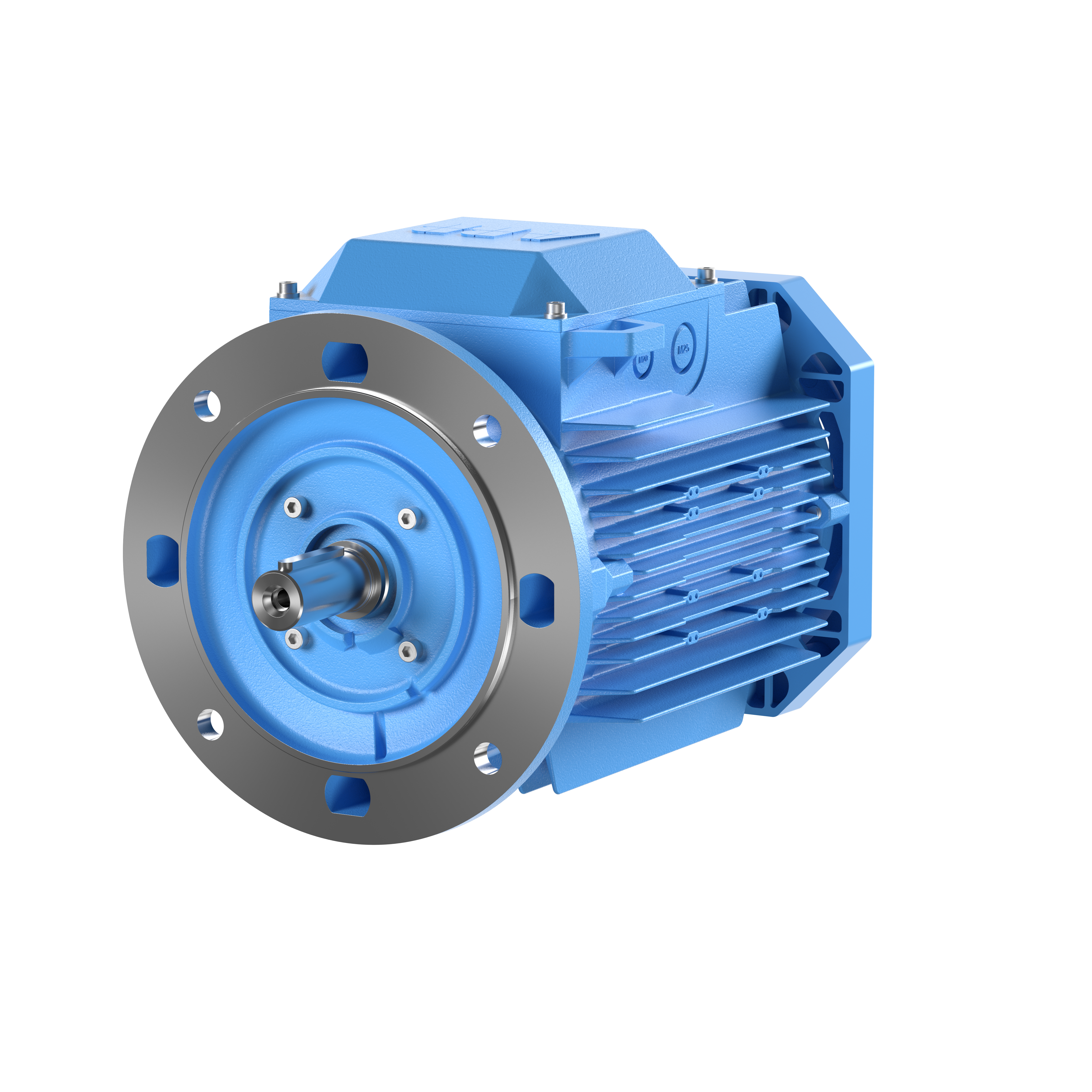

ABB 3GAA138330-ADB

MPN: 3GAA138330-ADB
Category: Flameproof IEC Low voltage motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB 3GAA138330-ADB?

(3GAA138330-ADB)

Specifications

Ordering

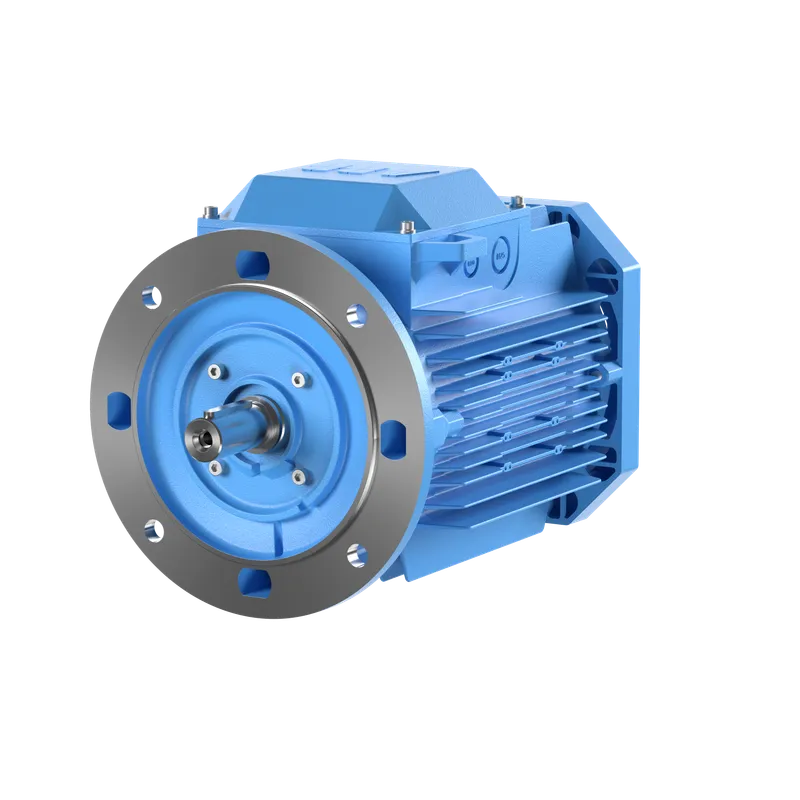

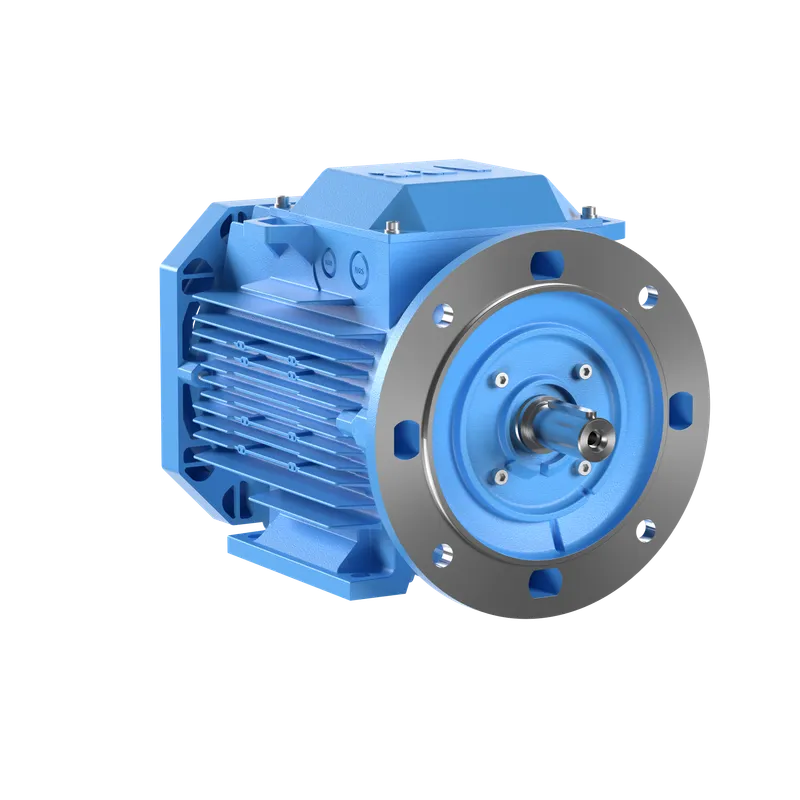

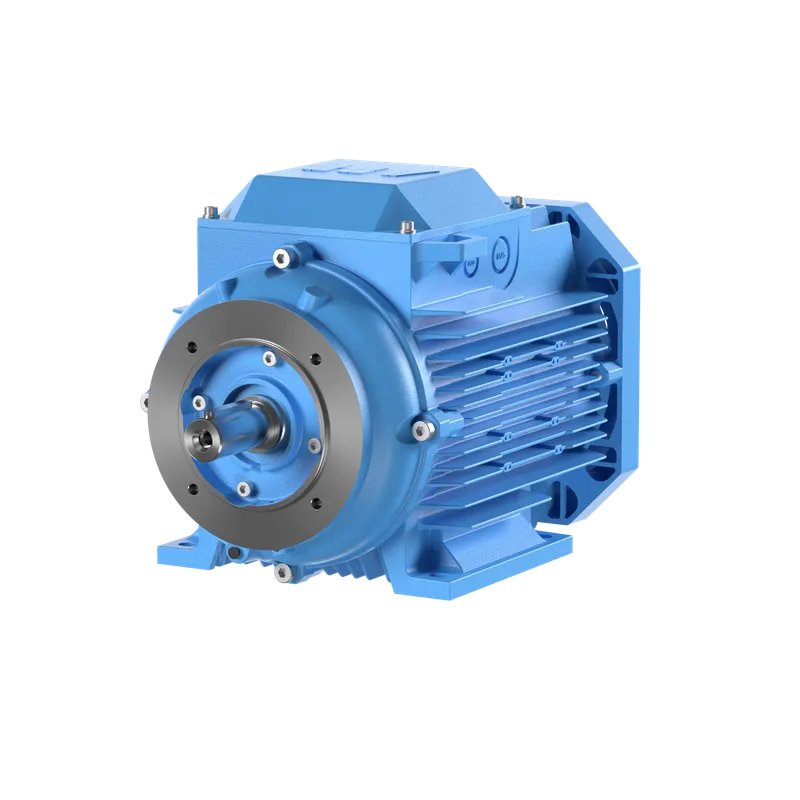

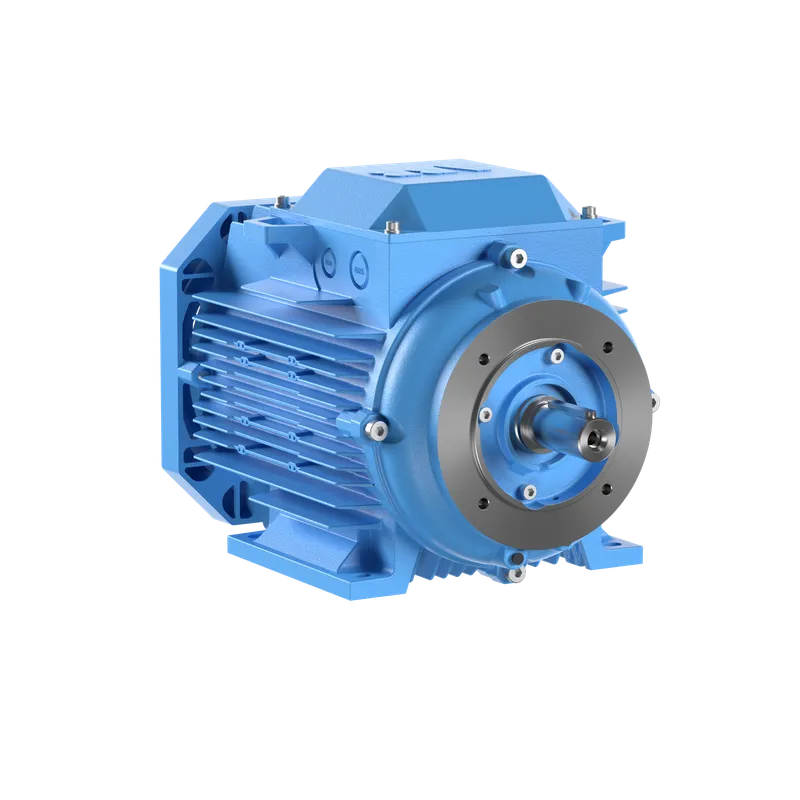

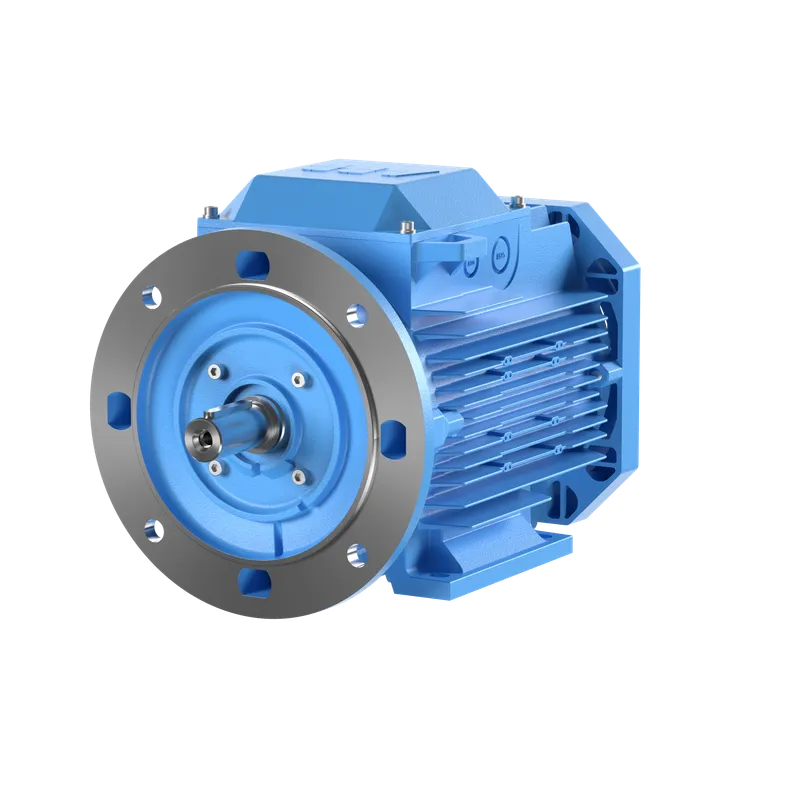

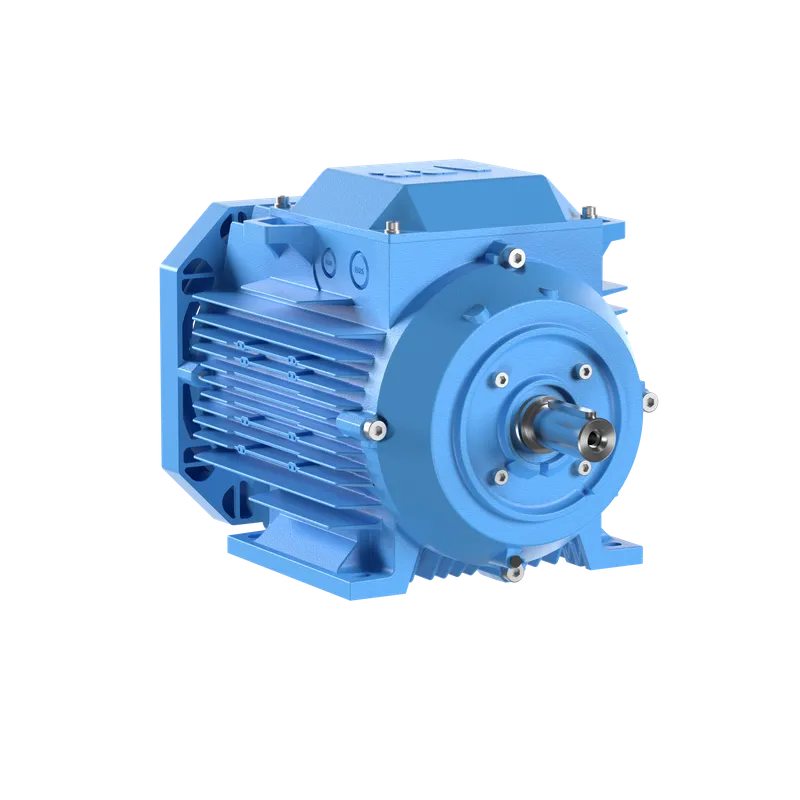

ABB Type Designation	M3AA 132MC 6-12
Invoice Description	M3AA 132MC 6-12
Product Name	3-Phase squirrel cage motor
Product Type	3AA2__M3AA_IE2_AA
Country or Territory of Origin	Finland
Customs Tariff Number	85015100

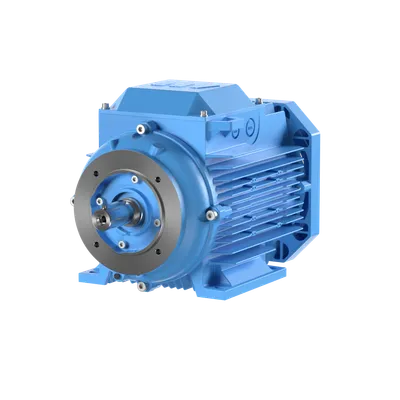

Replaced Product ID (OLD)	3GAA138333-ADB
Stocked At (Warehouses)	Sant Quirze del Vallés - BCN, Spain

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 65.0 %, Partial Load (75%) 60.6 %, Partial Load (50%) 45.5 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	Yes
Type of Duty	S1
Voltage Code	D

Mechanical

Frame Material	Aluminum
Frame Size	132
Bearing	6208-2Z/C3
Bearing NDE	6208-2Z/C3
IM Class	IMB3 IM1001
Terminator Box Location	D-End top

Dimensions

Product Net Weight	59 kg kg
Gross Weight	64 kg kg

Environmental

WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP	27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

UNSPSC

26101100

3GAA138330-ADB: frequently asked questions

When can 3GAA138330-ADB be shipped?

3GAA138330-ADB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GAA138330-ADB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GAA138330-ADB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA138330-ADB, subject to availability and destination.
